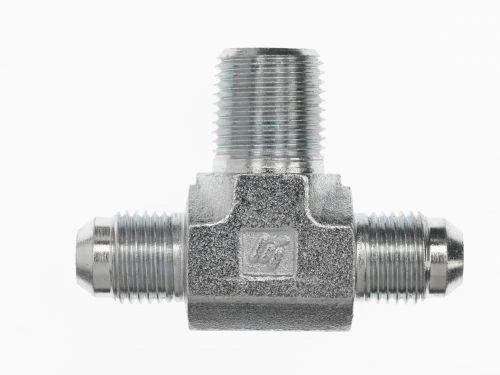

2601-08-08-06-SS By Brennan Inc. | -08 Male JIC X -08 Male JIC X -06 Male Pipe | Tee | Stainless Steel

Original price was: $116.23.Current price is: $81.36.

SKU: AG9ZZ 8669771759781 Categories: Adapters, Adapters & More Tags: 2601 Male JIC x Male JIC x Male Pipe Tee, Brennan Adapters, Collection-lvl1_All Hose Ends, Collection-lvl2_Adapters and More, Collection-lvl3_Hydraulic Adapters, Created in 2024, Male JIC Adapters, Male Pipe Adapters, Matrixify3rd50kProducts, Stainless Steel Adapters, Tee Adapters

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)


Part Number	Material	Tube O.D.	B1 SAE 37°	B2 SAE 37°	A3 NPTF	B1 Drill	B2 Drill	A3 Drill	M1 Length	M2 Length	L Length	Y Flats
2601-03-03-02-FG	Forged Steel	3/16″	3/8-24″	3/8-24″	1/8-27″	0.125″	0.125″	0.188″	0.830″	0.830″	0.720″	0.438″
2601-04-04-02-FG	Forged Steel	1/4″	7/16-20″	7/16-20″	1/8-27″	0.172″	0.172″	0.188″	0.890″	0.890″	0.780″	0.438″
2601-04-04-04-FG	Forged Steel	1/4″	7/16-20″	7/16-20″	1/4-18″	0.172″	0.172″	0.281″	1.050″	1.050″	1.090″	0.562″
2601-04-04-06-FG	Forged Steel	1/4″	7/16-20″	7/16-20″	3/8-18″	0.172″	0.172″	0.406″	1.120″	1.120″	1.220″	0.750″
2601-05-05-02-FG	Forged Steel	5/16″	1/2-20″	1/2-20″	1/8-27″	0.234″	0.234″	0.188″	0.950″	0.950″	0.780″	0.562″
2601-05-05-04-FG	Forged Steel	5/16″	1/2-20″	1/2-20″	1/4-18″	0.234″	0.234″	0.281″	1.050″	1.050″	1.090″	0.562″
2601-06-06-02-FG	Forged Steel	3/8″	9/16-18″	9/16-18″	1/8-27″	0.297″	0.297″	0.188″	1.060″	1.060″	0.900″	0.562″
2601-06-06-04-FG	Forged Steel	3/8″	9/16-18″	9/16-18″	1/4-18″	0.297″	0.297″	0.281″	1.060″	1.060″	1.090″	0.562″
2601-06-06-06-FG	Forged Steel	3/8″	9/16-18″	9/16-18″	3/8-18″	0.297″	0.297″	0.406″	1.140″	1.140″	1.220″	0.750″
2601-06-06-08-FG	Forged Steel	3/8″	9/16-18″	9/16-18″	1/2-14″	0.297″	0.297″	0.531″	1.220″	1.220″	1.470″	0.875″
2601-08-08-04-FG	Forged Steel	1/2″	3/4-16″	3/4-16″	1/4-18″	0.391″	0.391″	0.281″	1.250″	1.250″	1.220″	0.750″
2601-08-08-06-FG	Forged Steel	1/2″	3/4-16″	3/4-16″	3/8-18″	0.391″	0.391″	0.406″	1.250″	1.250″	1.220″	0.750″
2601-08-08-08-FG	Forged Steel	1/2″	3/4-16″	3/4-16″	1/2-14″	0.391″	0.391″	0.531″	1.330″	1.330″	1.470″	0.875″
2601-08-08-12-FG	Forged Steel	1/2″	3/4-16″	3/4-16″	3/4-14″	0.391″	0.391″	0.719″	1.420″	1.420″	1.590″	1.062″
2601-10-10-06-FG	Forged Steel	5/8″	7/8-14″	7/8-14″	3/8-18″	0.484″	0.484″	0.406″	1.450″	1.450″	1.280″	0.875″
2601-10-10-08-FG	Forged Steel	5/8″	7/8-14″	7/8-14″	1/2-14″	0.484″	0.484″	0.531″	1.450″	1.450″	1.470″	0.875″
2601-10-10-12-FG	Forged Steel	5/8″	7/8-14″	7/8-14″	3/4-14″	0.484″	0.484″	0.719″	1.540″	1.540″	1.590″	1.062″
2601-12-12-08-FG	Forged Steel	3/4″	1-1/16-12″	1-1/16-12″	1/2-14″	0.609″	0.609″	0.531″	1.660″	1.660″	1.590″	1.062″
2601-12-12-12-FG	Forged Steel	3/4″	1-1/16-12″	1-1/16-12″	3/4-14″	0.609″	0.609″	0.719″	1.660″	1.660″	1.590″	1.062″
2601-12-12-16-FG	Forged Steel	3/4″	1-1/16-12″	1-1/16-12″	1-11-1/2″	0.609″	0.609″	0.938″	1.760″	1.760″	1.970″	1.312″
2601-16-16-12-FG	Forged Steel	1″	1-5/16-12″	1-5/16-12″	3/4-14″	0.844″	0.844″	0.719″	1.810″	1.810″	1.78″	1.312″
2601-16-16-16-FG	Forged Steel	1″	1-5/16-12″	1-5/16-12″	1-11-1/2″	0.844″	0.844″	0.938″	1.810″	1.810″	1.970″	1.312″
2601-20-20-20-FG	Forged Steel	1-1/4″	1-5/8-12″	1-5/8-12″	1-1/4-11-1/2″	1.078″	1.078″	1.250″	2.060″	2.060″	2.380″	1.625″
2601-24-24-24-FG	Forged Steel	1-1/2″	1-7/8-12″	1-7/8-12″	1-1/2-11-1/2″	1.312″	1.312″	1.500″	2.330″	2.330″	2.640″	1.875″
2601-32-32-32-FG	Forged Steel	2″	2-1/2-12″	2-1/2-12″	2-11-1/2″	1.781″	1.781″	1.938″	3.060″	3.060″	3.000″	2.500″

2601-04-04-04-B	Brass	1/4″	7/16-20″	7/16-20″	1/4-18″	0.172″	0.172″	0.281″	1.050″	1.050″	1.090″	0.562″
2601-08-08-06-B	Brass	1/2″	3/4-16″	3/4-16″	3/8-18″	0.391″	0.391″	0.406″	1.250″	1.250″	1.220″	0.750″

2601-02-02-02-SS	Stainless Steel	1/8″	5/16-24″	5/16-24″	1/8-27″	0.062″	0.062″	0.188″	0.770″	0.770″	0.720″	0.438″
2601-03-03-02-SS	Stainless Steel	3/16″	3/8-24″	3/8-24″	1/8-27″	0.125″	0.125″	0.188″	0.830″	0.830″	0.720″	0.438″
2601-04-04-02-SS	Stainless Steel	1/4″	7/16-20″	7/16-20″	1/8-27″	0.172″	0.172″	0.188″	0.890″	0.890″	0.780″	0.438″
2601-04-04-04-SS	Stainless Steel	1/4″	7/16-20″	7/16-20″	1/4-18″	0.172″	0.172″	0.281″	1.050″	1.050″	1.090″	0.562″
2601-05-05-02-SS	Stainless Steel	5/16″	1/2-20″	1/2-20″	1/8-27″	0.234″	0.234″	0.188″	0.950″	0.950″	0.780″	0.562″
2601-05-05-04-SS	Stainless Steel	5/16″	1/2-20″	1/2-20″	1/4-18″	0.234″	0.234″	0.281″	1.050″	1.050″	1.090″	0.562″
2601-06-06-04-SS	Stainless Steel	3/8″	9/16-18″	9/16-18″	1/4-18″	0.297″	0.297″	0.281″	1.060″	1.060″	1.090″	0.562″
2601-06-06-06-SS	Stainless Steel	3/8″	9/16-18″	9/16-18″	3/8-18″	0.297″	0.297″	0.406″	1.140″	1.140″	1.220″	0.750″
2601-06-06-08-SS	Stainless Steel	3/8″	9/16-18″	9/16-18″	1/2-14″	0.297″	0.297″	0.531″	1.220″	1.220″	1.470″	0.875″
2601-08-08-06-SS	Stainless Steel	1/2″	3/4-16″	3/4-16″	3/8-18″	0.391″	0.391″	0.406″	1.250″	1.250″	1.220″	0.750″
2601-08-08-08-SS	Stainless Steel	1/2″	3/4-16″	3/4-16″	1/2-14″	0.391″	0.391″	0.531″	1.330″	1.330″	1.470″	0.875″
2601-10-10-08-SS	Stainless Steel	5/8″	7/8-14″	7/8-14″	1/2-14″	0.484″	0.484″	0.531″	1.450″	1.450″	1.470″	0.875″
2601-12-12-12-SS	Stainless Steel	3/4″	1-1/16-12″	1-1/16-12″	3/4-14″	0.609″	0.609″	0.719″	1.660″	1.660″	1.590″	1.062″
2601-16-16-16-SS	Stainless Steel	1″	1-5/16-12″	1-5/16-12″	1-11-1/2″	0.844″	0.844″	0.938″	1.810″	1.810″	1.970″	1.312″
2601-20-20-20-SS	Stainless Steel	1-1/4″	1-5/8-12″	1-5/8-12″	1-1/4-11-1/2″	1.078″	1.078″	1.250″	2.060″	2.060″	2.380″	1.625″
