Sale!

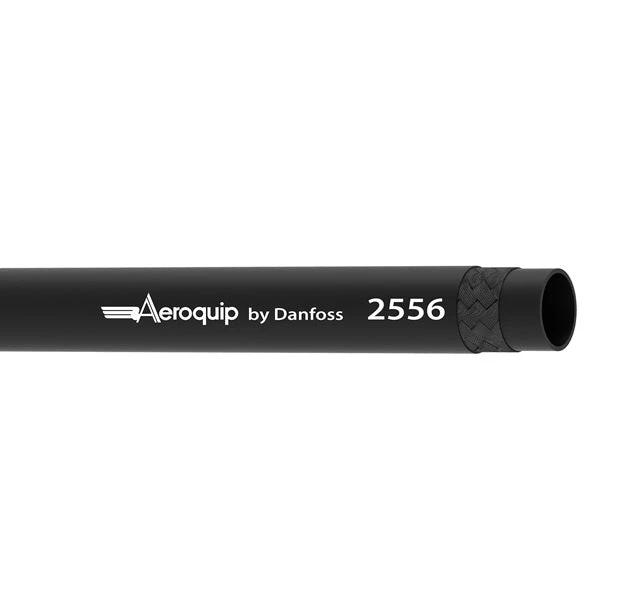

2556-12 Aeroquip By Danfoss | Low Pressure SOCKETLESS™ Hose | SAE 20R2 | 0.75″ ID

Original price was: $12.71.Current price is: $8.90.

Please choose from the options below

Clear

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Hose Properties:
Application:	For gasoline, fuel and lubricating oils, air and water Not recommended for hydraulic impulse applications and not approved for air brake applications.	SAE Rating:	Meets: SAE 20R2 Type 1,MIL-H-24136/3
Tube:	Synthetic Rubber	Cover:	Synthetic Rubber
Reinforcement:	Textile Braid	Temperature Range:	-40°F to +212°F (-40°C to +100°C) Water not to exceed +150°F (+66°C) Air not to exceed +71°F (+160°C)

Part Number	Hose ID			Hose OD		Max. Operating Pressure		Min. Burst Pressure		Min. Bend Radius		Vacuum Service		Weight
Part Number	DN	mm	in	mm	in	bar	psi	bar	psi	mm	in	kg/m	lbs/ft	ft	in/Hg
2556-4	6	6,4mm	0.25″	12,4mm	0.49″	25,0 bar	360 psi	99,0 bar	1440 psi	76,2mm	3.00″	94,8 kPa	28 in/Hg	0,12 kg/m	0.08 lbs/ft
2556-6	10	9,7mm	0.38″	15,7mm	0.62″	21,0 bar	300 psi	84,0 bar	1200 psi	76,2mm	3.00″	94,8 kPa	28 in/Hg	0,18 kg/m	0.12 lbs/ft
2556-8	13	12,7mm	0.50″	19,1mm	0.75″	21,0 bar	300 psi	84,0 bar	1200 psi	127,0mm	5.00″	94,8 kPa	28 in/Hg	0,24 kg/m	0.16 lbs/ft
2556-10	16	16,0mm	0.63″	23,1mm	0.91″	17,0 bar	250 psi	70,0 bar	1000 psi	152,4mm	6.00″	61,0 kPa	18 in/Hg	0,31 kg/m	0.21 lbs/ft
2556-12	19	19,1mm	0.75″	26,2mm	1.03″	17,0 bar	250 psi	70,0 bar	1000 psi	177,8mm	7.00″	61,0 kPa	18 in/Hg	0,37 kg/m	0.25 lbs/ft

Bulk / By the Foot: We sell Danfoss hose in “Bulk Length” unless otherwise specified in the title or option selector as “Exact Length”. When you buy “Bulk Length” hose you are agreeing to buy
multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you
need a single piece then you can select an “Exact Length” option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose
supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc.,
or any other entity. Consult current master catalog for additional warnings and cautions.
