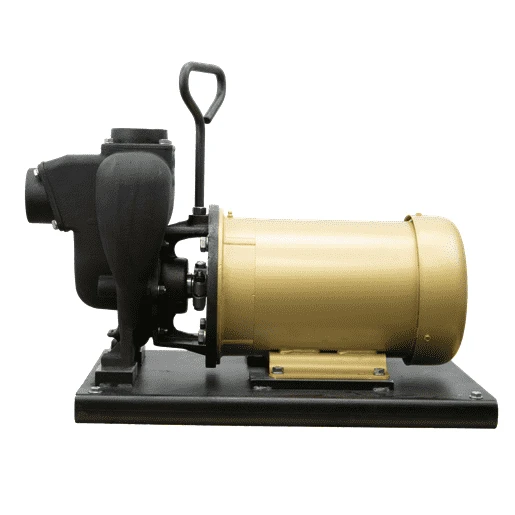

234PIE5 By Banjo | Centrifugal Pumps | 2" Cast Iron Pump With 5.0 HP Three Phase Electric Motor

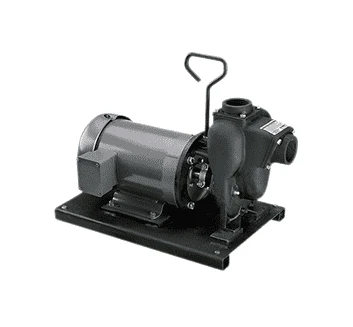

234PIE5 By Banjo | Centrifugal Pumps | 2" Cast Iron Pump With 5.0 HP Three Phase Electric Motor - Image 2

234PIE5 By Banjo | Centrifugal Pumps | 2″ Cast Iron Pump With 5.0 HP Three Phase Electric Motor

Original price was: $302.00.Current price is: $96.99.

SKU: AG9ZZ 1480691875876 Categories: Pumps, Tools & Equipment Tags: 2" Cast Iron Pumps with Electric Motors & Replacement Parts, 2" Cast Iron Pumps with Electric Motors Single Pumps, 2" Self-Priming Centrifugal Pumps, All-categories, Banjo Liquid Handling Products, Collection-lvl1_All Equipment, Collection-lvl2_Pumps, Collection-lvl3_Cast Iron Pumps, Industrial Hose Fittings, LegacyProductTypeReplacement_All Categories, Matrixify1st50kProducts, Pumps, Self-Priming Centrifugal Pumps

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

SPECIFICATIONS

Features:
Application:	Fluids, Agriculture, Industrial
Product Manual:	1-1/2 & 2″ Cast Iron & Stainless Steel Pump Instruction Manual	Video:	N/A
Replacement Parts:	Replacement Parts for 2″ Cast Iron Pumps with Electric Motors
Cast iron construction for rugged dependable service Stainless steel shaft sleeve to protect engine shaft Carbon ceramic seal with stainless steel cup and spring with FKM (viton type) rubber Replaceable inlet and outlet flanges Dynamically balanced impeller
Motor Features:
Pressure cast aluminum end plates with ribbed design for rigidity Ball bearings, locked drive end bearing Heavy gauge steel frame Motors wound with inverter spike resistance magnet wire Mounted complete on heavy duty cast iron base plate 230 V Motors
Notes:
CAUTION-WARNING: Please do not run pumps dry, restrict or reduce port sizes or dead head pumps. This could cause component failure to pump. DO NOT USE WITH FLAMMABLE LIQUIDS Motor warranty service available at authorized dealers.

Part Number	Description	Horsepower
2″ Cast Iron Pumps with Electric Motors
234PIE5	2″ Cast Iron Pump w/5.0 HP Three Phase Electric Motor	5.0 HP	(Made to Order)
234PIE51	2″ Cast Iron Pump w/5.0 HP Single Phase Electric Motor	5.0 HP	(Made to Order)
2″ Cast Iron Pump Only
234POI	2″ Cast Iron Pump Only w/ 184TC Frame Adapter	N/A	(Made to Order)
Polyethylene Suction Basket Strainers
300SBS	3″ Female Thread Poly Basket	N/A	—

Replacement Parts for 234PIE5 & 234PIE51
Item	Part Number	Description	Quantity Required
1	17000	Outlet Flange	1
2	17002	Inlet Flange	1
3	17446	C-Flange Adapter	1
4	17406	Impeller Shaft	1
5	17408	Impeller	1
6	17009B	5/8″ Impeller Nut	1
7	17010	1/2″ Hex Nut	1
8	17011	Wear Plate	1
9	17013	Outlet Gasket	1
10	17016	Gasket & Check Valve	1
11	17018	Gasket Adapter	1
12	17019	Bolt	8
13	15022	Handle	1
14	18129	Clamp Assembly with Key	1
15	17026	Pump Housing	1
16	V10118	5/16″ Lock Washer	20
17	17042	Housing Stud	6
18	V10119	Hex Nut	8
19	17449	Bolt	4
20	18058	Washer	4
21	18025	Seal Assembly	1
22	17701	Base Plate Assembly	1
23	17704	Bolt	4
24	V20018	3/8″ Lock Washer	4
25	17130	5/16-18 x 1.00″ FHSCS, 18-8 SS	2
26	BEM51	Electric Motor	1
27	12777	1/2″ Plug	1
28	UV15163	O-Ring for Drain Plug	1
