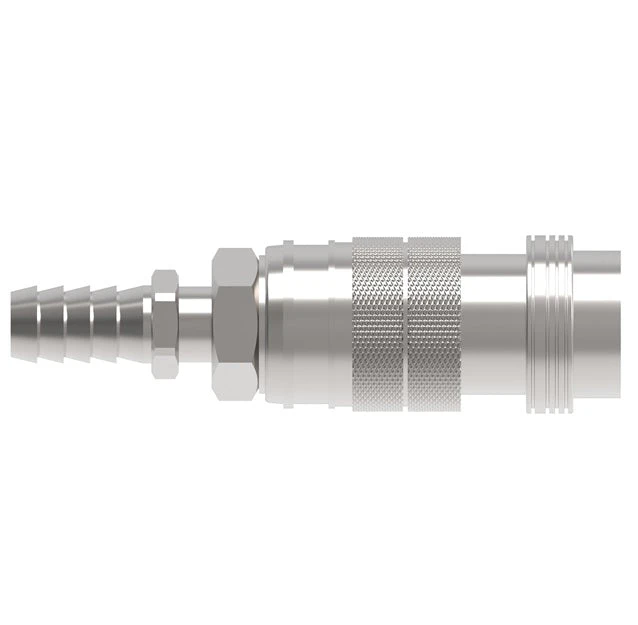

23204025 Hansen® By Danfoss | Pneumatic Quick Disconnect Coupling | Full-Bore Series | Hose Barb End | 1/2″ Hose ID X 1/2″ Body Size | Socket | Buna-N Seal | Steel
Original price was: $127.44.$89.21Current price is: $89.21.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Features: |
|
|---|---|
| Applications & Markets: |
|
| Materials: |
|
| Body Size | Max. Operating Pressure | Min. Burst Pressure | Rated Flow | |||
|---|---|---|---|---|---|---|
| 3/8″ | 15 bar | 250 psi | 60 bar | 1,000 psi | 1,784 lpm | 63 scfm |
| 1/2″ | 15 bar | 250 psi | 60 bar | 1,000 psi | 2,860 lpm | 101 scfm |
 |
 |
||||||
|---|---|---|---|---|---|---|---|
|
Socket/Female (Figure 1) |
Plug/Male (Figure 2) |
||||||
| Full-Bore Series | Socket | |||||||
| Part Number | Coupling Type | Body Size | Hose ID | End Type | Figure | Dimensions | |
| A | B | ||||||
| 23203024 | Socket/Female | 3/8″ | 1/4″ | Hose Barb | 1 | 4.36″ (110.7mm) |
1.25″ (31.8mm) |
| 23203025 | Socket/Female | 3/8″ | 3/8″ | Hose Barb | 1 | 4.48″ (113.8mm) |
1.25″ (31.8mm) |
| 23204025 | Socket/Female | 1/2″ | 1/2″ | Hose Barb | 1 | 4.80″ (121.9mm) |
1.38″ (35.1mm) |
| 23204026 | Socket/Female | 1/2″ | 3/4″ | Hose Barb | 1 | 4.80″ (121.9mm) |
1.38″ (35.1mm) |
| Full-Bore Series | Plugs | |||||||
| Part Number | Coupling Type | Body Size | Hose ID | End Type | Figure | Dimensions | |
| C | D | ||||||
| 404 | Plug/Male | 3/8″ | 1/4″ | Hose Barb | 2 | 2.34″ (59.4mm) |
0.63″ (16.0mm) |
| 406 | Plug/Male | 3/8″ | 3/8″ | Hose Barb | 2 | 2.34″ (59.4mm) |
0.63″ (16.0mm) |
| 408 | Plug/Male | 3/8″ | 1/2″ | Hose Barb | 2 | 2.34″ (59.4mm) |
0.81″ (20.6mm) |
| 59 | Plug/Male | 1/2″ | 3/8″ | Hose Barb | 2 | 2.66″ (67.6mm) |
0.69″ (17.5mm) |
| 60 | Plug/Male | 1/2″ | 1/2″ | Hose Barb | 2 | 2.66″ (67.6mm) |
0.75″ (19.1mm) |
| 61E | Plug/Male | 1/2″ | 3/4″ | Hose Barb | 2 | 3.50″ (88.9mm) |
1.00″ (25.4mm) |
