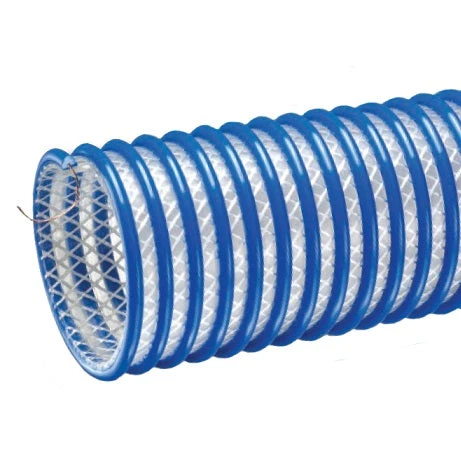

2020-500X50 Tigerflex By Kuriyama | 2020 Series | Heavy Duty Food Grade Fabric Reinforced Material Handling Hose With Grounding Wire | 5″ ID | Polyurethane | 50ft Length

Original price was: $398.00.Current price is: $98.99.

SKU: AG9ZZ 1487383625764 Category: Bulk Hose & Covers Tags: 2020 Series Heavy Duty Food Grade Polyurethane Fabric Reinforced Material Handling Hose With Grounding Wire, All-categories, Collection-lvl1_All Hose, Collection-lvl2_Industrial Hose, Collection-lvl3_Material Handling Hose, Filter-All-Brand_Tigerflex, Filter-All-Series_2020 Series, Filter-All-SpecialProperties_Ground Wire in Hose, Filter-All-SpecialProperties_Outer Helix Protection, Filter-All-Specifications and Approvals_Applicable FDA Requirements, Filter-All-Specifications and Approvals_Applicable USDA Standards, Filter-All-Specifications and Approvals_RoHS Compliant, Filter-AllHose-Color_Blue & Clear/Semi-Clear, Filter-AllHose-ID_5", Filter-AllHose-TubingConstruction_Polyurethane, Filter-IndustrialHoseTubingJoints-OD_5.79", Food Grade, Industrial Hose Fittings, Industrial-hose, JD050523, Kuriyama Tigerflex Hose, LegacyProductTypeReplacement_All Categories, Matrixify1st50kProducts, Tigerflex Thermoplastic Industrial Hoses, Unit-ft-50

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

SPECIFICATIONS

Other Features:
Application:	Food Grade Material Handling, Material Handling, Bulk Truck and Railcar Unloading, Suction and Discharge	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Extra Thick Double-Ply Polyurethane
Reinforcement:	Polyester Fabric, Rigid PVC Helix and Grounding Wire	Cover:	N/A
Temperature Range:	-40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	BSE/TSE(02), FDA(04), FDA(05), RoHS(10), USDA(11)
Extra Thick Abrasion Resistant Double-Ply Polyurethane Tube – designed for dry applications where severe abrasion is a factor. Provides for longer hose life and lower operating costs versus rubber or PVC hoses. Food Grade Materials – Hose liner complies with applicable FDA(04) requirements. Hose approved by USDA(11) for use in meat and poultry plants. Fabric Reinforcement – designed with high tensile strength, food grade(05), polyester yarn jacket to handle both suction, and higher pressure discharge applications. Grounding Wire – Multi-strand wire helps prevent the build-up of static electricity for added safety and to help keep material flowing smoothly. It’s embedded within the rigid helix to prevent contamination of transferred materials. Transparent Construction – “See-the-flow.” Allows for visual confirmation of material flow. “Cold-Flex” Materials – Hose remains flexible in sub-zero temperatures. Easy Slide Helix – Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to handle. Oil Resistant Polyurethane Tube – Resists most animal and petroleum based oils.

Part Number	ID	ID	OD	OD	Working Pressure (PSI)		Vacuum Rating (in. Hg)		Min. Bending Radius	Standard Length	Weight (Lbs/Ft)
	(in.)	(mm)	(in.)	(mm)	68 deg. F	104 deg. F	68 deg. F	104 deg. F	(in @ 68 deg. F)	(ft.)
2020-300X100	3″	76.2mm	3.78″	96.0mm	70 PSI	35 PSI	Full	28in. Hg	10″	100ft	1.20 lbs
2020-300X50	3″	76.2mm	3.78″	96.0mm	70 PSI	35 PSI	Full	28in. Hg	10″	50ft	1.20 lbs
2020-400X100	4″	101.6mm	4.84″	123.0mm	65 PSI	30 PSI	Full	28in. Hg	12″	100ft	1.60 lbs
2020-400X50	4″	101.6mm	4.84″	123.0mm	65 PSI	30 PSI	Full	28in. Hg	12″	50ft	1.60 lbs
2020-500X50	5″	127.0mm	5.79″	147.0mm	45 PSI	22 PSI	28in. Hg	25in. Hg	14″	50ft	2.45 lbs
2020-600X50	6″	152.4mm	6.93″	176.0mm	40 PSI	22 PSI	28in. Hg	25in. Hg	16″	50ft	2.86 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent. CAUTION: This product is designed to dissipate static electricity when the embedded grounding wire is physically extracted and securely connected to ground, through the fi tting or by other means.
