SPECIFICATIONS
| Application: | Fluids, Agriculture, Industrial | ||
|---|---|---|---|
| Features: | |||
| |||
| Notes: | |||
| |||
| Part Number | Description | Horsepower | ||
|---|---|---|---|---|
| 2″ Cast Iron Wet Seal Pumps with Gas Engines | ||||
| 201PIH5W | 2″ Cast Iron Wet Seal Pump with 5.5 HP Honda® Engine | 5.5 HP | — | |
| 2″ Cast Iron Wet Seal Beating Pedestals | ||||

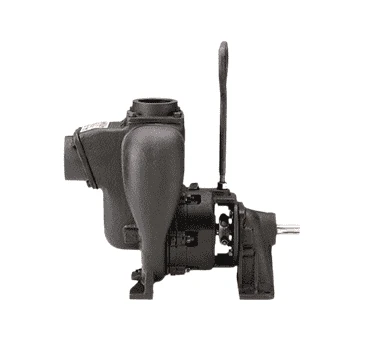

| 201PBIW | 2″ Cast Iron Wet Seal Pump with Bearing Pedestal | N/A | (Made to Order) | |
| 2″ Cast Iron Wet Seal Pump Only | ||||
| 201POIW | 2″ Cast Iron Wet Seal Pump Only | N/A | (Made to Order) | |
| Polyethylene Suction Basket Strainer | ||||
| 300SBS | 3″ Female Thread Poly Basket | N/A | — | |
![]() | |||
|---|---|---|---|
| Replacement Parts for 2″ Cast Iron Wet Seal Pumps | |||
| Item | Part Number | Description | Quantity Required |
| 1 | V10118 | 5/16″ Lock Washer | 6 |
| 2 | V10119 | 5/16″-18 Hex Nut | 6 |
| 4 | 17010 | 1/2″ Hex Nut | 1 |
| 5 | 17018 | Gasket Adapter | 1 |
| 6 | 17123 | 5/8″ Clamp, 3/4″ Shaft Assembly Keyed | 1 |
| 7 | 17226 | Pump Housing | 1 |
| 9 | 12882A | Bearing Pedestal | 1 |
| 10 | 17019 | 5/16″-18 x 3/4″ HHCS | 4 |
| 11 | V10118 | 5/16″ Lock Washer | 4 |
| 12 | 17002 | Inlet Flange | 1 |
| 13 | 17016 | EPDM Check Valve Gasket Assembly | 1 |
| 14 | 17019 | 5/16″ -18 x 3/4″ HHCS | 4 |
| 15 | V10118 | 5/16″ Lock Washer | 4 |
| 16 | 17000 | Outlet Flange | 1 |
| 17 | 17013 | EPDM Outlet Gasket | 1 |
| 18 | 17242 | Housing Stud | 6 |
| 19 | 17208 | Impeller | 1 |
| 20 | 17032 | Pipe Plug | 1 |
| 21 | 17019 | 5/16″-18 x 3/4″ Cap Screw | 4 |
| 22 | V10118 | 5/16″ Lock Washer | 4 |
| 23 | 12777 | 1/2″ Plug | 2 |
| 24 | 17202 | Cover Plate | 1 |
| 25 | 17018 | Gasket Adapter | 1 |
| 26 | 17201A | Reservoir | 1 |
| 27 | 17235 | FKM (viton type) Mechanical Seal Assembly | 1 |
| 28 | 17009B | 5/8″ Impeller Nut | 1 |
| 29 | 17206A | Adapter Shaft | 1 |
| 30 | UV15163 | O-Ring | 2 |
