SPECIFICATIONS
| Application: | Air, water, industrial, construction, agricultural applications. | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | EPDM synthetic rubber, ARPM Class C (Limited Oil Resistance) |
| Reinforcement: | Spiral synthetic yarn, 2″ is braided | Cover: | Black, Red, Yellow, Green or Blue EPDM synthetic rubber Class C (Limited Oil Resistance) |
| Temperature Range: | -40°F to 210°F (-40°C to 99°C) | Fittings: | N/A |
| Branding: | 1/2″ Frontier™ Continental ContiTech 300 psi WP | ||
| Red Part Number | Yellow Part Number | Green Part Number | Inside Diameter | Nominal Outside Diameter | Max. Working Pressure | Length | Weight | Red Order Code | Yellow Order Code | Green Order Code | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in. | mm | in. | mm | PSI | MPa | lb./ft. | kg/m | |||||||
| 20026960 | – | – | 1/4″ | 6.4mm | 0.53″ | 13.5mm | 300 PSI | 2.07 MPa | 500ft | 0.10 lbs./ft. | 0.15 kg/m | 56955706400200 | – | – |
| 20026967 | – | – | 5/16″ | 6.40mm | 0.53″ | 13.40mm | 300 PSI | 2.07 MPa | 500ft | 0.161 lbs./ft. | – | 56955707900200 | – | – |
| 20026971 | 20127382 | – | 3/8″ | 9.5mm | 0.70″ | 17.8mm | 300 PSI | 2.07 MPa | 500ft | 0.17 lbs./ft. | 0.25 kg/m | 56955709500200 | 56951609500200 | – |
| 20026980 | 20127385 | – | 1/2″ | 12.7mm | 0.84″ | 21.3mm | 300 PSI | 2.07 MPa | 500ft | 0.22 lbs./ft. | 0.33 kg/m | 56955712700200 | 56951612700200 | – |
| 20026985 | 20026845 | 20048519 | 3/4″ | 19.1mm | 1.15″ | 29.2mm | 300 PSI | 2.07 MPa | 500ft | 0.37 lbs./ft. | 0.55 kg/m | 56955719100200 | 56951619100200 | 56956019100200 |
| 20026992 | 20026859 | 20048546 | 1″ | 25.4mm | 1.48″ | 37.3mm | 300 PSI | 2.07 MPa | 450ft | 0.58 lbs./ft. | 0.86 kg/m | 56955725400200 | 56951625400200 | 56956025400200 |
| Coupled Lengths | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Red Part Number | Coupling | Length | Inside Diameter | Nominal Outside Diameter | Max. Working Pressure | Weight | Red Order Code | ||||
| in. | mm | in. | mm | PSI | MPa | lb./ft. | kg/m | ||||

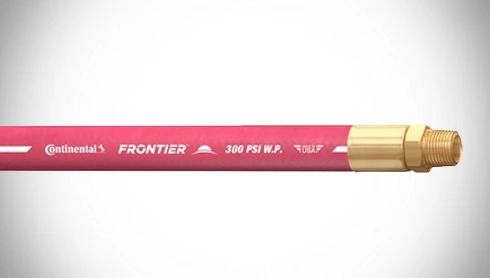

| 20147625 | 1/4″ Male NPT x 1/4″ Male NPT | 50ft | 1/4″ | 6.4mm | 0.53″ | 13.5mm | 300 PSI | 2.07 MPa | 0.10 lbs./ft. | 0.15 kg/m | 56955706450301 |
| 20147626 | 1/4″ Male NPT x 1/4″ Male NPT | 100ft | 56955706450601 | ||||||||
| 20134965 | 1/4″ Male NPT x 1/4″ Male NPT | 25ft | 3/8″ | 9.5mm | 0.70″ | 17.8mm | 300 PSI | 2.07 MPa | 0.17 lbs./ft. | 0.25 kg/m | 56955709532501 |
| 20147627 | 1/4″ Male NPT x 1/4″ Male NPT | 50ft | 56955709550901 | ||||||||
| 20147628 | 1/4″ Male NPT x 1/4″ Male NPT | 100ft | 56955709551201 | ||||||||
| 20147629 | 1/2″ Male NPT x 1/2″ Male NPT | 50ft | 1/2″ | 12.7mm | 0.84″ | 21.3mm | 300 PSI | 2.07 MPa | 0.22 lbs./ft. | 0.33 kg/m | 56955712751501 |
| 20147650 | 1/2″ Male NPT x 1/2″ Male NPT | 100ft | 56955712751801 | ||||||||
Hose design ratio (burst pressure) 4:1.
