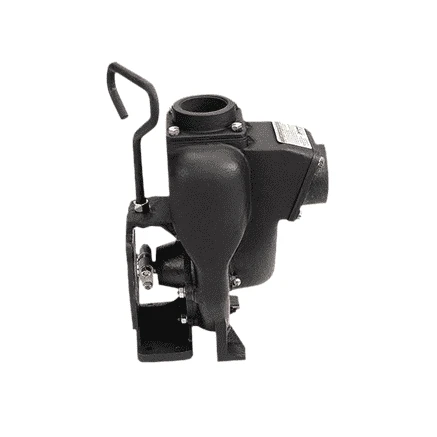

200POICF5/8 By Banjo | Centrifugal Pumps | 2″ Cast Iron C-Flange Pump With 5/8″ Shaft Sleeve

Original price was: $396.00.Current price is: $99.99.

SKU: AG9ZZ 1480690565156 Categories: Pumps, Tools & Equipment Tags: 2" Cast Iron Pumps with Gas Engines & Replacement Parts, 2" Cast Iron Pumps with Gas Engines C-Flange Pumps Bearing Pedestals Single Pumps, 2" Self-Priming Centrifugal Pumps, All-categories, Banjo Liquid Handling Products, Collection-lvl1_All Equipment, Collection-lvl2_Pumps, Collection-lvl3_Cast Iron Pumps, Industrial Hose Fittings, LegacyProductTypeReplacement_All Categories, Matrixify1st50kProducts, Pumps, Self-Priming Centrifugal Pumps

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

SPECIFICATIONS

Features:
Application:	Fluids, Agriculture, Industrial
Cast iron construction for rugged dependable service Stainless steel shaft sleeve to protect engine shaft Carbon ceramic seal with stainless steel cup and spring with FKM (viton type) rubber Replaceable inlet and outlet flanges Dynamically balanced impeller
Notes:
CAUTION-WARNING: Please do not run pump dry, restrict or reduce port sizes, or dead head pump. This could cause component failure to pump Engine warranty service available at authorized Briggs & Stratton® and Honda® dealers. DO NOT USE WITH FLAMMABLE LIQUIDS

Part Number	Description	Horsepower
2″ Cast Iron Pumps with Gas Engines
200PI-3	2″ Cast Iron Pump with 3.5 HP Briggs & Stratton® Engine	3.5 HP	(Made to Order)
200PI6PRO	2″ Cast Iron Pump with 6.5 HP Briggs & Stratton® Engine Pro Series	6.5 HP	—
200PIH-5	2″ Cast Iron Pump with 5.5 HP Honda® Engine	5.5 HP	—
200PIH5E	2″ Cast Iron Pump with 5.5 HP Honda® Engine with Electric Start	5.5 HP	(Made to Order)
2″ Cast Iron Pump Only
2″ Cast Iron Bearing Pedestal
200PBI	2″ Cast Iron Bearing Pedestal with 3/4″ Straight Shaft* (Note:*3/4″ straight shaft for long coupling to electric motors)	N/A	(Made to Order)
2″ Cast Iron C-Flange Pumps
200POICF5/8	2″ Cast Iron C-Flange Pump with 5.8″ Shaft Sleeve	N/A	(Made to Order)
200POICF7/8	2″ Cast Iron C-Flange Pump with 7.8″ Shaft Sleeve	N/A	(Made to Order)

* Recommendation for 5/8″ Shaft: 56C Frame Size, 3 HP, 3450 RPM, & 5″ Max Impeller for close coupling to electric motors. 7/8″ Shaft: 145TC Frame Size, 3 HP, 3450 RPM, & 5″ Max Impeller for close coupling to electric motors.


Replacement Parts for 2″ Cast Iron Pumps
Item	Part Number	Description	Quantity Required
1	17000	Threaded Outlet Flange	1
1	M17000	2″ Manifold Outlet Flange	1
2	17002	Threaded Inlet Flange	1
2	M17002	2″ Manifold Inlet Flange	1
3	17004	Adapter for Gas Engine	1
3	17046	C-Flange Adapter	1
4	17005	5/8″ Sleeve Drive for Electric Motor	1
4	17006*	3/4″ Sleeve Drive	1
4	17007	7/8″ Sleeve Drive for Electric Motor	1
5	17008*	5″ Impeller	1
5	17008-4.1	4.1″ Trimmed Impeller	1
6	17010	1/2″ Hex Nut	1
7	17011	Wear Plate	1
8	17013	EPDM Gasket	1
9	17016	Check Valve Assembly	1
10	17018	Gasket Adapter	1
11	15022	Handle	1
12	17023	5/8″ Clamp for 3/4″ Shaft Assembly (Old Style)	1
12	17123	5/8″ Clamp for 3/4″ Shaft Assembly (Keyed)	1
12	17024	7/8″ Clamp for Shaft Assembly	1
13	17026	Pump Housing	1
14	V10118	5/16″ Lock Washer	18
15	V10119	5/16″ – 18 SS Hex Nut	6
Not Shown	12882R	Housing	1
Not Shown	12883R	Bearing Pedestal with 3/4″ Shaft Only	1
Not Shown	12884	Internal Retaining Clip for Pedestal	1
Not Shown	12883B	Bearings	2
16	12882A	Complete Pedestal Assembly	1
17	17040	5.16″-24 x 1.00″ Cap Screw	4
18	17028	EPDM Seal Assembly	1
18	17035*	FKM (viton type) Seal Assembly	1
18	17035SD	Severe Duty Seal	1
19	17042	Stud	6
20	17019	5/16″-18 x 3/4″ Cap Screw	8
21	17009B	5/8″ Impeller Nut	1
22	17130	5/16-18 x 1.00″ FHSCS, 18-8 SS	2
23	12777	1/2″ Plug	1
24	UV15163	O-Ring	1
Not Shown	17033	Z Rails (Pair)	1
Not Shown	17100	Repair Kit (Consists of items 4, 5, 7,10,18*)	1
