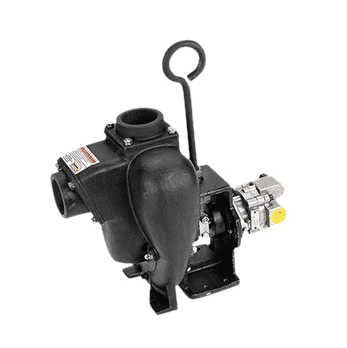

200PIHY By Banjo | Centrifugal Pumps | 2″ Cast Iron Pump With 12 HP Hydraulic Motor

Original price was: $347.00.Current price is: $96.99.

SKU: AG9ZZ 1480693448740 Categories: Pumps, Tools & Equipment Tags: 2" Cast Iron Pumps with Hydraulic Motors & Replacement Parts, 2" Cast Iron Pumps with Hydraulic Motors Spool Valve, 2" Self-Priming Centrifugal Pumps, All-categories, Banjo Liquid Handling Products, Collection-lvl1_All Equipment, Collection-lvl2_Pumps, Collection-lvl3_Cast Iron Pumps, Industrial Hose Fittings, LegacyProductTypeReplacement_All Categories, Matrixify1st50kProducts, Pumps, Self-Priming Centrifugal Pumps

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

SPECIFICATIONS

Hydraulic Motor Data:
Application:	Fluids, Agriculture, Industrial
U.S. Gallons/Rev.	0.0025	Cubic Inches/Rev.	0.580
Liters/Rev.	0.0097	Max Hydraulic Pressure	2000 PSI
Min Hydraulic Pressure	200 PSI	Inlet Port	SAE 10 (7/8-14 UNF-2B)
Outlet Port	SAE 10 (7/8-14 UNF-2B)	Minimum GPM Required	6 GPM 2400 RPM
Maximum GPM Required	10 GPM 4000 RPM	Ideal GPM Required	9 GPM 3600 RPM
Connection Information
Inlet	“A” Port	Outlet	“B” Port
Supplied check valve is to ensure proper rotation of the Banjo pump. Place check valve in outlet port (marked “B”) for proper right hand rotation.
Spool Valve Information
Required Outlet Flow	Min 8 GPM / Max 13 GPM	Required System Pressure	Min 600 PSI / Max 3000 PSI
Pump Features:
Rugged construction for dependable service Carbon ceramic seal with stainless steel cup and spring with FKM (viton type) rubber Replaceable inlet and outlet flanges Dynamically balanced impeller
Hydraulic Motor Features:
Hydraulic fluid capacity: Minimum 6 Gallons / Maximum 10 Gallons 12 H.P. Motor Open or closed system Minimum 500 PSI / Maximum 2000 PSI
Notes:
CAUTION-WARNING: Please do not run pump dry, restrict or reduce port sizes, or dead head pump. This could cause component failure to pump. DO NOT USE WITH FLAMMABLE LIQUIDS. Recommendation: Banjo recommends using the motor spool control valve or a suitable equivalent. The lack of such a valve in this circuit may cause failure to the hydraulic motor.

Part Number	Description	Horsepower
2″ Cast Iron Pumps with Hydraulic Motors
200PIHY	2″ Cast Iron Pump w/12 HP Hydraulic Motor	12 HP	(Made to Order)
Hydraulic Motor Spool Valve
HSV1000	Hydraulic Motor Spool Valve	N/A	—


Replacement Parts for 2″ Cast Iron Pumps
Item	Part Number	Description	Package Quantity
1	17026	Pump Housing	1
2	17042	Pump Housing Stud	1
3	17011	Wear Plate	1
4	17130	5/16-18 x 1.00″ FHSCS, 18-8 SS	1
5	17008	5″ Impeller	1
6	17007	7/8″ Sleeve Drive for Hydraulic Motor	1
7	17009B	5/8″ Impeller Nut	1
9	17055A	Hydraulic Adapter Shaft	1
10	17056	SKF 6206-2RS1 Bearing	1
11	17024	7/8″ Clamp, no key	1
12	HY1013	MGG@0025BC1D3 Hydraulic Motor Assembly	1
13	V20018	3/8″ Lock Washer	1
14	18010SS	3/8″-16 x 1.25″ HHHCS	1
15	17018	Gasket Adapter	1
16	17028	EPDM Seal Assembly	1
16	17035	FKM (viton type) Seal Assembly	1
16	17035SD	Severe Duty Seal Assembly	1
17	17000	2″ Outlet Flange	1
17	17001	1-1/2″ Outlet Flange	1
18	17002	2″ Inlet Flange	1
18	17003	1-1/2″ Inlet Flange	1
19	17013	EPDM Gasket	1
20	17016	Gasket Check Valve Assembly	1
21	17019	5/16″-18 x 0.75″ Cap Screw	1
22	V10118	5/16″ Split Lock Washer	1
23	12777	1/2″ Plug	1
24	V10119	5/16″-18 Hex Nut	1
25	15022	Handle	1
26	17010	1/2″ Hex Nut – 13UNF-RH	1
27	UV15163	O-Ring	1


Replacement Parts for 2″ Hydraulic Adapter
Item	Part Number	Description	Package Quantity
1	17049A	Hydraulic Motor Adapter	1
2	17018	Gasket Adapter	1
3	17035	Seal Assembly	1
Not Shown	17007	7/8″ SS Shaft Sleeve	1
4	17056	SKF 6206-2RS1 Bearing	1
5	17055A	Hydraulic Adapter Shaft	1
6	HY1013	Gresen® Hydraulic Motor	1
7	V20018	Lock Washer	1
8	18010SS	Bolt	1
Not Shown	HY1003	Seal Kit	1
