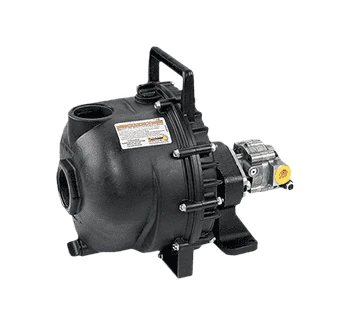

200PHYW By Banjo | Centrifugal Pumps | 2″ Wet Seal Pump With 12 HP Hydraulic Motor | Polypropylene

Original price was: $363.00.Current price is: $95.99.

SKU: AG9ZZ 1480685322276 Categories: Pumps, Tools & Equipment Tags: 2" Polypropylene Hydraulic Pumps & Hydraulic Motor Spool Valve, 2" Polypropylene Hydraulic Pumps & Replacement Parts, 2" Self-Priming Centrifugal Pumps, Banjo Liquid Handling Products, Collection-lvl1_All Equipment, Collection-lvl2_Pumps, Industrial Hose Fittings, Matrixify3rd50kProducts, Self-Priming Centrifugal Pumps

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

SPECIFICATIONS

Hydraulic Motor Data:
Application:	Fluids, Agriculture, Industrial
Product Manual:	Parts 200PHA & 200PHY: 1-1/2″, 2″ & 3″ Centrifugal Pump Instruction Manual PDF Parts 200PHYW: 2″ Cast Iron Wet Seal 201 Series Pump Instruction Manual PDF
Replacement Parts:	Replacement Parts for 2″ Polypropylene Hydraulic Pumps
U.S. Gallons/Rev.	0.0025	Cubic Inches/Rev.	0.580
Liters/Rev.	0.0097	Max Hydraulic Pressure	2000 PSI
Min Hydraulic Pressure	200 PSI	Inlet Port	SAE 10 (7/8-14 UNF-2B)
Outlet Port	SAE 10 (7/8-14 UNF-2B)	Minimum GPM Required	6 GPM 2400 RPM
Maximum GPM Required	10 GPM 4000 RPM	Ideal GPM Required	9 GPM 3600 RPM
Connection Information
Inlet	“A” Port	Outlet	“B” Port
Supplied check valve is to ensure proper rotation of the Banjo pump. Place check valve in outlet port (marked “B”) for proper right hand rotation.
Spool Valve Information
Required Outlet Flow	Min 6 GPM / Max 10 GPM	Required System Pressure	Min 600 PSI / Max 3000 PSI
Pump Features:
Precision molded construction Lightweight Corrosion resistant Superior design Low maintenance
Gresen® MGG2 Hydraulic Motor Features:
Hydraulic fluid capacity Minimum 6 Gallons / Maximum 10 Gallons. 12 H.P. Motor Open or closed system 3600 R.P.M.
Notes:
CAUTION-WARNING: Please do not run pump dry, restrict or reduce port sizes, or dead head pump. This could cause component failure to pump. DO NOT USE WITH FLAMMABLE LIQUIDS. Recommendation: Banjo recommends using the motor spool control valve or a suitable equivalent. The lack of such a valve in this circuit may cause failure to the hydraulic motor.

Part Number	Description	Horsepower	EPDM Repair Kit Number	FKM Repair Kit Number	EPDM Seal Kit Number	FKM Seal Kit Number	Hydraulic Motor Seal Kit Number
2″ Poly Pumps with Hydraulic Motors
200PHA	2″ Poly Pump WITHOUT Hydraulic Motor	N/A	12000A	12000AV	12999A	12999AV	N/A	(Made to Order)
200PHY	2″ Poly Pump with 12 HP Hydraulic Motor	12.0 HP	12000A	12000AV	12999A	12999AV	HY1003	(Made to Order)
200PHYW	2″ Poly Wet Seal Pump with 12 HP Hydraulic Motor	12.0 HP	N/A	N/A	N/A	N/A	N/A	(Made to Order)
Hydraulic Motor Spool Valve
HSV1000	Hydraulic Motor Spool Valve	N/A	N/A	N/A	N/A	N/A	N/A	N/A	—

Replacement Parts for 2″ Poly Pumps
Item	Part Number	Description
3	12712A	Body Assembly
14	12703A	Rear Bracket
20	12702A	Volute
Not Shown	12099	7/16″-14 x 1.25″ HHCS
N/A	12000A	5 Vane Impeller Repair Kit (Items 2,4,7,8,17,19,21,30, 12099)
N/A	12000AV	FKM(viton type) Impeller Repair Kit (Items 2,4,7,8,17,19,21,30, 12099)
N/A	12999A	Pump Seal/O-Ring Kit (Items 2,4,7,8,17,19,21,30, 12099)
N/A	12999AV	FKM(viton type) Pump Seal/O-Ring Kit (Items 4-7,8,10,18, 23 & 12099)
N/A	HY1003	Hydraulic Motor Seal Kit
