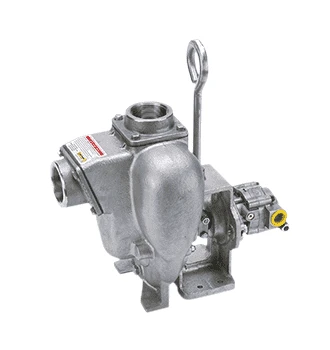

200PHYSS By Banjo | Centrifugal Pumps | 2″ Pump With 12 HP Hydraulic Motor | Stainless Steel

Original price was: $366.00.Current price is: $96.99.

SKU: AG9ZZ 1480719663140 Category: Tools & Equipment Tags: 2" Self-Priming Centrifugal Pumps, 2" Stainless Steel Pumps with Hydraulic Motors & Replacement Parts, 2" Stainless Steel Pumps with Hydraulic Motors Spool Valves, All-categories, Banjo Liquid Handling Products, Collection-lvl1_All Equipment, Collection-lvl2_Pumps, Industrial Hose Fittings, LegacyProductTypeReplacement_All Categories, Matrixify1st50kProducts, Pumps, Self-Priming Centrifugal Pumps

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

SPECIFICATIONS

Hydraulic Motor Data:
Application:	Fluids, Agriculture, Industrial
Product Manual:	1-1/2 & 2″ Cast Iron & Stainless Steel Pump Instruction Manual
Replacement Parts:	Replacement Parts for 2″ Stainless Steel Pumps with Hydraulic Motors 2″ Stainless Steel Hydraulic Adapters
U.S. Gallons/Rev.	0.0025	Cubic Inches/Rev.	0.580
Liters/Rev.	0.0097	Max Hydraulic Pressure	2000 PSI
Min Hydraulic Pressure	200 PSI	Inlet Port	SAE 10 (7/8-14 UNF-2B)
Outlet Port	SAE 10 (7/8-14 UNF-2B)	Minimum GPM Required	6 GPM 2400 RPM
Maximum GPM Required	10 GPM 4000 RPM	Ideal GPM Required	9 GPM 3600 RPM
Connection Information
Inlet	“A” Port	Outlet	“B” Port
Supplied check valve is to ensure proper rotation of the Banjo pump. Place check valve in outlet port (marked “B”) for proper right hand rotation.
Spool Valve Information
Required Outlet Flow	Min 6 GPM / Max 10 GPM	Required System Pressure	Min 500 PSI / Max 2000 PSI
Pump Features:
Rugged construction for dependable service Carbon ceramic seal with stainless steel cup and spring with FKM (viton type) rubber Replaceable inlet and outlet flanges Dynamically balanced impeller
Hydraulic Motor Features:
Hydraulic fluid capacity: Minimum 6 Gallons / Maximum 10 Gallons 12 H.P. Motor Open or closed system Minimum 500 P.S.I. / Maximum 2000 P.S.I.
Notes:
DO NOT USE WITH FLAMMABLE LIQUIDS. Recommendation: Banjo recommends using the motor spool control valve or a suitable equivalent. The lack of such a valve in this circuit may cause failure to the hydraulic motor.

Part Number	Description	Horsepower
2″ Stainless Steel Pumps with Hydraulic Motors
200PHYSS	2″ SS Pump w/12 HP Hydraulic Motor	12 HP	(Made to Order)
Hydraulic Motor Spool Valve
HSV1000	Hydraulic Motor Spool Valve	N/A	—


Replacement Parts for 2″ Stainless Steel Hydraulic Pumps
Item	Part Number	Description	Quantity Required
1	17026SS	Pump Housing	1
2	17042	Pump Housing Stud	6
3	17011SS	Wear Plate	1
4	17130SS	5/16-18 x 1.00″ FHSCS, 316 SS	2
5	17008SS	5″ Impeller	1
6	17007	7/8″ Sleeve Drive for Electric Motor	1
7	17009B	5/8″ Impeller Nut	1
9	17055A	Hydraulic Adapter Shaft	1
10	17056	SKF 6206-2RS1 Bearing	1
11	17024	7/8″ Clamp, no key	1
12	HY1013	MGG@0025BC1D3 Hydraulic Motor Assembly	1
13	V20018	3/8″ Lock Washer	2
14	18010SS	3/8″ – 16 x 1.25″ HHHCS	2
15	17018	Gasket Adapter	1
16	17035SS	FKM (viton type) Seal Assembly	1
17	17000SS	2″ Outlet Flange	1
18	17002SS	2″ Inlet Flange	1
19	17014	FKM (viton type) Gasket	1
20	17017	Gasket Check Valve Assembly	1
21	17019	5/16″-18 x 0.75″ Cap Screw	8
22	V10118	5/16″ Split Lock Washer	14
23	12777SS	1/2″ Stainless Steel Plug	1
24	V10119	5/16″-18 Hex Nut	6
25	15022	Handle	1
26	17010	1/2″ Hex Nut – 13UNF-RH	1
27	UV15163V	O-Ring FKM (viton type)	1


Replacement Parts for 2″ Stainless Steel Hydraulic Adapter
Item	Part Number	Description	Quantity Required
1	17049ASS	SS Hydraulic Motor Adapter	1
2	17018	Gasket Adapter	1
3	17035SS	Seal Assembly	1
Not Shown	17007	7/8″ SS Shaft Sleeve	1
4	17056	SKF 6206-2RS1 Bearing	1
5	17055A	Hydraulic Adapter Shaft	1
6	HY1013	Gresen® Hydraulic Motor	1
7	V20018	Lock Washer	2
8	18010SS	Bolt	2
