SPECIFICATIONS
| Application: | Fluids, Agriculture, Industrial | ||
|---|---|---|---|
| Features: | |||
| |||
| Notes: | |||
| |||
| Part Number | Description | Horsepower | EPDM Repair Kit Num | EPDM Seal Kit Num | ||
|---|---|---|---|---|---|---|
| 2″ Stainless Steel Pumps with Gas Engines | ||||||

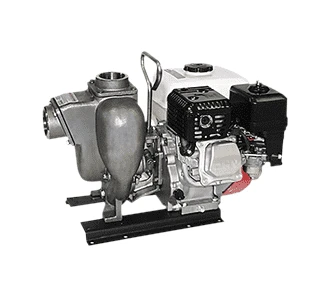

| 200PH5-SS | 2″ SS Pump with 5.5 HP Honda® Engine with Pull Rope Only | 5.5 HP | (Made to Order) | 17100SS | 17035SS | |
| 2″ Stainless Steel Bearing Pedestal Pumps | ||||||
| 200PB-SS | 2″ SS Bearing Pedestal with 3/4″ Straight Shaft (Note: Straight shaft for long coupling to electric motors) | N/A | (Made to Order) | 17100SS | 17035SS | |
| 2″ Stainless Steel Pump Only | ||||||
| 200PO-SS | 2″ SS Pump Only with 3/4″ Shaft Sleeve | N/A | (Made to Order) | 17100SS | 17035SS | |
| 2″ Stainless Steel C-Flange Pumps | ||||||
| 200POSSCF5/8 | 2″ SS C-Flange Pump with 5.8″ Shaft Sleeve | N/A | (Made to Order) | – | – | |
| Universal Base Plate Assembly | ||||||
| 18700 | Base Plate Assembly for 1-1/2″, 2″ & 3″ Cast Iron or Poly Pump (Plate, Coupling Guard, Bolt Bag & Shims) | N/A | – | – | – | |
| 18702 | Replacement Coupling Guard | N/A | – | – | – | – |
Note: Recommendation for 5.8″ Shaft: 56C Frame Size, 3 HP, 3450 RPM, & 5″ Max Impeller for close coupling to electric motors.
Recommendation for 7.8″ Shaft:145TC Frame Size, 3 HP, 3450 RPM, & 5″ Max Impeller for close coupling to electric motors.
![]() | |||
|---|---|---|---|
| Replacement Parts for 2″ Stainless Steel Pumps | |||
| Item | Part Number | Description | Quantity Required |
| 1 | 17000SS | SS Outlet Flange | 1 |
| 2 | 17002SS | SS Inlet Flange | 1 |
| 3 | 17046SS | CF Adapter for Electric Motor | 1 |
| 4 | 17005 | 5/8″ SS Sleeve Drive | 1 |
| 4 | 17006 | 3/4″ SS Sleeve Drive | 1 |
| 4 | 17007 | 7/8″ SS Sleeve Drive | 1 |
| 5 | 17008SS* | SS Impeller | 1 |
| 6 | 17009B | 5/8″ Impeller Nut | 1 |
| 7 | 17011SS* | SS Wear Plate | 1 |
| 8 | 17014 | FKM (viton type) Outlet Gasket | 1 |
| 9 | 17017 | FKM (viton type) Check Valve Assembly Gasket | 1 |
| 10 | 17018 | Adapter Gasket | 1 |
| 11 | 15022 | Handle | 1 |
| 12 | 17023 | 5/8″ Clamp, 3/4″ SS Shaft (Old Style) | 1 |
| 12 | 17123 | 5/8″ Clamp, 3/4″ SS Shaft (Keyed Clamp) | 1 |
| 12 | 17024 | 7/8″ Clamp, 3/4″ SS Shaft | 1 |
| 13 | 17026SS | SS Pump Housing | 1 |
| 14 | 17130SS | 5/16-18 x 1.00″ FHSCS, 316 SS | 2 |
| 15 | V10118 | 5/16″ Lock Washer | 18 |
| 16 | V10119 | 5/16″-18 SS Hex Nut | 6 |
| 17 | 12882A | Bearing Pedestal Assembly with 3/4″ Shaft | 1 |
| 18 | 17040 | Bolt | 4 |
| 19 | 17035SS | FKM (viton type) SS Seal Assembly | 1 |
| 20 | 17010 | 1/2″ – 24 x 1″ HHCS | 1 |
| 21 | 12777SS | 1/2″ Stainless Steel Plug | 1 |
| 22 | UV15163V | O-Ring FKM (viton type) | 1 |
| 23 | 17019 | 5/16″ – 18 x 3/4″ Cap Screw | 8 |
| 24 | 17042 | Stud | 6 |
| Not Shown | 17100SS | Pump Repair Kit(Consists of 4,5,7,10,14,19) | 1 |
