Sale!

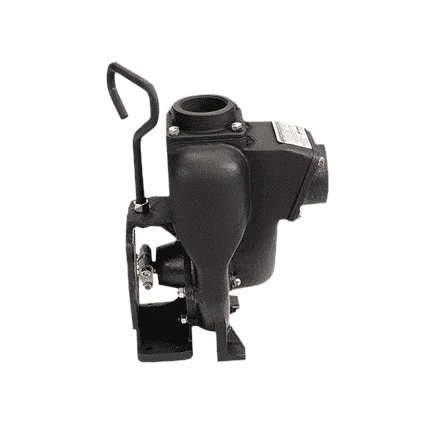

200PBI By Banjo | Centrifugal Pumps | 2″ Cast Iron Bearing Pedestal With 3/4″ Straight Shaft
Original price was: $358.00.$95.99Current price is: $95.99.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
SPECIFICATIONS
| Application: | Fluids, Agriculture, Industrial | ||
|---|---|---|---|
| Features: | |||
| |||
| Notes: | |||
| |||
| Part Number | Description | Horsepower | ||
|---|---|---|---|---|
| 2″ Cast Iron Pumps with Gas Engines | ||||
| 200PI-3 | 2″ Cast Iron Pump with 3.5 HP Briggs & Stratton® Engine | 3.5 HP | (Made to Order) | |
| 200PI6PRO | 2″ Cast Iron Pump with 6.5 HP Briggs & Stratton® Engine Pro Series | 6.5 HP | — | |
| 200PIH-5 | 2″ Cast Iron Pump with 5.5 HP Honda® Engine | 5.5 HP | — | |
| 200PIH5E | 2″ Cast Iron Pump with 5.5 HP Honda® Engine with Electric Start | 5.5 HP | (Made to Order) | |
| 2″ Cast Iron Pump Only | ||||
| 2″ Cast Iron Bearing Pedestal | ||||
| 200PBI | 2″ Cast Iron Bearing Pedestal with 3/4″ Straight Shaft* (Note:*3/4″ straight shaft for long coupling to electric motors) | N/A | (Made to Order) | |
| 2″ Cast Iron C-Flange Pumps | ||||
| 200POICF5/8 | 2″ Cast Iron C-Flange Pump with 5.8″ Shaft Sleeve | N/A | (Made to Order) | |
| 200POICF7/8 | 2″ Cast Iron C-Flange Pump with 7.8″ Shaft Sleeve | N/A | (Made to Order) | |
* Recommendation for 5/8″ Shaft: 56C Frame Size, 3 HP, 3450 RPM, & 5″ Max Impeller for close coupling to electric motors. 7/8″ Shaft: 145TC Frame Size, 3 HP, 3450 RPM, & 5″ Max Impeller for close coupling to electric motors.
 | |||
|---|---|---|---|
| Replacement Parts for 2″ Cast Iron Pumps | |||
| Item | Part Number | Description | Quantity Required |
| 1 | 17000 | Threaded Outlet Flange | 1 |
| 1 | M17000 | 2″ Manifold Outlet Flange | 1 |
| 2 | 17002 | Threaded Inlet Flange | 1 |
| 2 | M17002 | 2″ Manifold Inlet Flange | 1 |
| 3 | 17004 | Adapter for Gas Engine | 1 |
| 3 | 17046 | C-Flange Adapter | 1 |
| 4 | 17005 | 5/8″ Sleeve Drive for Electric Motor | 1 |
| 4 | 17006* | 3/4″ Sleeve Drive | 1 |
| 4 | 17007 | 7/8″ Sleeve Drive for Electric Motor | 1 |
| 5 | 17008* | 5″ Impeller | 1 |
| 5 | 17008-4.1 | 4.1″ Trimmed Impeller | 1 |
| 6 | 17010 | 1/2″ Hex Nut | 1 |
| 7 | 17011 | Wear Plate | 1 |
| 8 | 17013 | EPDM Gasket | 1 |
| 9 | 17016 | Check Valve Assembly | 1 |
| 10 | 17018 | Gasket Adapter | 1 |
| 11 | 15022 | Handle | 1 |
| 12 | 17023 | 5/8″ Clamp for 3/4″ Shaft Assembly (Old Style) | 1 |
| 12 | 17123 | 5/8″ Clamp for 3/4″ Shaft Assembly (Keyed) | 1 |
| 12 | 17024 | 7/8″ Clamp for Shaft Assembly | 1 |
| 13 | 17026 | Pump Housing | 1 |
| 14 | V10118 | 5/16″ Lock Washer | 18 |
| 15 | V10119 | 5/16″ – 18 SS Hex Nut | 6 |
| Not Shown | 12882R | Housing | 1 |
| Not Shown | 12883R | Bearing Pedestal with 3/4″ Shaft Only | 1 |
| Not Shown | 12884 | Internal Retaining Clip for Pedestal | 1 |
| Not Shown | 12883B | Bearings | 2 |
| 16 | 12882A | Complete Pedestal Assembly | 1 |
| 17 | 17040 | 5.16″-24 x 1.00″ Cap Screw | 4 |
| 18 | 17028 | EPDM Seal Assembly | 1 |
| 18 | 17035* | FKM (viton type) Seal Assembly | 1 |
| 18 | 17035SD | Severe Duty Seal | 1 |
| 19 | 17042 | Stud | 6 |
| 20 | 17019 | 5/16″-18 x 3/4″ Cap Screw | 8 |
| 21 | 17009B | 5/8″ Impeller Nut | 1 |
| 22 | 17130 | 5/16-18 x 1.00″ FHSCS, 18-8 SS | 2 |
| 23 | 12777 | 1/2″ Plug | 1 |
| 24 | UV15163 | O-Ring | 1 |
| Not Shown | 17033 | Z Rails (Pair) | 1 |
| Not Shown | 17100 | Repair Kit (Consists of items 4*, 5*, 7,10,18*) | 1 |
