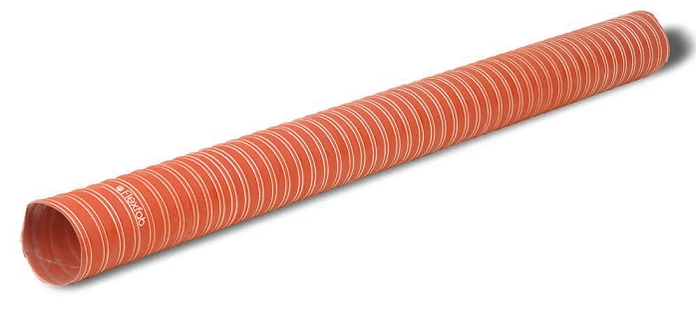

2005-250 By FlexFab | Series 2005 | 2-ply Industrial SIL-FAB2™ Wire Reinforced Duct | 2.50″ ID | 2.64″ OD | 12ft Length

Original price was: $114.88.Current price is: $80.42.

Overview:
Comes in 12′ Lengths 2-Ply Silicone-coated fiberglass fabric with Nylon Rod Reinforcement (No cuffs)
Construction:
Double-Ply, Silicone-Coated Woven Fiberglass Hose Chemically treated, helically wound, spring steel wire for flexibility Double, continuous filament, silicone treated fiberglass cord
Specifications:
Vulcanized for long service life Lightweight, non-kinking Bend radius equals the inside diameter for hoses Temperature range is -65°F (-54°C) to +500°F (+260°C) Working pressure is 1/3 of the burst pressure
Applications:
Designed for medium pressure handling of air, dust, fumes, and light powders Not recommended for handling liquids or abrasive materials Not recommended for charge air applications

Part Number	Inside Diameter	Outside Diameter	Burst PressurePSI	Max. Leakage.CFM	Max. Neg.PSI	WallThickness	WeightOZ/FT
2005-100	1.00″	1.14″	180 PSI	0.015	15 PSI	0.07	2.00 oz/ft
2005-125	1.25″	1.39″	180 PSI	0.015	15 PSI	0.07	2.50 oz/ft
2005-150	1.50″	1.64″	165 PSI	0.015	13 PSI	0.07	3.00 oz/ft
2005-175	1.75″	1.89″	165 PSI	0.02	13 PSI	0.07	3.50 oz/ft
2005-200	2.00″	2.14″	150 PSI	0.02	10 PSI	0.07	4.00 oz/ft
2005-225	2.25″	2.39″	150 PSI	0.02	10 PSI	0.07	4.50 oz/ft
2005-250	2.50″	2.64″	135 PSI	0.025	8 PSI	0.07	5.00 oz/ft
2005-275	2.75″	2.89″	135 PSI	0.025	8 PSI	0.07	6.00 oz/ft
2005-300	3.00″	3.14″	135 PSI	0.03	7 PSI	0.07	6.20 oz/ft
2005-325	3.25″	3.39″	135 PSI	0.03	6 PSI	0.07	6.70 oz/ft
2005-350	3.50″	3.64″	120 PSI	0.035	6 PSI	0.07	7.20 oz/ft
2005-375	3.75″	3.89″	120 PSI	0.035	5 PSI	0.07	7.80 oz/ft
2005-400	4.00″	4.14″	120 PSI	0.04	5 PSI	0.08	8.40 oz/ft
2005-450	4.50″	4.64″	105 PSI	0.05	4 PSI	0.08	9.60 oz/ft
2005-500	5.00″	5.14″	105 PSI	0.06	4 PSI	0.08	10.70 oz/ft
2005-550	5.50″	5.64″	90 PSI	0.08	3 PSI	0.08	11.80 oz/ft
2005-600	6.00″	6.14″	90 PSI	0.1	3 PSI	0.08	13.00 oz/ft
2005-800	8.00″	8.14″	45 PSI	0.15	3 PSI	0.08	17.80 oz/ft
2005-1000	10.00″	10.14″	24 PSI	0.2	2 PSI	0.08	22.60 oz/ft
2005-1200	12.00″	12.14″	12 PSI	0.3	2 PSI	0.08	27.10 oz/ft

*Specifications for reference only. Specific test data available on request.
