Sale!

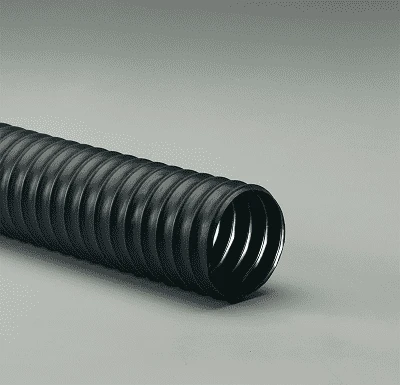

2-T-7SR-25 By Flexaust | #8351020025 | T-7SR Series | Air, Fume, Dust, And Material Handling Duct Hose | 2 Inch | 25ft

Original price was: $105.00.Current price is: $73.50.

SPECIFICATIONS

Other Features:
Applications:	Aluminum Refractory, Cotton Picking	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Black thermoplastic rubber
Reinforcement:	coated super reinforced non-woven polyester fabric hose with a spring steel wire helix	Cover:	N/A
Temperature Range:	-50 deg. F to 285 deg. F Intermittent to 325 deg.	Crimp Fittings:	N/A
Reusable Fittings:	N/A
Combines the ozone, UV, weathering, & chemical resistance of thermoplastic rubber with the tensile strength & fatigue resistance of fabric hoses. Offers better tear strength, puncture, & abrasion resistance than traditional reinforced woven neoprene & thermoplastic hoses. Handles higher positive pressures than non-reinforced thermoplastic rubber hoses.

Part Number 25 ft Reels	Part Number 50 ft Reels	Inside Diameter	Wall Thickness (In)	Centerline Bend Radius (In)	Compression Ratio	Negative Pressure (In/Hg)	Working Pressure (PSI)	Weight – 25ft (Lbs/Ft)	Weight – 50ft (Lbs/Ft)
T-7SR 2in	T-7SR 2in	2″	.020″	2.75″	3:1	29	50	5.5 lbs	11 lbs
T-7SR 2.25in	T-7SR 2.25in	2.25″	N/A	N/A	N/A	N/A	N/A	N/A	N/A
T-7SR 2.5in	T-7SR 2.5in	2.5″	.020″	2.8″	3:1	29	30	6.5 lbs	13 lbs
T-7SR 3in	T-7SR 3in	3″	.020″	3″	3:1	29	29	8.25 lbs	16.5 lbs
T-7SR 3.5in	T-7SR 3.5in	3.5″	.020″	3.2″	4:1	29	27	10 lbs	20 lbs
T-7SR 4in	T-7SR 4in	4″	.020″	3.5″	4:1	29	25	12.5 lbs	25 lbs
T-7SR 4.5in	T-7SR 4.5in	4.5″	.020″	4″	4:1	29	23	13.75 lbs	27.5 lbs
T-7SR 5in	T-7SR 5in	5″	.020″	5″	4:1	29	22	15.75 lbs	31.5 lbs
T-7SR 5.5in	T-7SR 5.5in	5.5″	N/A	N/A	N/A	N/A	N/A	N/A	N/A
T-7SR 6in	T-7SR 6in	6″	.020″	6″	4:1	14	16	17.5 lbs	35 lbs
T-7SR 7in	T-7SR 7in	7″	.020″	7″	4:1	10	14	21.25	42.5
T-7SR 8in	T-7SR 8in	8″	.020″	7.5″	4:1	8	12	25 lbs	50 lbs
T-7SR 9in	T-7SR 9in	9″	N/A	N/A	N/A	N/A	N/A	N/A	N/A
T-7SR 10in	T-7SR 10in	10″	.020″	9″	4:1	7	9	31.25 lbs	62.5 lbs
T-7SR 12in	T-7SR 12in	12″	.020″	10″	4:1	4	8	43.75 lbs	87.5 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.
