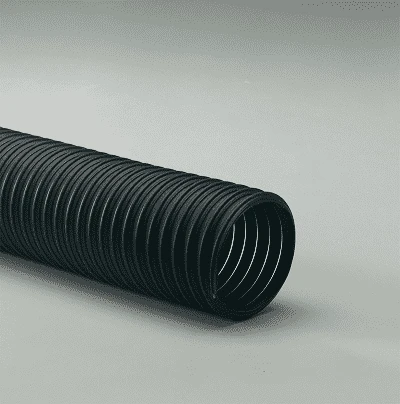

2-HT-25 By Flexaust | #8511020025 | HT | Material Handling Duct Hose | 2 Inch | 25ft
Original price was: $89.33.$62.53Current price is: $62.53.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
SPECIFICATIONS
| Applications: | Foundry Sand Transfer, Granule Transport, Hull Sanding Equipment, Ozone, Peat Moss Vacuum, Sand & Gravel Suction, Street & Parking Lot Sweepers, Wave Pool Blowers | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Heavy weight black thermoplastic rubber |
| Reinforcement: | Spring steel wire helix | Cover: | N/A |
| Temperature Range: | -60 deg. F to 275 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | ||
| Other Features: | |||
| |||
| Part Number 25 ft Reels | Part Number 50 ft Reels | Inside Diameter | Wall Thickness (In) | Centerline Bend Radius (In) | Compression Ratio | Negative Pressure (In/Hg) | Working Pressure (PSI) | Weight – 25ft (Lbs/Ft) | Weight – 50ft (Lbs/Ft) |
|---|---|---|---|---|---|---|---|---|---|
| HT 1.5in | HT 1.5in | 1.5″ | .035″ | 2″ | 2:1 | 29 | 30 | 6.75 lbs | 35 lbs |
| HT 2in | HT 2in | 2″ | .035″ | 3.29″ | 2:1 | 29 | 24 | 8.5 lbs | 17 lbs |
| HT 2.5in | HT 2.5in | 2.5″ | .035″ | 3.77″ | 2:1 | 29 | 19 | 9 lbs | 18 lbs |
| HT 3in | HT 3in | 3″ | .035″ | 4.25″ | 2:1 | 29 | 16 | 12.5 lbs | 25 lbs |
| HT 4in | HT 4in | 4″ | .045″ | 4.75″ | 2:1 | 29 | 12 | 18 lbs | 36 lbs |
| HT 5in | HT 5in | 5″ | .045″ | 5″ | 2:1 | 16 | 10 | 22.25 lbs | 44.5 lbs |
| HT 6in | HT 6in | 6″ | .045″ | 5.25″ | 3:1 | 8.3 | 9 | 26.25 lbs | 52.5 lbs |
| HT 8in | HT 8in | 8″ | .054″ | 6.9″ | 3:1 | 3.4 | 7 | 35 lbs | 70 lbs |
| HT 10in | HT 10in | 10″ | .054″ | 8″ | 3:1 | 3.4 | 6 | 53 lbs | 106 lbs |
| HT 12in | HT 12in | 12″ | .054″ | 10 | 3:1 | 2 | 5.5 | 62.5 lbs | 125 lbs |
| HT 14in | HT 14in | 14″ | .054″ | 12″ | 3:1 | .72 | 5.2 | 67.5 lbs | 135 lbs |
| HT 16in | HT 16in | 16″ | .054″ | 14″ | 3:1 | .5 | 4.6 | 75 lbs | 150 lbs |
Technical data based on 2 ft. straight lengths of hose @ 72 deg.
