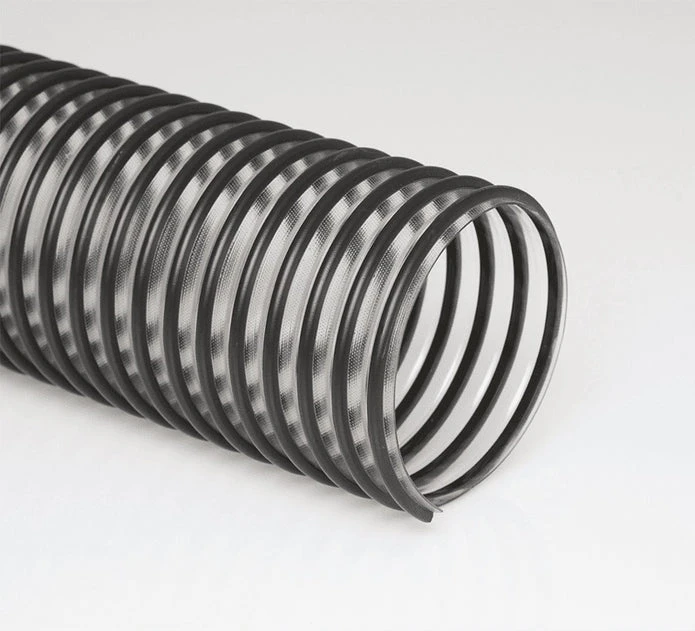

2.5-Flex-Tube-PV-12 By Flexaust | #3504025012 | Flex-Tube PV | Air, Fume, And Dust Duct Hose | 2.5 Inch | 12ft
Original price was: $48.32.$33.82Current price is: $33.82.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
SPECIFICATIONS
| Applications: | Industrial Vacuum Cleaners, Lawn & Leaf Collection, Pharmaceutical, Woodworking/Furniture Industry | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Medium weight clear co-extruded PVC |
| Reinforcement: | Rigid black external PVC helix | Cover: | N/A |
| Temperature Range: | 20 deg. F to 160 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | ||
| Other Features: | |||
| |||
| Part Number 12 ft Reels | Part Number 25 ft Reels | Inside Diameter | Wall Thickness (In) | Centerline Bend Radius (In) | Compression Ratio | Negative Pressure (In/Hg) | Working Pressure (PSI) | Weight – 12ft (Lbs/Ft) | Weight – 25ft (Lbs/Ft) |
|---|---|---|---|---|---|---|---|---|---|
| Flx-Tube PV 2in | Flx-Tube PV 2in | 2″ | .030″ | 2.2″ | 2:1 | 27 | 28 | 3.84 lbs | 8 lbs |
| Flx-Tube PV 2.5in | Flx-Tube PV 2.5in | 2.5″ | .030″ | 3.1″ | 2:1 | 26 | 25 | 4.8 lbs | 10 lbs |
| Flx-Tube PV 3in | Flx-Tube PV 3in | 3″ | .030″ | 3.7″ | 2:1 | 22 | 18 | 6 lbs | 12.5 lbs |
| Flx-Tube PV 4in | Flx-Tube PV 4in | 4″ | .032″ | 4″ | 2:1 | 14 | 16 | 8.64 lbs | 18 lbs |
| Flx-Tube PV 5in | Flx-Tube PV 5in | 5″ | .035″ | 5.25″ | 2:1 | 12 | 17 | 11.04 lbs | 23 lbs |
| Flx-Tube PV 6in | Flx-Tube PV 6in | 6″ | .035″ | 6.25″ | 2:1 | 10 | 12 | 13.32 lbs | 27.75 lbs |
| Flx-Tube PV 7in | Flx-Tube PV 7in | 7″ | .035″ | 7″ | 2:1 | 10 | 11 | 15.84 lbs | 33 lbs |
| Flx-Tube PV 8in | Flx-Tube PV 8in | 8″ | .035″ | 8″ | 2:1 | 6 | 10 | 18 lbs | 37.5 lbs |
| Flx-Tube PV 9in | Flx-Tube PV 9in | 9″ | .040″ | 9.25″ | 2:1 | 5 | 9 | 19.8 lbs | 41.25 lbs |
| Flx-Tube PV 10in | Flx-Tube PV 10in | 10″ | .040″ | 9.5″ | 2:1 | 4 | 7 | 22.2 lbs | 46.25 lbs |
Technical data based on 2 ft. straight lengths of hose @ 72 deg.
