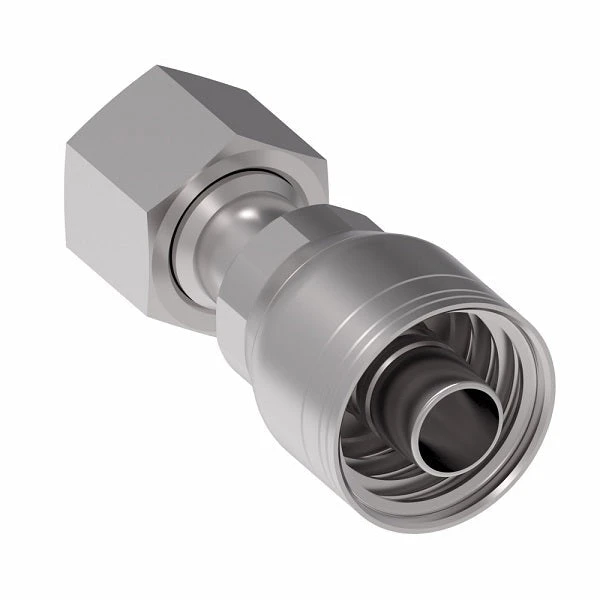

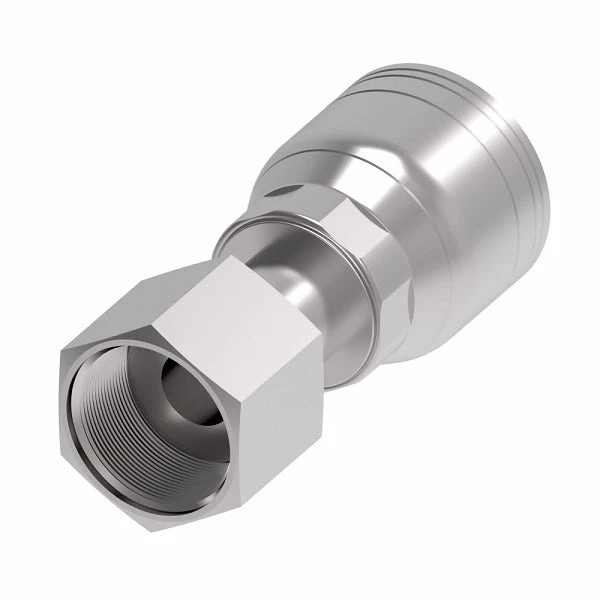

1AA20FR16 Aeroquip By Danfoss | 1 & 2 Wire TTC Female ORS Swivel (FR) Crimp Fitting | -20 Female O-Ring Face Seal Swivel X -16 Hose Barb | Steel
Original price was: $46.05.$32.24Current price is: $32.24.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Technical Info: | |||
|---|---|---|---|
|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Zinc-Nickel Plated Steel Part Number |
Thread | Hose Size | A | D | EØ | Hex 1
|
Hex 2
|
| 1AA4FR4 | 1AA4FR4TZ | 9/16-18 | -04 | 1.95″ | 1.03″ | 0.17″ | 11/16″ | 9/16″ |
| 1AA6FR4 | – | 11/16-16 | -04 | 2.04″ | 1.12″ | 0.17″ | 13/16″ | 9/16″ |
| 1AA8FR4 | – | 13/16-16 | -04 | 2.06″ | 1.28″ | 0.16″ | 13/16″ | 15/16″ |
| 1AA4FR6 | – | 9/16-18 | -06 | 2.14″ | 1.15″ | 0.17″ | 11/16″ | 11/16″ |
| 1AA6FR6 | – | 11/16-16 | -06 | 2.07″ | 1.24″ | 0.26″ | 13/16″ | 11/16″ |
| 1AA8FR6 | – | 13/16-16 | -06 | 2.14″ | 1.32″ | 0.26″ | 15/16″ | 11/16″ |
| 1AA6FR8 | – | 11/16-16 | -08 | 2.41″ | 1.34″ | 0.26″ | 13/16″ | 7/8″ |
| 1AA8FR8 | – | 13/16-16 | -08 | 2.61″ | 1.50″ | 0.36″ | 15/16″ | 7/8″ |
| 1AA10FR8 | – | 1-14 | -08 | 2.57″ | 1.47″ | 0.38″ | 1-1/8″ | 7/8″ |
| 1AA12FR8 | – | 1-3/16-16 | -08 | 2.80″ | 1.63″ | 0.38″ | 1-3/8″ | 1-1/8″ |
| 1AA8FR10 | – | 13/16-16 | -10 | 2.67″ | 1.51″ | 0.38″ | 15/16″ | 15/16″ |
| 1AA10FR10 | – | 1-14 | -10 | 2.62″ | 1.61″ | 0.45″ | 1-1/8″ | 1-1/16″ |
| 1AA12FR10 | – | 1-3/16-12 | -10 | 2.65″ | 1.63″ | 0.50″ | 1-3/8″ | 1-1/16″ |
| 1AA10FR12 | – | 1-14 | -12 | 2.81″ | 1.62″ | 0.48″ | 1-1/8″ | 1-1/8″ |
| 1AA12FR12 | – | 1-3/16-12 | -12 | 2.91″ | 1.72″ | 0.61″ | 1-3/8″ | 1-1/8″ |
| 1AA12FR16 | – | 1-3/16-12 | -16 | 3.22″ | 1.86″ | 0.61″ | 1-3/8″ | 1-3/8″ |
| 1AA16FR12 | – | 1-7/16-12 | -12 | 2.98″ | 1.79″ | 0.61″ | 1-5/8″ | 1-3/8″ |
| 1AA16FR16 | 1AA16FR16TZ | 1-7/16-12 | -16 | 3.29″ | 1.94″ | 0.81″ | 1-5/8″ | 1-3/8″ |
| 1AA16FR20 | – | 1-7/16-12 | -20 | – | – | – | – | – |
| 1AA20FR16 | – | 1-11/16-12 | -16 | 3.25″ | 1.90″ | 0.81″ | 1-7/8″ | 1-5/8″ |
| 1AA20FR20 | – | 1-11/16-12 | -20 | 4.07″ | 2.33″ | 1.02″ | 1-7/8″ | 1-3/4″ |
| 1AA24FR20 | – | 2-12 | -20 | 3.88″ | 2.15″ | 1.05″ | 2-1/4″ | 1″ |
| 1AA24FR24 | – | 2-12 | -24 | 4.02″ | 2.19″ | 1.26″ | 2-1/4″ | 2″ |
