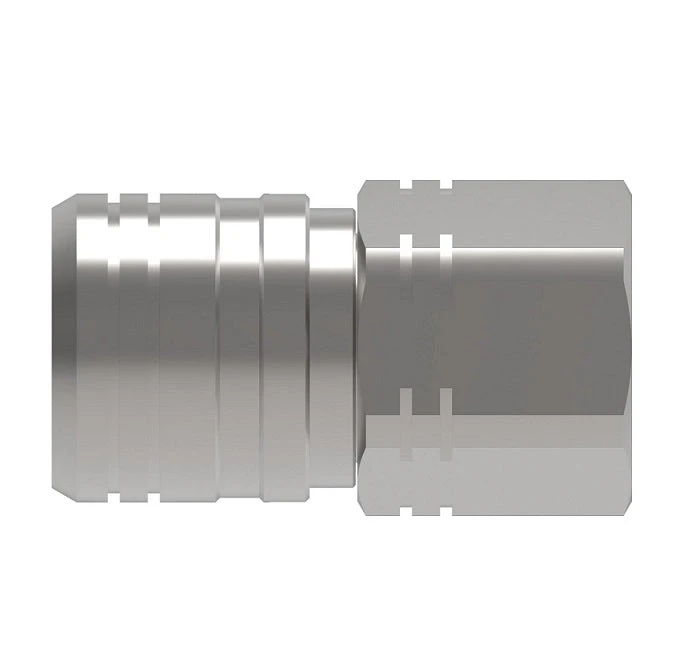

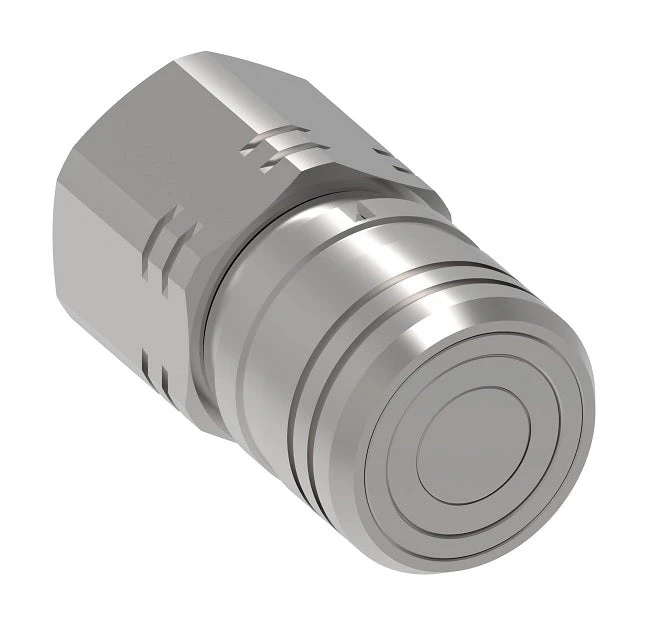

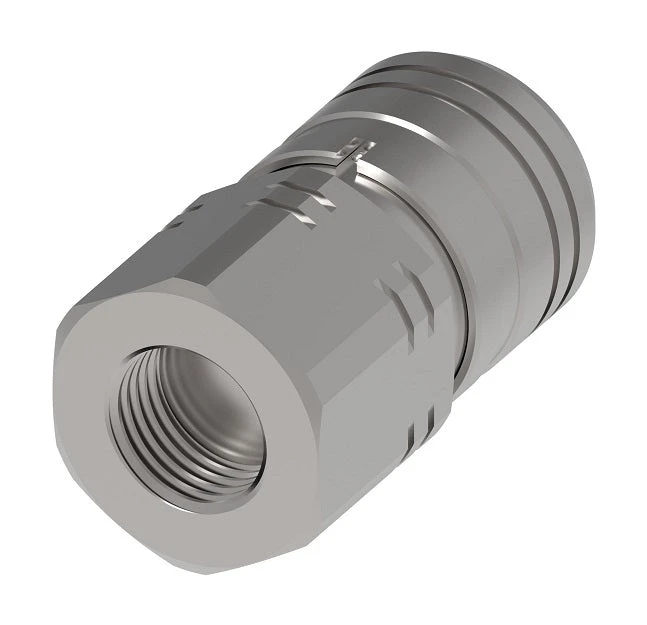

19FFS100BS Hansen® By Danfoss | Quick Disconnect Coupling | FF Series | 1″ Female BSPP X 3/4″ ISO 16028 Flat Face | Socket | NBR+AU Seal | Steel
Original price was: $114.34.$80.04Current price is: $80.04.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
| Product Features: |
|
|---|---|
| Applications & Markets: |
|
| Materials: |
|
| Specifications: |
|
| European Pressure Equipment Directive: |
|
| ISO Size* | Coupling Size | Max. Operating Pressure | Min. Burst Pressure | Rated Flow** | Fluid Loss | Air Inclusion | Force to Connect | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Connected*** | Plug (Male Half) | Socket (Female Half) | Connected | Plug (Male Half) | Socket (Female Half) | ||||||||||||||
| 6.3mm | 1/4″ | 400 bar | 5,800 psi | 400 bar | 5,800 psi | 400 bar | 5,800 psi | 1,400 bar | 20,300 psi | 1,400 bar | 20,300 psi | 1,400 bar | 20,300 psi | 18 lpm | 4.8 gpm | 0.004 ml-cc | 0.007 ml-cc | 80 N | 18.0 lbs |
| 10.0mm | 3/8″ | 400 bar | 5,800 psi | 400 bar | 5,800 psi | 400 bar | 5,800 psi | 1,400 bar | 20,300 psi | 1,400 bar | 20,300 psi | 1,400 bar | 20,300 psi | 40 lpm | 10.6 gpm | 0.006 ml-cc | 0.010 ml-cc | 140 N | 31.5 lbs |
| 12.5mm | 1/2″ | 400 bar | 5,800 psi | 400 bar | 5,800 psi | 400 bar | 5,800 psi | 1,400 bar | 20,300 psi | 1,400 bar | 20,300 psi | 1,400 bar | 20,300 psi | 77 lpm | 20.3 gpm | 0.012 ml-cc | 0.013 ml-cc | 195 N | 43.8 lbs |
| 16.0mm | 5/8″ | 400 bar | 5,800 psi | 400 bar | 5,800 psi | 400 bar | 5,800 psi | 1,400 bar | 20,300 psi | 1,400 bar | 20,300 psi | 1,400 bar | 20,300 psi | 82 lpm | 21.7 gpm | 0.016 ml-cc | 0.030 ml-cc | 205 N | 46.1 lbs |
| 19.0mm | 3/4″ | 400 bar | 5,800 psi | 400 bar | 5,800 psi | 400 bar | 5,800 psi | 1,300 bar | 18,850 psi | 1,300 bar | 18,850 psi | 1,400 bar | 20,300 psi | 114 lpm | 30.1 gpm | 0.034 ml-cc | 0.015 ml-cc | 215 N | 48.3 lbs |
| 25.0mm | 1″ | 400 bar | 5,800 psi | 400 bar | 5,800 psi | 400 bar | 5,800 psi | 1,260 bar | 18,270 psi | 1,260 bar | 18,270 psi | 1,260 bar | 18,270 psi | 184 lpm | 48.6 gpm | 0.032 ml-cc | 0.033 ml-cc | 260 N | 58.5 lbs |
| – | 1-1/4″ | 300 bar | 4,350 psi | 300 bar | 4,350 psi | 300 bar | 4,350 psi | 900 bar | 13,050 psi | 900 bar | 13,050 psi | 900 bar | 13,050 psi | 260 lpm | 68.7 gpm | 0.170 ml-cc | 0.053 ml-cc | 200 N | 45.0 lbs |
| – | 1-1/2″ | 300 bar | 4,350 psi | 300 bar | 4,350 psi | 270 bar | 3,915 psi | 900 bar | 13,050 psi | 900 bar | 13,050 psi | 810 bar | 11,745 psi | 450 lpm | 118.9 gpm | 0.265 ml-cc | 0.445 ml-cc | 385 N | 86.6 lbs |
| – | 2″ | 300 bar | 4,350 psi | 300 bar | 4,350 psi | 225 bar | 3,260 psi | 900 bar | 13,050 psi | 900 bar | 13,050 psi | 675 bar | 9,790 psi | 700 lpm | 184.9 gpm | 0.390 ml-cc | 0.260 ml-cc | 375 N | 84.3 lbs |
* The ISO size corresponds to the internal diameter of the hose or the external diameter of the rigid tube (as defined in ISO 4397 Standard)
** Indicated values refer to a 1 bar/14.5 psi pressure drop
*** 400 bar for static, steady or non-pulsed applications, 350 bar for ISO pressure rating for dynamic applications with moderate hydraulic shock
| Maximum Operating Pressure | |||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Non hazardous Liquids Group 2 | Non hazardous Liquids Group 2 | Hazardous Liquids Group 1 | |||||||||||||||||||||||||||||||||||||||||
| Coupling Size | Nominal Flow Diameter | Plug & Connected | Socket | Plug & Connected | Socket | Plug & Connected | Socket | ||||||||||||||||||||||||||||||||||||
| 1-1/2″ | 30.1 | 300 bar | 4350 psi | 270 bar | 3915 psi | 300 bar | 4350 psi | 270 bar | 3915 psi | 66 bar | 955 psi | 66 bar | 955 psi | ||||||||||||||||||||||||||||||
| 2 | 39.2 | 300 bar | 4350 psi | 225 bar | 3260 psi | 25 bar | 360 psi | 25 bar | 360 psi | 50 bar | 725 psi | 50 bar | 725 psi | ||||||||||||||||||||||||||||||
*Nominal diameters over 25mm should not be used to convey gases in group 1 (PED 2014/68/EU)
| Seal Elastomer Data* | |||
|---|---|---|---|
| Seal Elastomer | P/N Code | ISO Size (6FF, 10FF, 12FF, 16FF, 19FF and 25FF) Maximum Operation Temperature Range | Non-ISO Size (32FF, 50FF and 50FF) Maximum Operation Temperature Range |
| NBR (Nitrile) + AU (Polyurethane) | – | -25°C +100°C/-13°F +212°F | -20°C +100°C/-4°F +212°F |
| FKM | -143 | -20°C +200°C/-4°F +392°F | -15°C +180°C/+5°F +356°F |
* For reference only, based on Danfoss recommended temperatures.
 |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Plug/Male (Figure 2) |
||||||||||||
| FF Series | Plugs | ||||||||||||
| Steel Part Number |
Steel Part Number |
Body Size | ISO Size | Nominal Flow Diameter | Type | Thread | Figure | Dimensions | ||||
| NBR+AU Seal | FKM Seal | D | E | F | G | Hex | ||||||
| 6FFP25 | 6FFP25143 | 1/4″ | 6.3mm | 6mm | Plug/Male | 1/4-18f Female NPT | 2 | 2.01″ (51mm) |
0.64″ (16.2mm) |
0.94″ (24mm) |
1.58″ (40.1mm) |
0.87″ (22mm) |
| 6FFP56UN | – | 1/4″ | 6.3mm | 6mm | Plug/Male | 9/16-18f Female UNF SAE J1926-1 | 2 | 2.05″ (52mm) |
0.64″ (16.2mm) |
0.94″ (24mm) |
1.62″ (41.1mm) |
0.87″ (22mm) |
| 10FFP37 | – | 3/8″ | 10mm | 8.6mm | Plug/Male | 3/8-18f Female NPT | 2 | 2.56″ (65mm) |
0.78″ (19.7mm) |
1.16″ (29.5mm) |
1.96″ (49.7mm) |
1.06″ (27mm) |
| 10FFP37BS | – | 3/8″ | 10mm | 8.6mm | Plug/Male | 3/8-19 Female BSPP | 2 | 2.56″ (65mm) |
0.78″ (19.7mm) |
1.16″ (29.5mm) |
1.96″ (49.7mm) |
1.06″ (27mm) |
| 10FFP50 | – | 3/8″ | 10mm | 8.6mm | Plug/Male | 1/2-14f Female NPT | 2 | 2.68″ (68mm) |
0.78″ (19.7mm) |
1.16″ (29.5mm) |
2.08″ (52.7mm) |
1.06″ (27mm) |
| 10FFP50BS | – | 3/8″ | 10mm | 8.6mm | Plug/Male | 1/2-14 Female BSPP | 2 | 2.68″ (68mm) |
0.78″ (19.7mm) |
1.16″ (29.5mm) |
2.08″ (52.7mm) |
1.06″ (27mm) |
| 10FFP56UN | – | 3/8″ | 10mm | 8.6mm | Plug/Male | 9/16-18f Female UNF SAE J1926-1 | 2 | 2.68″ (68mm) |
0.78″ (19.7mm) |
1.16″ (29.5mm) |
2.08″ (52.7mm) |
1.06″ (27mm) |
| 10FFP75UN | – | 3/8″ | 10mm | 8.6mm | Plug/Male | 3/4-16f Female UNF SAE J1926-1 | 2 | 2.68″ (68mm) |
0.78″ (19.7mm) |
1.16″ (29.5mm) |
2.08″ (52.7mm) |
1.06″ (27mm) |
| 10FFP87UN | – | 3/8″ | 10mm | 8.6mm | Plug/Male | 7/8-14f Female UNF SAE J1926-1 | 2 | 2.80″ (71mm) |
0.78″ (19.7mm) |
1.30″ (33mm) |
2.19″ (55.7mm) |
1.18″ (30mm) |
| 12FFP106UN | – | 1/2″ | 12.5mm | 11mm | Plug/Male | 1-1/1612f Female UNF SAE J1926-1 | 2 | 2.95″ (75mm) |
0.96″ (24.5mm) |
1.56″ (39.5mm) |
2.28″ (58mm) |
1.42″ (36mm) |
| 12FFP50 | 12FFP50143 | 1/2″ | 12.5mm | 11mm | Plug/Male | 1/2-14f Female NPT | 2 | 2.71″ (69mm) |
0.96″ (24.5mm) |
1.56″ (39.5mm) |
2.05″ (52mm) |
1.42″ (36mm) |
| 12FFP50BS | 12FFP50BS143 | 1/2″ | 12.5mm | 11mm | Plug/Male | 1/2-14 Female BSPP | 2 | 2.71″ (69mm) |
0.96″ (24.5mm) |
1.56″ (39.5mm) |
2.05″ (52mm) |
1.42″ (36mm) |
| 12FFP75 | – | 1/2″ | 12.5mm | 11mm | Plug/Male | 3/4-14f Female NPT | 2 | 2.83″ (72mm) |
0.96″ (24.5mm) |
1.56″ (39.5mm) |
2.16″ (55mm) |
1.42″ (36mm) |
| 12FFP75BS | – | 1/2″ | 12.5mm | 11mm | Plug/Male | 3/4-14 Female BSPP | 2 | 2.83″ (72mm) |
0.96″ (24.5mm) |
1.56″ (39.5mm) |
2.16″ (55mm) |
1.42″ (36mm) |
| 12FFP75UN | – | 1/2″ | 12.5mm | 11mm | Plug/Male | 3/4-16f Female UNF SAE J1926-1 | 2 | 2.71″ (69mm) |
0.96″ (24.5mm) |
1.56″ (39.5mm) |
2.05″ (52mm) |
1.42″ (36mm) |
| 12FFP87UN | – | 1/2″ | 12.5mm | 11mm | Plug/Male | 7/8-14f Female UNF SAE J1926-1 | 2 | 2.83″ (72mm) |
0.96″ (24.5mm) |
1.56″ (39.5mm) |
2.16″ (55mm) |
1.42″ (36mm) |
| 16FFP106UN | – | 5/8″ | 16mm | 13mm | Plug/Male | 1-1/16-12f Female UNF SAE J1926-1 | 2 | 2.95″ (75mm) |
1.06″ (27mm) |
1.56″ (39.5mm) |
2.28″ (58mm) |
1.42″ (36mm) |
| 16FFP50 | – | 5/8″ | 16mm | 13mm | Plug/Male | 1/2-14f Female NPT | 2 | 2.71″ (69mm) |
1.06″ (27mm) |
1.56″ (39.5mm) |
2.05″ (52mm) |
1.42″ (36mm) |
| 16FFP75 | – | 5/8″ | 16mm | 13mm | Plug/Male | 3/4-14f Female NPT | 2 | 2.83″ (72mm) |
1.06″ (27mm) |
1.56″ (39.5mm) |
2.16″ (55mm) |
1.42″ (36mm) |
| 16FFP75BS | – | 5/8″ | 16mm | 13mm | Plug/Male | 3/4-14 Female BSPP | 2 | 2.83″ (72mm) |
1.06″ (27mm) |
1.56″ (39.5mm) |
2.16″ (55mm) |
1.42″ (36mm) |
| 16FFP75UN | – | 5/8″ | 16mm | 13mm | Plug/Male | 3/4-16f Female UNF SAE J1926-1 | 2 | 2.71″ (69mm) |
1.06″ (27mm) |
1.56″ (39.5mm) |
2.05″ (52mm) |
1.42″ (36mm) |
| 16FFP87UN | – | 5/8″ | 16mm | 13mm | Plug/Male | 7/8-14f Female UNF SAE J1926-1 | 2 | 2.83″ (72mm) |
1.06″ (27mm) |
1.56″ (39.5mm) |
2.16″ (55mm) |
1.42″ (36mm) |
| 19FFP100 | – | 3/4″ | 19mm | 15mm | Plug/Male | 1-11-1/2f Female NPT | 2 | 3.69″ (93.8mm) |
1.18″ (29.9mm) |
1.81″ (46mm) |
2.84″ (72mm) |
1.65″ (42mm) |
| 19FFP100BS | – | 3/4″ | 19mm | 15mm | Plug/Male | 1-11 Female BSPP | 2 | 3.69″ (93.8mm) |
1.18″ (29.9mm) |
1.81″ (46mm) |
2.84″ (72mm) |
1.65″ (42mm) |
| 19FFP106UN | – | 3/4″ | 19mm | 15mm | Plug/Male | 1-1/16-12f Female UNF SAE J1926-1 | 2 | 3.69″ (93.8mm) |
1.18″ (29.9mm) |
1.81″ (46mm) |
2.84″ (72mm) |
1.65″ (42mm) |
| 19FFP131UN | – | 3/4″ | 19mm | 15mm | Plug/Male | 1-5/16-12f Female UNF SAE J1926-1 | 2 | 3.69″ (93.8mm) |
1.18″ (29.9mm) |
1.81″ (46mm) |
2.84″ (72mm) |
1.65″ (42mm) |
| 19FFP75 | 19FFP75143 | 3/4″ | 19mm | 15mm | Plug/Male | 3/4-14f Female NPT | 2 | 3.69″ (93.8mm) |
1.18″ (29.9mm) |
1.81″ (46mm) |
2.84″ (72mm) |
1.65″ (42mm) |
| – | 19FFP75BS143 | 3/4″ | 19mm | 15mm | Plug/Male | 3/4-14 Female BSPP | 2 | 3.69″ (93.8mm) |
1.18″ (29.9mm) |
1.81″ (46mm) |
2.84″ (72mm) |
1.65″ (42mm) |
| 25FFP100 | – | 1″ | 25mm | 18mm | Plug/Male | 1-11-1/2f Female NPT | 2 | 4.12″ (104.6mm) |
1.42″ (36mm) |
2.36″ (60mm) |
3.22″ (81.7mm) |
2.17″ (55mm) |
| 25FFP100BS | – | 1″ | 25mm | 18mm | Plug/Male | 1-11 Female BSPP | 2 | 4.12″ (104.6mm) |
1.42″ (36mm) |
2.36″ (60mm) |
3.22″ (81.7mm) |
2.17″ (55mm) |
| 25FFP125 | – | 1″ | 25mm | 18mm | Plug/Male | 1-1/4-11-1/2f Female NPT | 2 | 4.12″ (104.6mm) |
1.42″ (36mm) |
2.36″ (60mm) |
3.22″ (81.7mm) |
2.17″ (55mm) |
| 25FFP131UN | – | 1 “ | 25mm | 18mm | Plug/Male | 1-5/16-12f Female UNF SAE J1926-1 | 2 | 4.12″ (104.6mm) |
1.42″ (36mm) |
2.36″ (60mm) |
3.22″ (81.7mm) |
2.17″ (55mm) |
| 25FFP162UN | – | 1″ | 25mm | 18mm | Plug/Male | 1-5/8-12f Female UNF SAE J1926-1 | 2 | 4.12″ (104.6mm) |
1.42″ (36mm) |
2.36″ (60mm) |
3.22″ (81.7mm) |
2.17″ (55mm) |
| 32FFP125 | 32FFP125143 | 1-1/4″ | – | 22.1mm | Plug/Male | 1-1/4-11-1/2 Female NPT | 2 | 4.15″ (105.5mm) |
1.73″ (44mm) |
2.36″ (60mm) |
3.24″ (82.3mm) |
2.17″ (55mm) |
| 32FFP162UN | 32FFP162UN143 | 1-1/4″ | – | 22.1 | Plug/Male | 1-5/8-12 Female UNF SAE J1926-1 | 2 | 4.15″ (105.5mm) |
1.73″ (44mm) |
2.36″ (60mm) |
3.24″ (82.3mm) |
2.17″ (55mm) |
| 40FFP150 | 40FFP150143 | 1-1/2″ | – | 30.1mm | Plug/Male | 1-1/2-11-1/2 Female NPT | 2 | 4.13″ (105mm) |
2.24″ (57mm) |
2.61″ (66.3mm) |
3.01″ (76.5mm) |
2.36″ (60mm) |
| 40FFP187UN | 40FFP187UN143 | 1-1/2″ | – | 30.1mm | Plug/Male | 1-7/8-12 Female UNF SAE J1926-1 | 2 | 4.13″ (105mm) |
2.24″ (57mm) |
2.61″ (66.3mm) |
3.01″ (76.5mm) |
2.36″ (60mm) |
| 50FFP200 | – | 2″ | – | 39.2mm | Plug/Male | 2-11-1/2 Female NPT | 2 | 5.31″ (135mm) |
2.87″ (73mm) |
3.29″ (83.5mm) |
3.80″ (96.6mm) |
2.95″ (75mm) |
| 50FFP250UN | – | 2″ | – | 39.2mm | Plug/Male | 2-1/2-12 Female UNF SAE J1926-1 | 2 | 5.31″ (135mm) |
2.87″ (73mm) |
3.29″ (83.5mm) |
3.80″ (96.6mm) |
2.95″ (75mm) |
 |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Socket/Female (Figure 1) |
|||||||||||
| FF Series | Sockets | |||||||||||
| Steel Part Number |
Steel Part Number |
Body Size | ISO Size | Nominal Flow Diameter | Type | Thread | Figure | Dimensions | |||
| NBR+AU Seal | FKM Seal | A | B | C | Hex | ||||||
| 6FFS25 | 6FFS25143 | 1/4″ | 6.3mm | 6mm | Socket/Female | 1/4-18f Female NPT | 1 | 2.13″ (54mm) |
1.06″ (27mm) |
0.94″ (24mm) |
0.87″ (22mm) |
| 6FFS25BS | 6FFS25BS143 | 1/4″ | 6.3mm | 6mm | Socket/Female | 1/4-19 Female BSPP | 1 | 2.13″ (54mm) |
1.06″ (27mm) |
0.94″ (24mm) |
0.87″ (22mm) |
| 6FFS56UN | – | 1/4″ | 6.3mm | 6mm | Socket/Female | 9/16-18f Female UNF SAE J1926-1 | 1 | 2.17″ (55mm) |
1.06″ (27mm) |
0.94″ (24mm) |
0.87″ (22mm) |
| 10FFS37 | – | 3/8″ | 10mm | 8.6mm | Socket/Female | 3/8-18f Female NPT | 1 | 2.67″ (67.8mm) |
1.26″ (32mm) |
1.16″ (29.5mm) |
1.06″ (27mm) |
| 10FFS37BS | – | 3/8″ | 10mm | 8.6mm | Socket/Female | 3/8-19 Female BSPP | 1 | 2.67″ (67.8mm) |
1.26″ (32mm) |
1.16″ (29.5mm) |
1.06″ (27mm) |
| 10FFS50 | 10FFS50143 | 3/8″ | 10mm | 8.6mm | Socket/Female | 1/2-14f Female NPT | 1 | 2.79″ (70.8mm) |
1.26″ (32mm) |
1.16″ (29.5mm) |
1.06″ (27mm) |
| 10FFS50BS | – | 3/8″ | 10mm | 8.6mm | Socket/Female | 1/2-14 Female BSPP | 1 | 2.79″ (70.8mm) |
1.26″ (32mm) |
1.16″ (29.5mm) |
1.06″ (27mm) |
| 10FFS56UN | – | 3/8″ | 10mm | 8.6mm | Socket/Female | 9/16-18f Female UNF SAE J1926-1 | 1 | 2.79″ (70.8mm) |
1.26″ (32mm) |
1.16″ (29.5mm) |
1.06″ (27mm) |
| 10FFS75UN | – | 3/8″ | 10mm | 8.6mm | Socket/Female | 3/4-16f Female UNF SAE J1926-1 | 1 | 2.79″ (70.8mm) |
1.26″ (32mm) |
1.16″ (29.5mm) |
1.06″ (27mm) |
| 10FFS87UN | – | 3/8″ | 10mm | 8.6mm | Socket/Female | 7/8-14f Female UNF SAE J1926-1 | 1 | 2.91″ (73.8mm) |
1.26″ (32mm) |
1.30″ (33mm) |
1.18″ (30mm) |
| 12FFS106UN | – | 1/2″ | 12.5mm | 11mm | Socket/Female | 1-1/16-12f Female UNF SAE J1926-1 | 1 | 3.50″ (89mm) |
1.50″ (38.2mm) |
1.56″ (39.5mm) |
1.42″ (36mm) |
| 12FFS50 | 12FFS50143 | 1/2″ | 12.5mm | 11mm | Socket/Female | 1/2-14f Female NPT | 1 | 3.27″ (83mm) |
1.50″ (38.2mm) |
1.56″ (39.5mm) |
1.42″ (36mm) |
| 12FFS50BS | 12FFS50BS143 | 1/2″ | 12.5mm | 11mm | Socket/Female | 1/2-14 Female BSPP | 1 | 3.27″ (83mm) |
1.50″ (38.2mm) |
1.56″ (39.5mm) |
1.42″ (36mm) |
| 12FFS75 | – | 1/2″ | 12.5mm | 11mm | Socket/Female | 3/4-14f Female NPT | 1 | 3.39″ (86mm) |
1.50″ (38.2mm) |
1.56″ (39.5mm) |
1.42″ (36mm) |
| 12FFS75BS | – | 1/2″ | 12.5mm | 11mm | Socket/Female | 3/4-14 Female BSPP | 1 | 3.39″ (86mm) |
1.50″ (38.2mm) |
1.56″ (39.5mm) |
1.42″ (36mm) |
| 12FFS75UN | – | 1/2″ | 12.5mm | 11mm | Socket/Female | 3/4-16f Female UNF SAE J1926-1 | 1 | 3.27″ (83mm) |
1.50″ (38.2mm) |
1.56″ (39.5mm) |
1.42″ (36mm) |
| 12FFS87UN | – | 1/2″ | 12.5mm | 11mm | Socket/Female | 7/8-14f Female UNF SAE J1926-1 | 1 | 3.39″ (86mm) |
1.50″ (38.2mm) |
1.56″ (39.5mm) |
1.42″ (36mm) |
| 16FFS106UN | – | 7/8″ | 16mm | 13mm | Socket/Female | 1-1/16-12 Female UNF SAE J1926-1 | 1 | 3.50″ (89mm) |
1.66″ (42.2mm) |
1.56″ (39.5mm) |
1.42″ (36mm) |
| 16FFS50 | – | 5/8″ | 16mm | 13mm | Socket/Female | 1/2-14f Female NPT | 1 | 3.27″ (83mm) |
1.66″ (42.2mm) |
1.56″ (39.5mm) |
1.42″ (36mm) |
| 16FFS75 | – | 5/8″ | 16mm | 13mm | Socket/Female | 3/4-14f Female NPT | 1 | 3.39″ (86mm) |
1.66″ (42.2mm) |
1.56″ (39.5mm) |
1.42″ (36mm) |
| 16FFS75BS | – | 5/8″ | 16mm | 13mm | Socket/Female | 3/4-14 Female BSPP | 1 | 3.39″ (86mm) |
1.66″ (42.2mm) |
1.56″ (39.5mm) |
1.42″ (36mm) |
| 16FFS75UN | – | 3/8″ | 16mm | 13mm | Socket/Female | 3/4-16f Female UNF SAE J1926-1 | 1 | 3.27″ (83mm) |
1.66″ (42.2mm) |
1.56″ (39.5mm) |
1.42″ (36mm) |
| 16FFS87UN | – | 5/8″ | 16mm | 13mm | Socket/Female | 7/8-14f Female UNF SAE J1926-1 | 1 | 3.39″ (86mm) |
1.66″ (42.2mm) |
1.56″ (39.5mm) |
1.42″ (36mm) |
| 19FFS100 | – | 3/4″ | 19mm | 15mm | Socket/Female | 1-11-1/2f Female NPT | 1 | 3.80″ (96.6mm) |
1.82″ (46.2mm) |
1.81″ (46mm) |
1.65″ (42mm) |
| 19FFS100BS | – | 3/4″ | 19mm | 15mm | Socket/Female | 1-11 Female BSPP | 1 | 3.80″ (96.6mm) |
1.82″ (46.2mm) |
1.81″ (46mm) |
1.65″ (42mm) |
| 19FFS106UN | – | 3/4″ | 19mm | 15mm | Socket/Female | 1-1/16-12f Female UNF SAE J1926-1 | 1 | 3.80″ (96.6mm) |
1.82″ (46.2mm) |
1.81″ (46mm) |
1.65″ (42mm) |
| 19FFS131UN | – | 3/4″ | 19mm | 15mm | Socket/Female | 1-5/16-12f Female UNF SAE J1926-1 | 1 | 3.80″ (96.6mm) |
1.82″ (46.2mm) |
1.81″ (46mm) |
1.65″ (42mm) |
| 19FFS75 | 19FFS75143 | 3/4″ | 19mm | 15mm | Socket/Female | 3/4-14f Female NPT | 1 | 3.80″ (96.6mm) |
1.82″ (46.2mm) |
1.81″ (46mm) |
1.65″ (42mm) |
| 19FFS75BS | – | 3/4″ | 19mm | 15mm | Socket/Female | 3/4-14 Female BSPP | 1 | 3.80″ (96.6mm) |
1.82″ (46.2mm) |
1.81″ (46mm) |
1.65″ (42mm) |
| 25FFS100 | – | 1″ | 25mm | 18mm | Socket/Female | 1-11-1/2f Female NPT | 1 | 4.07″ (103.5mm) |
2.17″ (55.2mm) |
2.36″ (60mm) |
2.17″ (55mm) |
| 25FFS100BS | – | 1″ | 25mm | 18mm | Socket/Female | 1-11 Female BSPP | 1 | 4.07″ (103.5mm) |
2.17″ (55.2mm) |
2.36″ (60mm) |
2.17″ (55mm) |
| 25FFS125 | – | 1″ | 25mm | 18mm | Socket/Female | 1-1/4-11-1/2f Female NPT | 1 | 4.07″ (103.5mm) |
2.17″ (55.2mm) |
2.36″ (60mm) |
2.17″ (55mm) |
| 25FFS131UN | – | 1″ | 25mm | 18mm | Socket/Female | 1-5/16-12f Female UNF SAE J1926-1 | 1 | 4.07″ (103.5mm) |
2.17″ (55.2mm) |
2.36″ (60mm) |
2.17″ (55mm) |
| 25FFS162UN | – | 1″ | 25mm | 18mm | Socket/Female | 1-5/8-12f Female UNF SAE J1926-1 | 1 | 4.07″ (103.5mm) |
2.17″ (55.2mm) |
2.36″ (60mm) |
2.17″ (55mm) |
| 32FFS125 | 32FFS125143 | 1-1/4″ | – | 22.1mm | Socket/Female | 1-1/4-11-1/2 Female NPT | 1 | 4.93″ (125.2mm) |
2.55″ (64.8mm) |
2.36″ (60mm) |
2.17″ (55mm) |
| 32FFS162UN | 32FFS162UN143 | 1-1/4″ | – | 22.1mm | Socket/Female | 1-5/8-12 Female UNF SAE J1926-1 | 1 | 4.93″ (125.2mm) |
2.55″ (64.8mm) |
2.36″ (60mm) |
2.17″ (55mm) |
| 40FFS150 | 40FFS150143 | 1-1/2″ | – | 30.1mm | Socket/Female | 1-1/2-11-1/2 Female NPT | 1 | 5.01″ (127.4mm) |
3.13″ (79.5mm) |
2.76″ (70mm) |
2.56″ (65mm) |
| 40FFS187UN | 40FFS187UN143 | 1-1/2″ | – | 30.1mm | Socket/Female | 1-7/8-12 Female UNF SAE J1926-1 | 1 | 5.01″ (127.4mm) |
3.13″ (79.5mm) |
2.76″ (70mm) |
2.56″ (65mm) |
| 50FFS200 | – | 2″ | – | 39.2mm | Socket/Female | 2-11-1/2 Female NPT | 1 | 6.17″ (156.8mm) |
3.84″ (97.5mm) |
3.46″ (87.8mm) |
3.15″ (80mm) |
| 50FFS250UN | – | 2″ | – | 39.2mm | Socket/Female | 2-1/2-12 Female UNF SAE J1926-1 | 1 | 6.17″ (156.8mm) |
3.84″ (97.5mm) |
3.46″ (87.8mm) |
3.15″ (80mm) |
Be the first to review “19FFS100BS Hansen® By Danfoss | Quick Disconnect Coupling | FF Series | 1″ Female BSPP X 3/4″ ISO 16028 Flat Face | Socket | NBR+AU Seal | Steel”
Related products
Sale!
Hose Assemblies
Original price was: $162.91.$96.99Current price is: $96.99.
Sale!
Original price was: $34.60.$24.22Current price is: $24.22.
Sale!
Original price was: $318.31.$98.99Current price is: $98.99.
Sale!
Original price was: $30.00.$21.00Current price is: $21.00.
Sale!
Hose Assemblies
Original price was: $112.67.$78.87Current price is: $78.87.
Sale!
Original price was: $20.84.$14.59Current price is: $14.59.
Sale!
Original price was: $64.88.$45.42Current price is: $45.42.
Sale!
Hose Assemblies
Original price was: $105.27.$73.69Current price is: $73.69.
Reviews
There are no reviews yet.
