Sale!

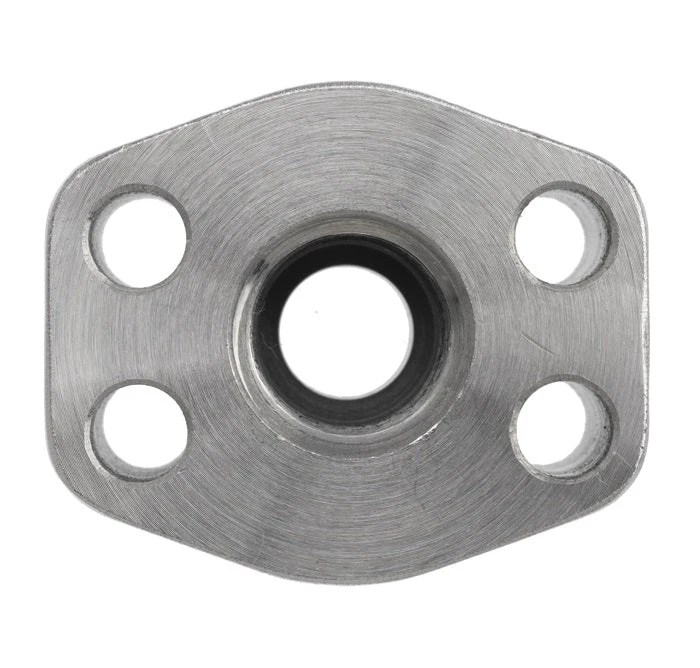

1927-61-20-24 By Brennan Inc. | -20 Female Pipe X Code 61 -24 O-Ring Face Flange | Steel
Original price was: $30.36.$21.25Current price is: $21.25.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | Pipe Size | Flange Size | A | B | C | D | E | G NPTF | H | J Min. | J Max. | K1 Drill | K2 Thread |
| 1927-61-08-08 | Steel | 1/2″ | 1/2″ | 1.82″ | 2.17″ | 0.688″ | 1.500″ | 1.25″ | 1/2-14″ | 0.50″ | 1.000″ | 1.005 | 0.3440 | 5/16-18 |
| 1927-61-12-12 | Steel | 3/4″ | 3/4″ | 2.06″ | 2.69″ | 0.875″ | 1.875″ | 1.25″ | 3/4-14″ | 0.75″ | 1.250″ | 1.255 | 0.406 | 3/8-16 |
| 1927-61-16-16 | Steel | 1″ | 1″ | 2.31″ | 2.88″ | 1.031″ | 2.062″ | 1.50″ | 1-11-1/2″ | 1.00″ | 1.560″ | 1.565 | 0.406 | 3/8-16 |
| 1927-61-20-20 | Steel | 1-1/4″ | 1-1/4″ | 2.88″ | 3.25″ | 1.188″ | 2.312″ | 1.50″ | 1-1/4-11-1/2″ | 1.25″ | 1.750″ | 1.755 | 0.469 | 7/16-14 |
| 1927-61-20-24 | Steel | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 1927-61-20-32 | Steel | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 1927-61-24-24 | Steel | 1-1/2″ | 1-1/2″ | 3.25″ | 3.81″ | 1.406″ | 2.750″ | 1.75″ | 1-1/2-11-1/2″ | 1.50″ | 2.115″ | 2.125 | 0.531 | 1/2-13 |
| 1927-61-32-32 | Steel | 2″ | 2″ | 3.81″ | 4.13″ | 1.688″ | 3.062″ | 1.75″ | 2-11-1/2″ | 2.00″ | 2.490″ | 2.500 | 0.531 | 1/2-13 |
| 1927-61-32-48 | Steel | – | – | – | – | – | – | – | – | – | – | – | – | – |
| 1927-61-40-40 | 2-1/2″ | 2-1/2″ | 4.28″ | 4.63″ | 2.000″ | 3.500″ | 2.00″ | 2-1/2-8″ | 2.50″ | 2.995″ | 3.005 | 0.531 | 1/2-13 | Steel |
| 1927-61-48-48 | Steel | 3″ | 3″ | 5.16″ | 5.44″ | 2.438″ | 4.188″ | 2.25″ | 3-8″ | 3.00″ | 3.615″ | 3.625 | 0.656 | 5/8-11 |
