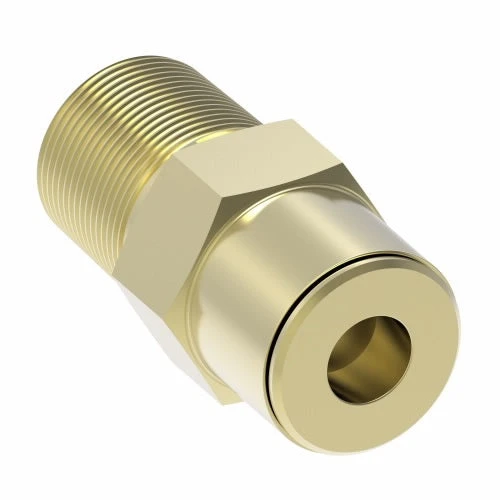

1868X6X2 By Danfoss | Quick Connect Air Brake Adapter | Male Connector | 3/8" Tube OD X 1/8" Male NPTF | Brass

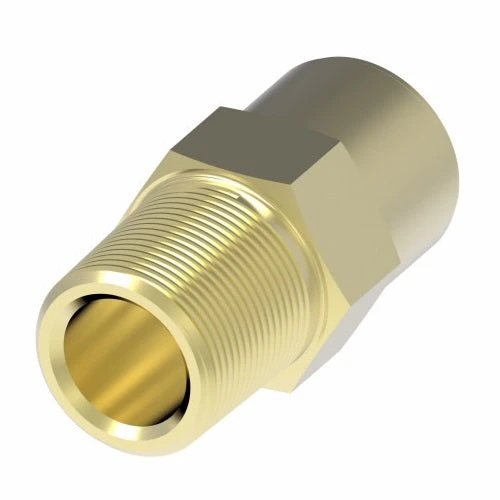

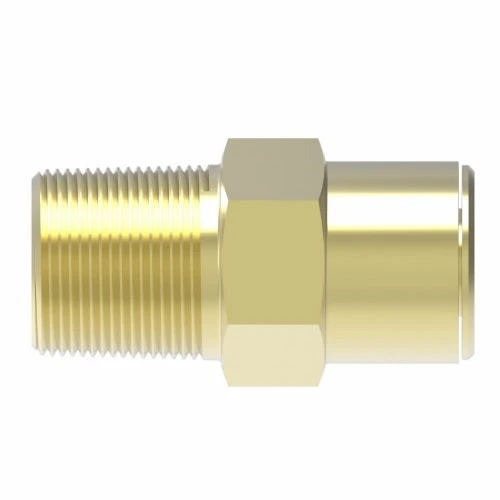

1868X6X2 By Danfoss | Quick Connect Air Brake Adapter | Male Connector | 3/8" Tube OD X 1/8" Male NPTF | Brass - Image 2
1868X6X2 By Danfoss | Quick Connect Air Brake Adapter | Male Connector | 3/8" Tube OD X 1/8" Male NPTF | Brass - Image 3
1868X6X2 By Danfoss | Quick Connect Air Brake Adapter | Male Connector | 3/8" Tube OD X 1/8" Male NPTF | Brass -Hose Ware House Danfoss Brass 1868X Adapter 2 bc402500 b58d 4c34 be38 4363cd25ef54
1868X6X2 By Danfoss | Quick Connect Air Brake Adapter | Male Connector | 3/8" Tube OD X 1/8" Male NPTF | Brass -Hose Ware House Danfoss Brass 1868X Adapter 3 6f0e8607 dd1a 489e b10b c8c04298d75e

1868X6X2 By Danfoss | Quick Connect Air Brake Adapter | Male Connector | 3/8″ Tube OD X 1/8″ Male NPTF | Brass

Original price was: $12.92.Current price is: $9.04.

SKU: AG9ZZ 1476963205156 Category: Tags: , , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Applications:
  • Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing.
  • Not for fuel, water or oil.
Advantages:
  • Easy, fast assembly.
  • One piece fitting.
  • Reusable.
  • Field Serviceable.
  • Moderate vibration resistance.
Used With:
  • SAE J844 Type A and B.
  • Danfoss / Eaton Air Brake Tubing.
Material:
  • CA360 Brass (Body & Collet).
  • EP (Ethylene Propylene) – O-Ring.
Pressure:
  • Vacuum to 150 PSI
Temperature Range:
  • -40°F to +200°F
    (-40°C to +93°C)
Conformance:
  • Ref. SAE No. AA0102
  • Meets D.O.T. FMVSS 571.106 and SAE J1131 air brake system performance requirements.
Assembly & Disassembly:
  • Quick Connect Air Brake Fitting Assembly & Disassembly Guide.PDF
1868X6X2 By Danfoss | Quick Connect Air Brake Adapter | Male Connector | 3/8" Tube OD X 1/8" Male NPTF | Brass -Hose Ware House
Brass
Part Number 		Tube O.D. Male Pipe Thread Hex
C		 D1 L
1868X2.5X1 5/32″ 1/16″ 3/8″ 0.09″ 0.92″
1868X2.5 5/32″ 1/8″ 7/16″ 0.25″ 0.92″
1868X3 3/16″ 1/8″ 1/2″ 0.25″ 0.92″
1868X4 1/4″ 1/8″ 9/16″ 0.19″ 0.95″
1868X4X4 1/4″ 1/4″ 9/16″ 0.34″ 1.18″
1868X4X6 1/4″ 3/8″ 11/16″ 0.41″ 1.17″
1868X6X2 3/8″ 1/8″ 11/16″ 0.19″ 1.33″
1868X6 3/8″ 1/4″ 11/16″ 0.31″ 1.29″
1868X6X6 3/8″ 3/8″ 11/16″ 0.41″ 1.27″
1868X6X8 3/8″ 1/2″ 7/8″ 0.53″ 1.47″
1868X8X4 1/2″ 1/4″ 13/16″ 0.31″ 1.46″
1868X8 1/2″ 3/8″ 13/16″ 0.41″ 1.35″
1868X8X8 1/2″ 1/2″ 7/8″ 0.53″ 1.50″
1868X10X6 5/8″ 3/8″ 1″ 0.41″ 1.72″
1868X10 5/8″ 1/2″ 1″ 0.53″ 1.71″
1868X12 3/4″ 1/2″ 1-1/16″ 0.53″ 1.72″
