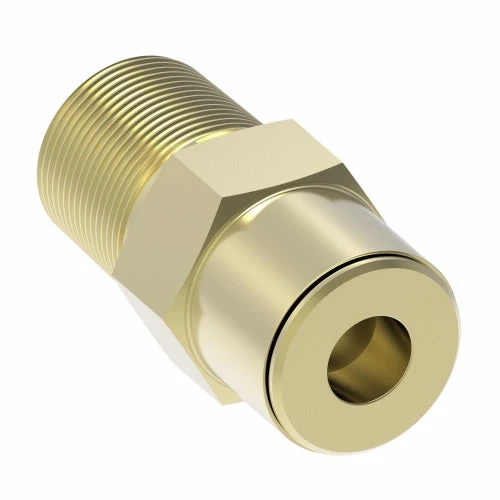

1868X4X4 By Danfoss | Quick Connect Air Brake Adapter | Male Connector | 1/4" Tube OD X 1/4" Male NPTF | Brass

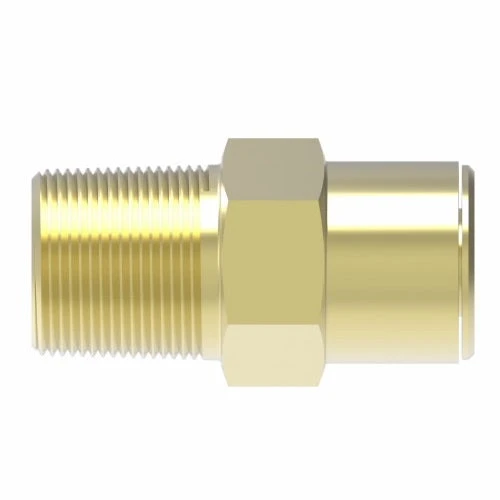

1868X4X4 By Danfoss | Quick Connect Air Brake Adapter | Male Connector | 1/4" Tube OD X 1/4" Male NPTF | Brass - Image 2

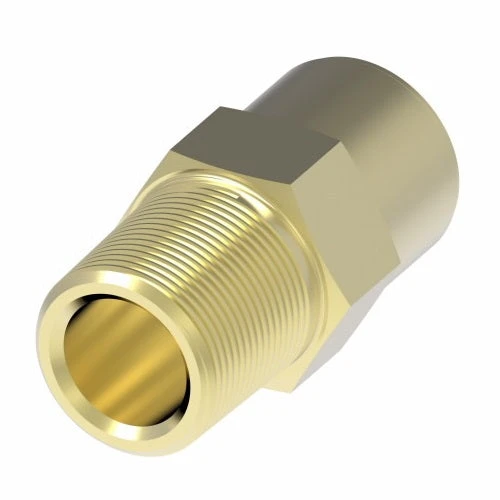

1868X4X4 By Danfoss | Quick Connect Air Brake Adapter | Male Connector | 1/4" Tube OD X 1/4" Male NPTF | Brass - Image 3

1868X4X4 By Danfoss | Quick Connect Air Brake Adapter | Male Connector | 1/4″ Tube OD X 1/4″ Male NPTF | Brass

Original price was: $12.00.Current price is: $8.40.

SKU: AG9ZZ 1476963139620 Categories: Fittings & Clamps, Tube Fittings Tags: 1868 Series Quick Connect Air Brake Eaton Male Connector, All-categories, Collection-lvl1_All Hose Ends, Collection-lvl2_Ends for Special Hose Types, Collection-lvl3_Tube Fittings, Eaton Brass, Eaton Quick Connect Air Brake, Ends-for-special-hose-types, Industrial Plastic Tubing, LegacyProductTypeReplacement_All Categories, Matrixify2nd50kProducts, PriceTeirs_Adapters

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Applications:
Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing. Not for fuel, water or oil.
Advantages:
Easy, fast assembly. One piece fitting. Reusable. Field Serviceable. Moderate vibration resistance.
Used With:
SAE J844 Type A and B. Danfoss / Eaton Air Brake Tubing.
Material:
CA360 Brass (Body & Collet). EP (Ethylene Propylene) – O-Ring.
Pressure:
Vacuum to 150 PSI
Temperature Range:
-40°F to +200°F (-40°C to +93°C)
Conformance:
Ref. SAE No. AA0102 Meets D.O.T. FMVSS 571.106 and SAE J1131 air brake system performance requirements.
Assembly & Disassembly:
Quick Connect Air Brake Fitting Assembly & Disassembly Guide.PDF


Brass Part Number	Tube O.D.	Male Pipe Thread	Hex C	D1	L
1868X2.5X1	5/32″	1/16″	3/8″	0.09″	0.92″
1868X2.5	5/32″	1/8″	7/16″	0.25″	0.92″
1868X3	3/16″	1/8″	1/2″	0.25″	0.92″
1868X4	1/4″	1/8″	9/16″	0.19″	0.95″
1868X4X4	1/4″	1/4″	9/16″	0.34″	1.18″
1868X4X6	1/4″	3/8″	11/16″	0.41″	1.17″
1868X6X2	3/8″	1/8″	11/16″	0.19″	1.33″
1868X6	3/8″	1/4″	11/16″	0.31″	1.29″
1868X6X6	3/8″	3/8″	11/16″	0.41″	1.27″
1868X6X8	3/8″	1/2″	7/8″	0.53″	1.47″
1868X8X4	1/2″	1/4″	13/16″	0.31″	1.46″
1868X8	1/2″	3/8″	13/16″	0.41″	1.35″
1868X8X8	1/2″	1/2″	7/8″	0.53″	1.50″
1868X10X6	5/8″	3/8″	1″	0.41″	1.72″
1868X10	5/8″	1/2″	1″	0.53″	1.71″
1868X12	3/4″	1/2″	1-1/16″	0.53″	1.72″
