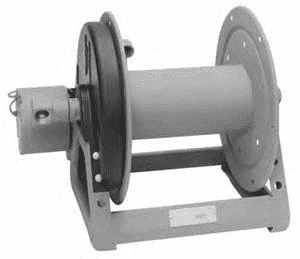

1836-17-18 By Hannay | #24-36 | 1800 Series | Manual Rewind Reel

1836-17-18 By Hannay | #24-36 | 1800 Series | Manual Rewind Reel

Original price was: $310.00.Current price is: $98.99.

SKU: AG9ZZ 1476860051492 Categories: , Tags: , , , , , , , , , ,
  • 100% Quality Satisfaction
  • Friendly, efficient service, always online.
  • 7 days free returns
  • Safe Payments, Happy Customers
Applications:
  • Air Compressors
  • Washdown
Features:
  • Lightweight compact reels designed for long lengths of hose in manual rewind.
  • Direct crank rewind is permanently attached.
  • Manual reels include:cam-lock drag brake, spring actuated pin lock.
  • Standard inlet 90 deg. ball bearing swivel joint 1″ female NPT threads.
  • Standard outlet 3/4″ female NPT threads.
  • Pressures to 2000 psi (138 bar).
  • Temperatures from -40 deg. F to +250 deg. F (-40 deg. C to +121 deg. C).
  • NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 5/8″ 3/4″ 1836-17-18 By Hannay | #24-36 | 1800 Series | Manual Rewind Reel -Hose Ware House 1800series add large
O.D. (in) 1″ 1-9/32″ A B E Crank E Power F Crank F Power X
1816-17-18 75′ length 50′ length 28 lbs. 13″ 7″ 16.5″ 19″ 23.38″ 18.5″ 11.5″
1822-17-18 150′ length 100′ length 30 lbs. 19″ 14″ 16.5″ 19″ 29.38″ 24.5″ 17.5″
1826-17-18 200′ length 125′ length 32 lbs. 23″ 18″ 16.5″ 19″ 33.38″ 28.5″ 21.5″
1830-17-18 275′ length 150′ length 33 lbs. 27″ 22″ 16.5″ 19″ 37.38″ 32.5″ 25.5″
1836-17-18 350′ length 200′ length 36 lbs. 33″ 28″ 16.5″ 19″ 43.38″ 38.5″ 31.5″
