Sale!

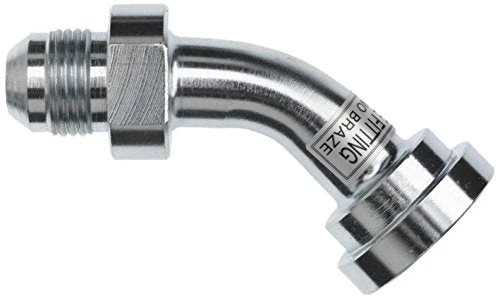

1803-24-24-FG By Brennan Inc. | -24 Male JIC X -24 Flange Code 62 | 45° Elbow | Forged Steel
Original price was: $68.81.$48.17Current price is: $48.17.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
 | ||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | Material | TubeO.D. | 1Thread | 2Flange | L1(in.) | L2(in.) | A/F(in.) | |
| 1803-08-08 | Steel | 1/2″ | 3/4-16″ UNF | 1/2″ | 2.760″ | 0.940″ | 7/8″ | |
| 1803-12-12 | Steel | 3/4″ | 1-1/16-12″ UN | 3/4″ | 3.310″ | 1.140″ | 1-1/8″ | |
| 1803-12-16 | Steel | 3/4″ | 1-1/16-12″ UN | 1″ | 3.350″ | 1.220″ | 1-1/8″ | |
| 1803-12-20 | Steel | 3/4″ | 1-1/16-12″ | 1-1/4″ | 3.750″ | 1.620″ | 1.125″ | |
| 1803-16-12 | Steel | 1″ | 1-5/16-12″ UN | 3/4″ | 3.460″ | 1.180″ | 1-3/8″ | |
| 1803-16-16 | Steel | 1″ | 1-5/16-12″ UN | 1″ | 3.860″ | 1.380″ | 1-3/8″ | |
| 1803-16-20 | Steel | 1″ | 1-5/16-12″ UN | 1-1/4″ | 3.980″ | 1.500″ | 1-3/8″ | |
| 1803-16-24 | Steel | 1″ | 1-5/16-12″ UN | 1-1/2″ | 4.130″ | 1.16″ | 1-3/8″ | |
| 1803-20-12 | Steel | 1-1/4″ | 1-5/8-12″ UN | 3/4″ | 4.130″ | 1.420″ | 1-1/2″ | |
| 1803-20-16 | Steel | 1-1/4″ | 1-5/8-12″ UN | 1″ | 4.130″ | 1.420″ | 1-11/16″ | |
| 1803-20-20 | Steel | 1-1/4″ | 1-5/8-12″ UN | 1-1/4″ | 4.530″ | 1.650″ | 1-11/16″ | |
| 1803-20-24 | Steel | 1-1/4″ | 1-5/8-12″ UN | 1-1/2″ | 4.650″ | 1.810″ | 1-11/16″ | |
| 1803-24-20 | Steel | 1-1/2″ | 1-7/8-12″ | 1-1/4″ | 4.875″ | 1.400″ | 2.000″ | |
| 1803-24-24 | Steel | 1-1/2″ | 1-7/8-12″ UN | 1-1/2″ | 5.160″ | 1.930″ | 2.000″ | |
| 1803-32-32 | Steel | 2″ | 2-1/2-12″ UN | 2″ | 6.540″ | 2.480″ | 2-3/4″ | |
| 1803-12-12-FG | Forged Steel | 3/4″ | 1-1/16-12″ UN | 3/4″ | 1.280″ | 1.580″ | 1-1/16″ | |
| 1803-16-16-FG | Forged Steel | 1″ | 1-5/16-12″ | 1″ | 1.470″ | 1.850″ | 1.312″ | |
| 1803-20-20-FG | Forged Steel | 1-1/4″ | 1-5/8-12″ UN | 1-1/4″ | 1.590″ | 2.040″ | 1.625″ | |
| 1803-20-24-FG | Forged Steel | 1-1/4″ | 1-5/8-12″ UN | 1-1/2″ | 4.650″ | 1.810″ | 1-11/16″ | |
| 1803-24-24-FG | Forged Steel | 1-1/2″ | 1-7/8-12″ UN | 1-1/2″ | 1.780″ | 2.380″ | 1-7/8″ | |
| 1803-12-12-SS | Stainless Steel | 3/4″ | 1-1/16-12″ UN | 3/4″ | 3.310″ | 1.140″ | 1-1/16″ | |
| 1803-12-16-SS | Stainless Steel | 3/4″ | 1-1/16-12″ UN | 1″ | 3.350″ | 1.220″ | 1-1/8″ | |
| 1803-12-20-SS | Stainless Steel | 3/4″ | 1-1/16-12″ | 1-1/4″ | 3.750″ | 1.620″ | 1.125″ | |
| 1803-16-12-SS | Stainless Steel | 1″ | 1-5/16-12″ UN | 3/4″ | 3.460″ | 1.180″ | 1-3/8″ | |
| 1803-16-20-SS | Stainless Steel | 1″ | 1-5/16-12″ UN | 1-1/4″ | 3.980″ | 1.500″ | 1-3/8″ | |
| 1803-16-24-SS | Stainless Steel | 1″ | 1-5/16-12″ UN | 1-1/2″ | 4.130″ | 1.16″ | 1-3/8″ | |
| 1803-20-12-SS | Stainless Steel | 1-1/4″ | 1-5/8-12″ UN | 3/4″ | 4.130″ | 1.420″ | 1-1/2″ | |
| 1803-20-16-SS | Stainless Steel | 1-1/4″ | 1-5/8-12″ UN | 1″ | 4.130″ | 1.420″ | 1-11/16″ | |
| 1803-20-20-SS | Stainless Steel | 1-1/4″ | 1-5/8-12″ UN | 1-1/4″ | 4.530″ | 1.650″ | 1-5/8″ | |
| 1803-20-24-SS | Stainless Steel | 1-1/4″ | 1-5/8-12″ UN | 1-1/2″ | 4.650″ | 1.810″ | 1-11/16″ | |
| 1803-24-20-SS | Stainless Steel | 1-1/2″ | 1-7/8-12″ | 1-1/4″ | 4.875″ | 1.400″ | 2.000″ | |
| 1803-24-24-SS | Stainless Steel | 1-1/2″ | 1-7/8-12″ UN | 1-1/2″ | 5.160″ | 1.930″ | 1-7/8″ | |
| 1803-32-32-SS | Stainless Steel | 2″ | 2-1/2-12″ UN | 2″ | 6.540″ | 2.480″ | 2-5/8″ | |
