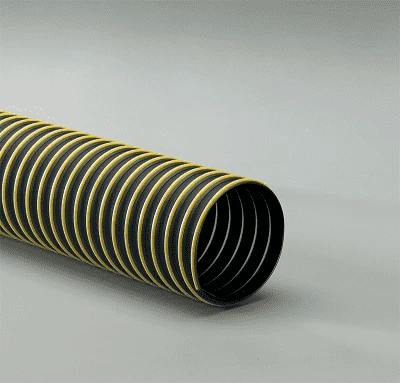

18-T-7W-25 By Flexaust | #8901180025 | T-7W Series | Dust And Material Handling Duct Hose | 18 Inch | 25ft
Original price was: $336.00.$98.99Current price is: $98.99.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
SPECIFICATIONS
| Application: | Car Wash, Furnace Duct Cleaning, Landfill Venting, Off-Road, Ozone, Paper Trim Conduit | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Medium weight black thermoplastic rubber |
| Reinforcement: | Spring steel wire helix and yellow external polypropylene wearstrip | Cover: | N/A |
| Temperature Range: | -60 deg. F to 275 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | ||
| Other Features: | |||
| |||
| Part Number 25 ft Reels | Part Number 50 ft Reels | Inside Diameter | Wall Thickness (In) | Centerline Bend Radius (In) | Compression Ratio | Negative Pressure (In/Hg) | Working Pressure (PSI) | Weight – 25ft (Lbs/Ft) | Weight – 50ft (Lbs/Ft) |
|---|---|---|---|---|---|---|---|---|---|
| T-7W 2in | T-7W 2in | 2″ | .030″ | 2.42″ | 2:1 | 29 | 14 | 6.25 lbs | 12.5 lbs |
| T-7W 2.25in | T-7W 2.25in | 2.25″ | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| T-7W 2.5in | T-7W 2.5in | 2.5″ | .030″ | 2.75″ | 2:1 | 29 | 11 | 8.25 lbs | 16.5 lbs |
| T-7W 3in | T-7W 3in | 3″ | .030″ | 3″ | 2:1 | 29 | 9.5 | 10 lbs | 20 lbs |
| T-7W 3.5in | T-7W 3.5in | 3.5″ | .030″ | 4″ | 2:1 | 29 | 9 | 11.75 lbs | 23.5 lbs |
| T-7W 4in | T-7W 4in | 4″ | .030″ | 5.5″ | 2:1 | 29 | 9 | 16.75 lbs | 33.5 lbs |
| T-7W 5in | T-7W 5in | 5″ | .030″ | 5.5″ | 2:1 | 17 | 8 | 21.25 lbs | 42.5 lbs |
| T-7W 6in | T-7W 6in | 6″ | .030″ | 5.5″ | 3:1 | 8.3 | 5 | 20.5 lbs | 41 lbs |
| T-7W 7in | T-7W 7in | 7″ | .030″ | 7″ | 3:1 | 5.25 | 4.5 | 25 lbs | 50 lbs |
| T-7W 8in | T-7W 8in | 8″ | .030″ | 8.25″ | 3:1 | 3.46 | 4 | 30 lbs | 60 lbs |
| T-7W 10in | T-7W 10in | 10″ | .030″ | 10″ | 3:1 | 9.2 | 4 | 55 lbs | 110 lbs |
| T-7W 12in | T-7W 12in | 12″ | .030″ | 12″ | 3:1 | 5.36 | 3.5 | 67.5 lbs | 135 lbs |
| T-7W 14in | T-7W 14in | 14″ | .030″ | 9.5″ | 3:1 | 3 | 3.4 | 75 lbs | 150 lbs |
| T-7W 16in | T-7W 16in | 16″ | .030″ | 11″ | 3:1 | 2.3 | 2.6 | 87.5 lbs | 175 lbs |
| T-7W 18in | T-7W 18in | 18″ | .030″ | 12″ | 3:1 | 1.6 | 2.3 | 97.5 lbs | 195 lbs |
| T-7W 20in | T-7W 20in | 20″ | .030″ | 13.5″ | 3:1 | 1.2 | 2.1 | 107.5 lbs | 215 lbs |
| T-7W 22in | T-7W 22in | 22″ | .030″ | 15″ | 3:1 | .9 | 1.9 | 110 lbs | 220 lbs |
| T-7W 24in | T-7W 24in | 24″ | .030″ | 16″ | 3:1 | .7 | 1.75 | 120 lbs | 240 lbs |
Technical data based on 2 ft. straight lengths of hose @ 72 deg.
