Sale!

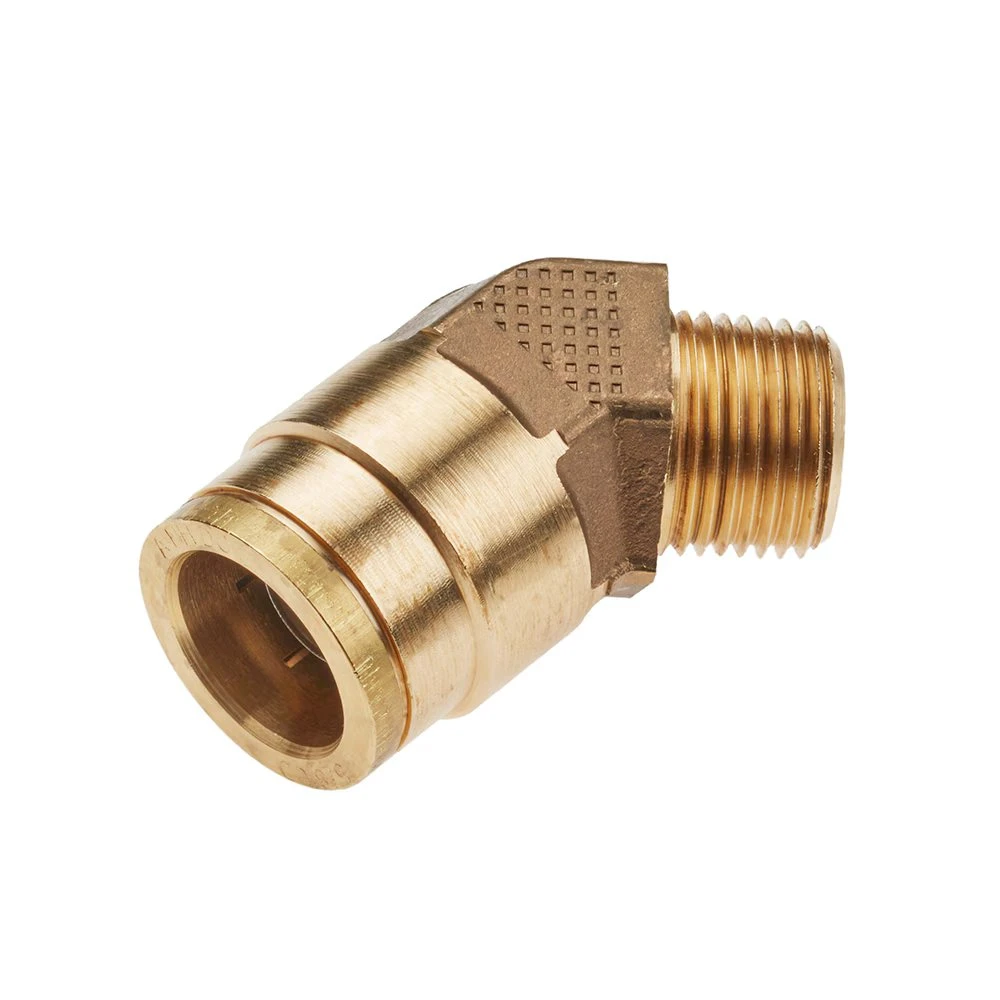

179PTCNS-6-4 By Parker | Threaded Fitting | 3/8″ Rigid Push-to-Connect X 1/4″ Male NPT Thread | 45° Elbow | Brass | Pack Of 10

Original price was: $140.86.Current price is: $98.99.

SKU: AG9ZZ 14646450258290 Categories: Fittings & Clamps, Tube Fittings Tags: Created in 2024, Matrixify3rd50kProducts

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Specification:
Product Features:	Brass Collet Buna N O-ring Stainless Steel Tube Support Meets D.O.T. FMVSS571.106 Meets SAE J2494-3 Meets SAE J2494 & SAE J2494-3
Markets:	Heavy Duty Truck Trailer Mobile
Applications:	Air Brakes Air Tanks Air Ride Sliders Tire Inflation Primary & Secondary Air Lines
Pressure Range:	Up to 250 PSI (17.2 bar)
Temperature Range:	-50° to +230° F (-45.5° to +100° C)
Temperature Range (3/16″ & 5/32 only):	-40 to +200F (-40 to +93.3C)
Compatible Tubing:	SAE J844 Type A & B nylon tubing


Part Number	Tube Size	Pipe Thread	L	N	Wrench Flats
179PTCNS-4-2	1/4″	1/8″	.74″	.56″	9/16″
179PTCNS-4-4	1/4″	1/4″	.74″	.69″	9/16″
179PTCNS-6-2	3/8″	1/8″	1.06″	.60″	9/16″
179PTCNS-6-4	3/8″	1/4″	1.06″	.69″	9/16″
179PTCNS-6-6	3/8″	3/8″	1.06″	.85″	9/16″
179PTCNS-6-8	3/8″	1/2″	N/A	N/A	N/A
179PTCNS-8-4	1/2″	1/4″	1.15″	.75″	13/16″
179PTCNS-8-6	1/2″	3/8″	1.15″	.75″	13/16″
179PTCNS-8-8	1/2″	1/2″	1.15″	1.00″	13/16″
179PTCNS-10-6	5/8″	3/8″	1.20″	.76″	7/8″
179PTCNS-10-8	5/8″	1/2″	1.21″	.95″	7/8″
179PTCNS-12-8	3/4″	1/2″	1.33″	1.19″	1″
