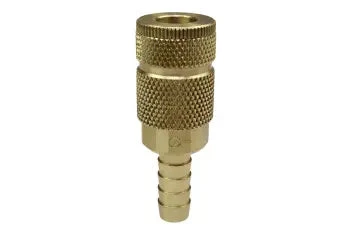

166 By Coilhose | Coilflow™ Automotive Tru-Flate Interchange Coupler | Manual | 1/4″ Body Size | 3/8″ Hose Barb | Straight | Brass (Type 16)

Original price was: $12.00.Current price is: $8.40.

Overview:
Manual couplers and connectors are engineered to interchange with the Automotive Tru-Flate interchange designs of other manufacturers. Connectors are machined from steel, then plated to provide years of service. Steel connectors offer a harder sealing surface that is more resistance to dings and scratches.
Features:
Manual Couplers offer a durable connection with years of service. Connector’s plated steel construction contains sealing surface, even in adverse conditions. Knurled body enhances grip. Drag guard prevents accidental disconnection. Made in USA

Body Size:	1/4″	Type:	Type 16
Locking Device:	4 Stainless Balls	Internal Valve:	Zinc-Plated Steel
Body Material:	Couplers: Brass Connectors: Zinc-Plated Steel	Sleeve Material:	Couplers: Brass Connectors: Zinc-Plated Steel
Maximum Input Pressure:	300 PSI	Temperature Range:	-40°F to 250°F
Seals:	Nitrile (Buna N)

Thread & Barb Size	Part No. Female		Part No. Male		Part No. Hose Barb
	Coupler	Connector	Coupler	Connector	Coupler	Connector	Coupler	Connector

1/8″	–	–	169*	1604	–	–	–	–
1/4″	160	1602	162	1601	163	1606	163L	1606L
3/8″	161	1605	165	1603	166	1608	166L	1608L
