Sale!

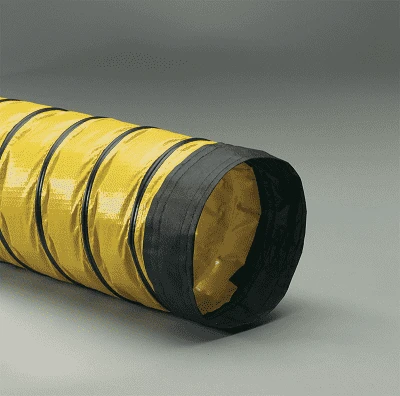

16-Arctic-Duct-U-25 By Flexaust | #5081600000 | Arctic Duct U Air Duct Hose | 16 Inch | 25ft
Original price was: $379.00.$95.99Current price is: $95.99.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
Springflex End Finishes
Ships without Sewn Cuff shown in image. Call 330-535-7105 for information on End Finish Pricing and Availability.
Ships without Sewn Cuff shown in image. Call 330-535-7105 for information on End Finish Pricing and Availability.
 |  |  |  |  |  |
| Sewn Cuff | Standard/Enclosed Belted Cuff | Funnel Cuff | Belt Loop & Pull Tabs | Wire Rope/Nylon Ring | Sto-Sack |
SPECIFICATIONS
| Applications: | Function Tent HVAC, HVAC, Thermo Insulated Heating/Cooling | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Two single-ply yellow neoprene coated polyester fabric plies protecting an insulation barrier |
| Reinforcement: | Spring steel wire helix & black external PVC coated polyester wearstrip | Cover: | N/A |
| Temperature Range: | -40 deg. F to 250 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | ||
| Other Features: | |||
| |||
| Part Number 25 ft Reels | Inside Diameter | Wall Thickness (In) | Centerline Bend Radius (In) | Compression Ratio | Negative Pressure (In/Hg) | Working Pressure (PSI) | Weight – 25ft (Lbs/Ft) |
|---|---|---|---|---|---|---|---|
| Arctic Duct U 4in | 4″ | N/A | 2.75″ | 3:1 | 8 | 8.2 | 16.25 lbs |
| Arctic Duct U 8in | 8″ | N/A | 5″ | 5:1 | 6.1 | 3.5 | 22.375 lbs |
| Arctic Duct U 10in | 10″ | N/A | 6″ | 5:1 | 3.16 | 2.78 | 27.25 lbs |
| Arctic Duct U 12in | 12″ | N/A | 7.25″ | 5:1 | 1.8 | 2.3 | 32.5 lbs |
| Arctic Duct U 14in | 14″ | N/A | 8.5″ | 5:1 | 1.2 | 2 | 37.2 lbs |
| Arctic Duct U 16in | 16″ | N/A | 9.6″ | 5:1 | .78 | 1.74 | 42.175 lbs |
| Arctic Duct U 18in | 18″ | N/A | 10.8″ | 5:1 | .55 | 1.55 | 47.15 lbs |
| Arctic Duct U 20in | 20″ | N/A | 12″ | 5:1 | .4 | 1.4 | 52.1 lbs |
Technical data based on 2 ft. straight lengths of hose @ 72 deg.
