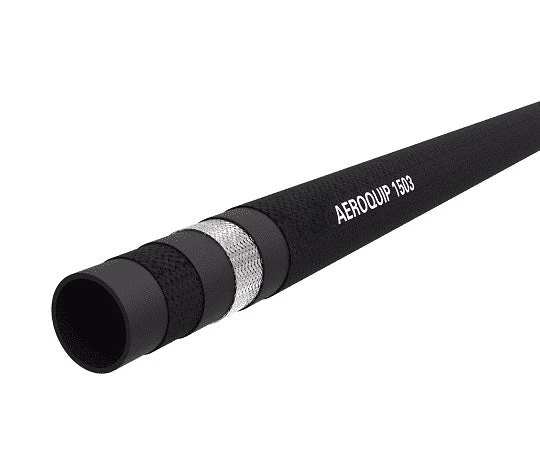

1503-8 Aeroquip By Danfoss | Textile & Wire Braided Hose | SAE 100R5, SAE J1402 | 0.41″ ID

Original price was: $13.87.Current price is: $9.71.

SKU: AG9ZZ 1476665442340 Categories: Bulk Hose & Covers, Hydraulic Hose Tags: 1503 Single Wire Braid, 4411 Compatible, Aeroquip Distributor, Aeroquip Specialty & Truck Hose, All-categories, Collection-lvl1_All Hose, Collection-lvl2_Hydraulic Hose, Collection-lvl3_1-Wire Hydraulic Hose, Filter-All-Brand_Aeroquip, Filter-All-Series_1503 Series, Filter-All-Specifications and Approvals_D.O.T. FMVSS 106, Filter-All-Specifications and Approvals_SAE 100R5, Filter-All-Specifications and Approvals_SAE J1402, Filter-AllHose-Color_Black, Filter-AllHose-CoverConstruction_Textile Braid, Filter-AllHose-ID_0.41", Filter-AllHose-TubingConstruction_Synthetic Rubber, Filter-HydraulicHose-DashSize_-8, Filter-IndustrialHoseTubingJoints-OD_0.77", Hydraulic Hoses and Fittings, Hydraulic-hose, LegacyProductTypeReplacement_All Categories, Matrixify2nd50kProducts, Single wire braid

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Hose Properties:
Application:	Hydraulics, air, gasoline, fuel and lubricating oils.	SAE Ratings:	Meets: SAE 100R5, SAE J1402, DOT/FMVSS 106 Type AII
Other Ratings:	N/A	Tube:	Synthetic Rubber
Reinforcement:	Textile Inner Braid, Single Wire Braid	Cover:	Black Textile Braid
Operating Temperature:	-40°F to +250°F (-40°C to +121°C) Air not to Exceed: +71°C (+160°F)

Part Number	Hose ID			Hose OD		Max. Operating Pressure		Min. Burst Pressure		Min. Bend Radius		Vacuum Service		Weight
Part Number	DN	mm	in	mm	in	bar	psi	bar	psi	mm	in	kPa	in/Hg	kg/m	lbs/ft
1503-4	5	4,8mm	0.19″	13,2mm	0.52″	210,0 bar	3000 psi	840,0 bar	12000 psi	76,2mm	3.00″	94,8 kPa	28 in/Hg	0,19 kg/m	0.13 lbs/ft
1503-5	6	6,4mm	0.25″	14,7mm	0.58″	210,0 bar	3000 psi	840,0 bar	12000 psi	85,9mm	3.38″	94,8 kPa	28 in/Hg	0,24 kg/m	0.16 lbs/ft
1503-6	8	7,9mm	0.31″	17,3mm	0.68″	157,0 bar	2250 psi	630,0 bar	9000 psi	101,6mm	4.00″	94,8 kPa	28 in/Hg	0,27 kg/m	0.23 lbs/ft
1503-8	10	10,4mm	0.41″	19,6mm	0.77″	140,0 bar	2000 psi	560,0 bar	8000 psi	117,3mm	4.62″	94,8 kPa	28 in/Hg	0,32 kg/m	0.26 lbs/ft
1503-10	12	12,7mm	0.50″	23,4mm	0.92″	122,0 bar	1750 psi	490,0 bar	7000 psi	139,7mm	5.50″	94,8 kPa	28 in/Hg	0,49 kg/m	0.37 lbs/ft
1503-12	16	16,0mm	0.63″	27,4mm	1.08″	105,0 bar	1500 psi	420,0 bar	6000 psi	165,1mm	6.50″	94,8 kPa	28 in/Hg	0,58 kg/m	0.46 lbs/ft
1503-16	19	22,4mm	0.88″	31,2mm	1.23″	56,0 bar	800 psi	224,0 bar	3200 psi	187,5mm	7.38″	67,7 kPa	20 in/Hg*	0,55 kg/m	0.44 lbs/ft
1503-20	25	28,4mm	1.12″	38,1mm	1.50″	43,0 bar	625 psi	175,0 bar	2500 psi	228,6mm	9.00″	67,7 kPa	20 in/Hg*	0,68 kg/m	0.52 lbs/ft
1503-24	31	35,1mm	1.38″	44,5mm	1.75″	35,0 bar	500 psi	140,0 bar	2000 psi	266,7mm	10.50″	50,8 kPa	15 in/Hg*	0,92 kg/m	0.67 lbs/ft
1503-32	38	46,0mm	1.81″	56,6mm	2.23″	24,0 bar	350 psi	98,0 bar	1400 psi	336,6mm	13.25″	37,3 kPa	11 in/Hg*	1,28 kg/m	0.94 lbs/ft
1503-40	60	60,1mm	2.38″	73,2mm	2.88″	24,0 bar	350 psi	98,0 bar	1400 psi	609,6mm	24.00″	37,3 kPa	11 in/Hg*	2,11 kg/m	1.43 lbs/ft

* Maximum negative pressures shown for -16 and larger are suitable only for those which has suffered no external damage or kinking.
If greater negative pressures are required for -16 and larger hoses, the use of an internal support coil is recommended.

Bulk / By the Foot: We sell Danfoss hose in “Bulk Length” unless otherwise specified in the title or option selector as “Exact Length”. When you buy “Bulk Length” hose you are agreeing to buy
multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you
need a single piece then you can select an “Exact Length” option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose
supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc.,
or any other entity. Consult current master catalog for additional warnings and cautions.
