1469X6 By Danfoss | Air Brake Adapter For Nylon Tubing | Male Connector 90° Elbow | 3/8" Tube OD X 1/4" Male Pipe | Brass

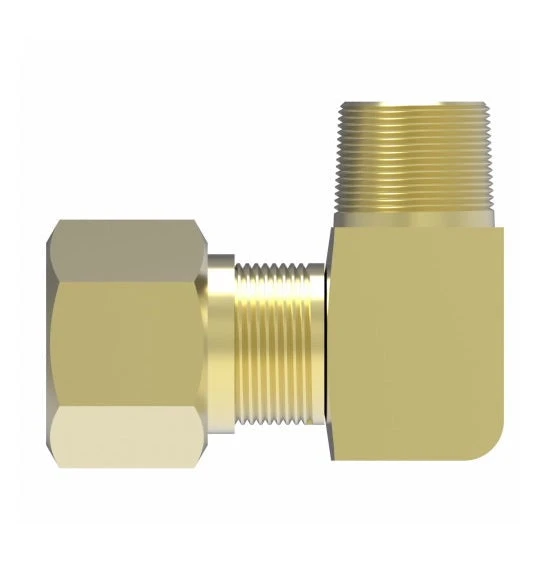

1469X6 By Danfoss | Air Brake Adapter For Nylon Tubing | Male Connector 90° Elbow | 3/8" Tube OD X 1/4" Male Pipe | Brass - Image 2

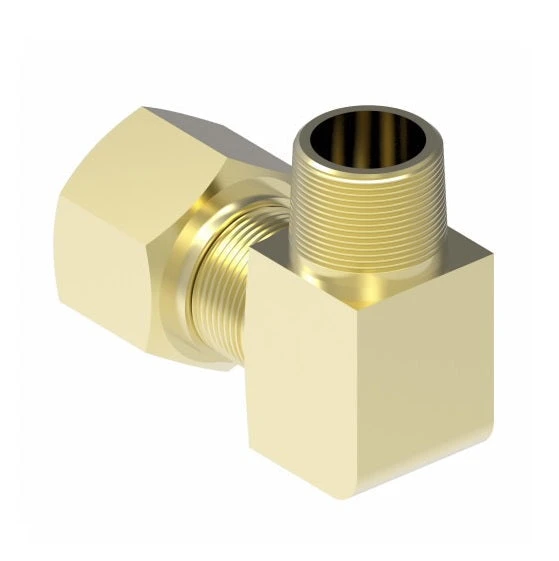

1469X6 By Danfoss | Air Brake Adapter For Nylon Tubing | Male Connector 90° Elbow | 3/8" Tube OD X 1/4" Male Pipe | Brass - Image 3

1469X6 By Danfoss | Air Brake Adapter For Nylon Tubing | Male Connector 90° Elbow | 3/8″ Tube OD X 1/4″ Male Pipe | Brass

Original price was: $12.00.Current price is: $8.40.

SKU: AG9ZZ 1476955078692 Categories: Fittings & Clamps, Tube Fittings Tags: 1469 Series Eaton Air Brake Connectors for Nylon Tubing 90 Degree Male Elbow, All-categories, Collection-lvl1_All Hose Ends, Collection-lvl2_Ends for Special Hose Types, Collection-lvl3_Tube Fittings, Eaton Air Brake Connectors for Nylon Tubing, Eaton Brass, Ends-for-special-hose-types, Industrial Plastic Tubing, LegacyProductTypeReplacement_All Categories, Matrixify2nd50kProducts, PriceTeirs_Adapters

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Applications:
Air brake systems except where temperatures exceed +200°F or where battery acid can drip on tubing.
Advantages:
Easy to assemble (no tube preparation or flaring required.) Built in tube support. May be used with copper tubing by replacing nut, sleeve and insert with long nut and spherical sleeve. Insert should be removed for copper tubing use. Fair Vibration Resistance.
Used With:
Danfoss / Eaton Air Brake Tubing.
Material:
CA360 Brass.
Pressure:
Maximum operating pressure of 150 psi.
Temperature Range:
-40°F to +200°F (-40°C to +93°C)
Conformance:
Ref. SAE No. 100202BA Meets specifications and standards of SAE and DOT FMVSS 571.106.

Tube O.D.	1/4″	3/8″	1/2″	5/8″	3/4″
Thread Size	7/16-24	17/32-24	11/16-20	13/16-18	1-18


Brass Part Number	Brass with Sealant Part Number	Tube O.D.	Male Pipe Thread	D1	M	N
1469X4	1469X4Z	1/4″	1/8″	0.188″	0.63″	0.67″
1469X4X4	–	1/4″	1/4″	0.312″	0.69″	0.88″
1469X4X6	–	1/4″	3/8″	0.406″	0.74″	0.87″
1469X6X2	1469X6X2Z	3/8″	1/8″	0.188″	0.73″	0.75″
1469X6	1469X6Z	3/8″	1/4″	0.312″	0.80″	0.93″
1469X6X6	1469X6X6Z	3/8″	3/8″	0.406″	0.85″	0.92″
1469X6X8	1469X6X8Z	3/8″	1/2″	0.562″	0.95″	1.11″
1469X8X4	–	1/2″	1/4″	0.313″	0.87″	1.00″
1469X8	1469X8Z	1/2″	3/8″	0.407″	0.94″	1.00″
1469X8X8	1469X8X8Z	1/2″	1/2″	0.531″	1.04″	1.19″
1469X10X6	1469X10X6Z	5/8″	3/8″	0.406″	1.01″	1.06″
1469X10	–	5/8″	1/2″	0.531″	1.10″	1.25″
1469X10X12	–	5/8″	3/4″	0.750″	1.21″	1.30″
1469X12	–	3/4″	1/2″	0.531″	1.20″	1.34″
