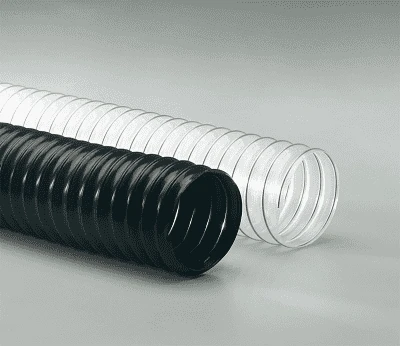

14-Flx-Thane-LD-25 By Flexaust | Flx-Thane LD | Air, Fume, And Dust Duct Hose | 14 Inch | 25ft
Original price was: $390.00.$99.99Current price is: $99.99.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
SPECIFICATIONS
| Applications: | Aluminum Refractory, Cold Air Supply, Dust Collection, Food Grade, Hull Sanding Equipment, Insulation Blowing & Removal, Oil Mist Extraction, Paint Spray Extraction, Pharmaceutical, Printing, Sheet Metal, Textile Fiber Collection, Ultra Violet Dryers, Vapor Recovery, Woodworking/Furniture Industry | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Light weight clear or black polyurethane |
| Reinforcement: | Bronze coated spring steel wire | Cover: | N/A |
| Temperature Range: | 65 deg. F to 225 deg. F | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | ||
| Other Features: | |||
| |||
| Part Number 25 ft Reels | Inside Diameter | Wall Thickness (In) | Centerline Bend Radius (In) | Compression Ratio | Negative Pressure (In/Hg) | Working Pressure (PSI) | Weight – 25ft (Lbs/Ft) |
|---|---|---|---|---|---|---|---|
| Flx-Thane LD 2in | 2″ | .015″ | 2″ | 3:1 | 29 | 30 | 6.25 lbs |
| Flx-Thane LD 2.5in | 2.5″ | .020″ | 2.75″ | 4:1 | 19 | 30 | 8.75 lbs |
| Flx-Thane LD 3in | 3″ | .020″ | 3.25″ | 4:1 | 29 | 30 | 10 lbs |
| Flx-Thane LD 4in | 4″ | .020″ | 3.75″ | 4:1 | 24 | 22 | 12.5 lbs |
| Flx-Thane LD 5in | 5″ | .020″ | 4.5″ | 4:1 | 13 | 18 | 15 lbs |
| Flx-Thane LD 5.5in | 5.5″ | N/A | N/A | N/A | N/A | N/A | N/A |
| Flx-Thane LD 6in | 6″ | .020″ | 5.25″ | 4:1 | 8 | 15 | 17.5 lbs |
| Flx-Thane LD 7in | 7″ | .020″ | 5.88″ | 5:1 | 8 | 10 | 20 lbs |
| Flx-Thane LD 8in | 8″ | .020″ | 6.5″ | 5:1 | 2 | 7 | 22.5 lbs |
| Flx-Thane LD 9in | 9″ | N/A | N/A | N/A | N/A | N/A | N/A |
| Flx-Thane LD 10in | 10″ | .020″ | 7.5″ | 5:1 | 2 | 7 | 30 lbs |
| Flx-Thane LD 12in | 12″ | .020″ | 9″ | 5:1 | 1.7 | 6 | 35 lbs |
| Flx-Thane LD 14in | 14″ | .020″ | 12″ | 5:1 | 1.1 | 5 | 40 lbs |
| Flx-Thane LD 16in | 16″ | .020″ | 14″ | 5:1 | .7 | 4.6 | 45 lbs |
| Flx-Thane LD 18in | 18″ | .020″ | 16″ | 5:1 | .5 | 4.1 | 50 lbs |
Technical data based on 2 ft. straight lengths of hose @ 72 deg.
| Color | Black, Clear |
|---|
