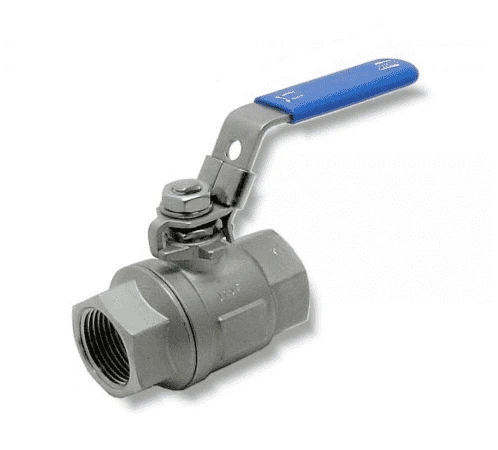

130B41 By RuB Inc. | Full Port Ball Valve | 1/4″ Female NPT X 1/4″ Female NPT | With Locking Blue Handle | Stainless Steel | Pack Of 8

Original price was: $189.82.Current price is: $95.99.

SKU: AG9ZZ 4185331171364 Categories: Adapters & More, Valves Tags: All-categories, Collection-lvl1_All Hose Accessories, Collection-lvl2_Valves, Collection-lvl3_Ball Valves, LegacyProductTypeReplacement_All Categories, Matrixify1st50kProducts, RuB Inc. Valves, RuB Inc. Valves & Actuators, Stainless Steel Ball Valves, Valves

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Quality:
Dual sealing system allows valve to be operated in either direction making installation easier Handle clearly shows ball position Silicone-free lubricant on all seals Test standard API 598 NACE compliance MR-01-75 Handle stops on body to avoid stresses at stem
Body:
CF8M stainless steel body and cap
Stem:
Blowout-proof stainless steel stem
Sealing:
Glass filled PTFE seats
Threads:
NPT taper ANSI B.1.20.1 female by female threads
Flow:
100% full port for maximum flow
Handle:
Plastic coated stainless steel lockable handle. Handle coating offers both thermal and electrical protection WARNING: do not exceed reasonable temperature and/or electrical load Handle removable with valve in service
Working Pressure & Temperature:
1000 PSI non-shock cold working pressure 150 PSI WSP steam rating 2x 10^-2 torr vacuum rating *150 psig non-shock working steam pressure. Not suitable for throttling steam. -50°F/ +450°F WARNING: freezing of the fluid in the installation may severely damage the valve
Approved by or in compliance with:
GOST-R (Russia) NOTE: approvals apply to specific configurations/sizes only.


Part Number	Size	Dimensions (Inches)
Part Number	Size	D	d	L	H	D1	W1	h
130B41	1/4″	1/4″	0.433″	2.276″	2.252″	4.055″	N/A	N/A
130C41	3/8″	3/8″	0.492″	2.276″	2.252″	4.055″	N/A	N/A
130D41	1/2″	1/2″	0.591″	2.429″	2.327″	4.055″	N/A	N/A
130E41	3/4″	3/4″	0.787″	2.76″	2.463″	4.055″	N/A	N/A
130F41	1″	1″	0.984″	3.201″	2.783″	5″	N/A	N/A
130G41	1-1/4″	1-1/4″	1.26″	3.78″	3″	5″	N/A	N/A
130H41	1-1/2″	1-1/2″	1.496″	4.429″	3.508″	6.024″	N/A	N/A
130I41	2″	2″	1.969″	4.961″	3.864″	7.598″	N/A	N/A
130L41	2-1/2″	2-1/2″	2.559″	6.634″	4.354″	7.598″	2.756	M8x1.25
130M41	3″	3″	3.15″	7.535″	4.882″	10.985″	4.016	M10x1.5
