Sale!

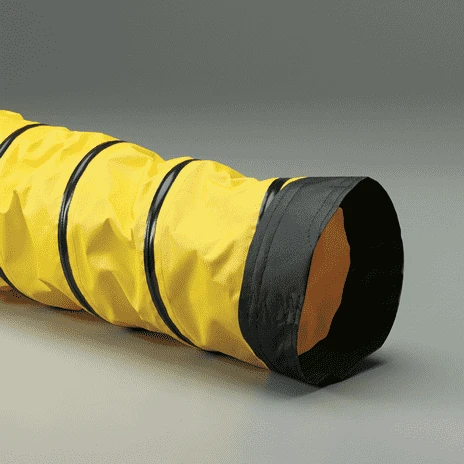

12-SD-W-25 By Flexaust | #3421200025 | SD-W Series | Air Duct Hose | 12 Inch | 25ft

Original price was: $390.00.Current price is: $95.99.

Springflex End Finishes
Ships without Sewn Cuff shown in image. Call 330-535-7105 for information on End Finish Pricing and Availability.


Sewn Cuff	Standard/Enclosed Belted Cuff	Funnel Cuff	Belt Loop & Pull Tabs	Wire Rope/Nylon Ring	Sto-Sack

SPECIFICATIONS

Other Features:
Applications:	Aircraft, Chiller, Confined Space Ventilation, Dehumidification, Dog Agility, Fans & Blowers, Flame Retardant, Function Tent HVAC, Humidity Control, Laser Engraving, Mining, Smoke Ejectors, Utility Blowers, Ventilation	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Single-ply yellow neoprene coated polyester fabric
Reinforcement:	Spring steel wire helix & black external PVC wearstrip	Cover:	N/A
Temperature Range:	-65 deg. F to 250 deg. F	Crimp Fittings:	N/A
Reusable Fittings:	N/A
Ideal for moving large volumes of air in portable or permanent ventilation/exhaust systems. Wearstrip offers additional external abrasion & drag resistance. Great compressibility. Retractability allows for convenient storage & easy transport in a fraction of its fully extended length. Listed as UL 94V-0 flame retardant. Shown with optional cuff.

Part Number 25 ft Reels	Inside Diameter	Wall Thickness (In)	Centerline Bend Radius (In)	Compression Ratio	Negative Pressure (In/Hg)	Working Pressure (PSI)	Weight – 25ft (Lbs/Ft)
SD-W 4in	4″	N/A	3″	5:1	N/A	5.4	6.25 lbs
SD-W 5in	5″	N/A	N/A	N/A	N/A	N/A	N/A
SD-W 6in	6″	N/A	3.5″	12:1	N/A	3	7.5 lbs
SD-W 8in	8″	N/A	5″	12:1	N/A	3	10 lbs
SD-W 10in	10″	N/A	6.5″	12:1	N/A	2.5	15 lbs
SD-W 12in	12″	N/A	7.5″	12:1	N/A	2	17.5 lbs
SD-W 14in	14″	N/A	8.5″	12:1	N/A	1.7	20 lbs
SD-W 16in	16″	N/A	9.5″	12:1	N/A	1.5	22.5 lbs
SD-W 18in	18″	N/A	10.5″	12:1	N/A	1.3	25 lbs
SD-W 20in	20″	N/A	12″	12:1	N/A	1.1	27.5 lbs
SD-W 22in	22″	N/A	N/A	N/A	N/A	N/A	N/A
SD-W 24in	24″	N/A	13″	12:1	N/A	1	40 lbs
