12-NS-12 By Flexaust | #2721200012 | NS | Air And Fume Duct Hose | 12 Inch | 12ft

Original price was: $381.00.Current price is: $98.99.

SPECIFICATIONS

Other Features:
Applications:	Automotive, Garage Exhaust, Glass Drying, Heater, High Temperature, Rocket Support, Tractor Pull Exhaust, Transmission Cooling, Vehicle Exhaust Systems	SAE Rating:	N/A

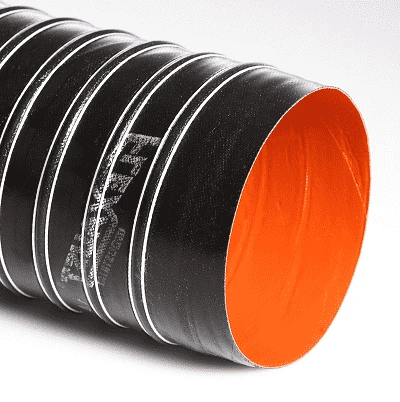

Other Ratings:	N/A	Tube:	Double-ply fabric hose with a iron oxide red silicone coated fiberglass inner layer
Reinforcement:	Spring steel wire helix & external filament fiberglass cord	Cover:	Black silicone coated Nomex® outer layer
Temperature Range:	-65 deg. F to 550 deg. F	Crimp Fittings:	N/A
Reusable Fittings:	N/A
Nomex® material increases flex life & abrasion resistance. Suited for high temperature air handling applications. The narrow pitch allows for tight bending radius while maintaining a smooth air flow. Ideal for applications where constant flexing is involved. Non-kinking. Resistant to many oils & solvents, ozone, water, fungus & alkalis.

Part Number 12 ft Reels	Inside Diameter	Wall Thickness (In)	Centerline Bend Radius (In)	Compression Ratio	Negative Pressure (In/Hg)	Working Pressure (PSI)	Weight – 12ft (Lbs/Ft)
NS 1in	1″	N/A	1.2″	3:1	29	30	1.44 lbs
NS 1.5in	1.5″	N/A	1.8″	3:1	29	30	2.04 lbs
NS 2in	2″	N/A	2″	3:1	29	30	3 lbs
NS 2.5in	2.5″	N/A	2.3″	3:1	29	30	3.6 lbs
NS 3in	3″	N/A	2.5″	3:1	29	30	3.96 lbs
NS 3.5in	3.5″	N/A	2.5″	3:1	29	30	4.8 lbs
NS 4in	4″	N/A	3″	5:1	27	30	5.76 lbs
NS 4.5in	4.5″	N/A	3.2″	5:1	20	30	6.48 lbs
NS 5in	5″	N/A	3.5″	5:1	14	30	7.08 lbs
NS 6in	6″	N/A	4″	5:1	9	19	7.44 lbs
NS 7in	7″	N/A	N/A	N/A	N/A	N/A	N/A
NS 8in	8″	N/A	4″	5:1	9	14	9.48 lbs
NS 10in	10″	N/A	N/A	N/A	N/A	N/A	N/A
NS 12in	12″	N/A	N/A	N/A	N/A	N/A	N/A

Technical data based on 2 ft. straight lengths of hose @ 72 deg.
