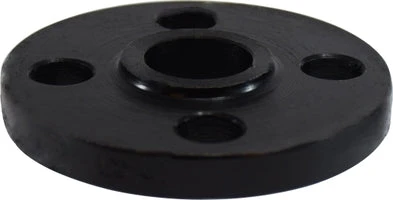

107024 By Midland | Slip-On 1/16″ Raised Face Flange | 1-1/2″ Female Pipe | Carbon Steel

Original price was: $19.53.Current price is: $13.67.

SKU: AG9ZZ 8094582014117 Category: Adapters & More Tags: 1-1/2" Thread Size, Carbon Steel, Collection-lvl1_All Hose Ends, Collection-lvl2_Adapters and More, Collection-lvl3_Industrial Adapters, Female Pipe, Matrixify2nd50kProducts, Midland Industries, Nipples & Fittings, Slip-On 1/16" Raised Face Flanges

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Features:
Class 150 A105 Forged Steel
Specifications:
ASTMA105 ASME SA105 ANSI B16.5

Dimensions

Nominal Pipe Size	Outside Diameter D	O.D of Raised Face G	Diameter at Base of Hub X	Thickness T	Welding Neck Socket Welding B1	Welding Neck T1	Slip-on Threaded Socket Welding T2
1/2″	3.504″	1.382″	1.189″	0.441″	0.618″	1.882″	0.618″
3/4″	3.898″	1.689″	1.500″	0.500″	0.819″	2.059″	0.618″
1″	4.252″	2.000″	1.941″	0.559″	1.051″	2.189″	0.689″
1-1/4″	4.606″	2.500″	2.311″	0.618″	1.382″	2.252″	0.811″
1-1/2″	5.000″	2.882″	2.559″	0.689″	1.610″	2.441″	0.882″
2″	5.984″	3.618″	3.059″	0.752″	2.071″	2.500″	1.000″
2-1/2″	7.008″	4.118″	3.559″	0.882″	2.469″	2.752″	1.118″
3″	7.520″	5.000″	4.252″	0.941″	3.071″	2.752″	1.189″
4″	9.016″	6.189″	5.311″	0.941″	4.031″	3.000″	1.311″
6″	10.984″	8.500″	7.559″	1.000″	6.071″	3.500″	1.559″
8″	13.504″	10.618″	9.689″	1.118″	7.980″	4.000″	1.752″
10″	15.984″	12.752″	12.000″	1.189″	10.020″	4.000″	1.941″
12″	19.016″	15.000″	14.382″	1.252″	12.000″	4.500″	2.189″

Part Number	Size	Depth of Socket (in.)	Bolt Circle Diameter	Number of Holes	Diameter of Holes	Diameter of Bolts (in.)	Machine Bolt Length (Raised Face)	Stud Bolt Length (Raised Face)	Stud Bolt Length (Ring Joint)	Welding Neck (lbs.)	Slip-on and Threaded (lbs.)	Blind (lbs.)
107020 (107-020)	1/2″	0.382″	2.382″	4	0.618″	1/2″	2.00″	2.252″	–	1.146 lbs	1.036 lbs	1.036 lbs
107021 (107-021)	3/4″	0.441″	2.752″	4	0.618″	1/2″	2.00″	2.50″	–	2.028 lbs	1.653 lbs	1.389 lbs
107022 (107-022)	1″	0.500″	3.118″	4	0.618″	1/2″	2.252″	2.50″	3.00″	2.425 lbs	1.893 lbs	2.094 lbs
107023 (107-023)	1-1/4″	0.559″	3.50″	4	0.618″	1/2″	2.252″	2.752″	3.252″	3.086 lbs	3.086 lbs	3.086 lbs
107024 (107-024)	1-1/2″	0.618″	3.882″	4	0.618″	1/2″	2.50″	2.752″	3.252	3.99 lbs	3.109 lbs	3.571 lbs
107025 (107-025)	2″	0.689″	4.752″	4	0.752″	5/8″	2.752″	3.252″	3.752″	6.173 lbs	4.982 lbs	5.82 lbs
107026 (107-026)	2-1/2″	0.752″	5.5″	4	0.752″	5/8″	3.00″	3.50″	4.00	9.436 lbs	7.562 lbs	8.951 lbs
107027 (107-027)	3″	0.811″	6.0″	4	0.752″	5/8″	3.00″	3.50″	4.00	11.42 lbs	8.818 lbs	11.023 lbs
107029 (107-029)	4″	0.941″	7.50″	8	0.752″	5/8″	3.00″	3.50″	4.00	16.138 lbs	12.677 lbs	16.535 lbs
107031 (107-031)	6″	1.059″	9.5″	8	0.882″	3/4″	3.252″	4.00″	4.50″	24.824 lbs	17.196 lbs	26.455 lbs
107032 (107-032)	8″	1.252″	11.752″	8	0.882″	3/4″	3.50″	4.252″	4.752″	39.683 lbs	28.66 lbs	44.092 lbs
107033 (107-033)	10″	1.311″	14.252″	12	1.00″	7/8″	4.00″	4.50″	5.00″	55.116 lbs	37.699 lbs	66.139 lbs
107034 (107-034)	12″	1.559″	17″	12	1.00″	7/8″	4.00″	4.752″	5.252″	85.936 lbs	61.024 lbs	97.003 lbs
