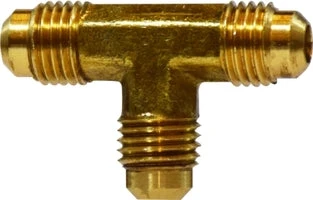

10160 By Midland | SAE 45° Flare Fitting | Union Forged | 5/16″ Male SAE 45° Flare | Tee | Brass

Original price was: $12.00.Current price is: $8.40.

SKU: AG9ZZ 8067173941413 Category: Adapters & More Tags: 5/16" Thread Size, Brass, Brass Fittings, Collection-lvl1_All Hose Ends, Collection-lvl2_Adapters and More, Collection-lvl3_Hydraulic Adapters, Collection-lvl3_Industrial Adapters, Male SAE 45° Flare x Male SAE 45° Flare x Male SAE 45° Flare, Matrixify2nd50kProducts, Midland Industries, SAE 45° Flare Fittings, Union Forged Tee

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

SPECIFICATIONS

Applications:	LP and Natural Gas, Flammable Liquids, Instrumentation, Refrigeration, Power Steering, Hydraulic and Pneumatic Systems.	Used With:	Copper, Brass, Aluminum and Steel hydraulic tubing that can be flared.
SAE Rating:	SAE# 010401	Conformance:	Meets specifications and standards of ASA, ASME, SAE and MS (Military standards).
Vibration:	Good resistance – use long nut when greater vibration resistance is required.	Temperature Range:	-65°F to +250°F (-53°C to +121°C) range at maximum operating pressures
Tolerance:	+/- .03 on all dimensions. Dimension data can change without notice. Please call us when dimensions are critical.	Lead Free:	Not Lead Free

Working Pressure Ranges:
Temperature and type of tubing used are important factors. However, the following table is a good guide for proper selection. Temperature 730F with copper tubing:
Assembly Instructions:
1) Cut tubing to desired length. Make sure all burrs are removed and ends are cut square. 2) Slide nut on tube. Threaded end “A” of nut must face out. 3) Flare end of tube with a 450 flaring tool. A) Measure flare diameter B) Examine flare for excessive thin out. 4) Lubricate threads and assemble to fitting body. Nut should be turned hand tight. 5) Tighten assembly with wrench until a solid feeling is encountered. From that point, apply a one-sixth turn. Note: Do not over-torque as it may damage the fitting or split the tubing at the flare.


Tube OD	1/8″	3/16″	1/4″	5/16″	3/8″	7/16″	1/2″	5/8″	3/4″
Thread Size B	5/16-24	3/8-24	7/16-20	1/2-20	5/8-18	11/16-16	3/4-16	7/8-14	1-1/16-14

Crossover Series:
44F	404	244	244F	T2	144F


Part Number	Male SAE 45° Flare	A	Body Size	Approx. Weight (Lbs.)
10157 (10-157)	1/8″	0.67″	0.36″	0.04
10158 (10-158)	3/16″	0.75″	0.36″	0.06
10159 (10-159)	1/4″	0.78″	0.36″	0.06
10160 (10-160)	5/16″	0.91″	0.44″	0.10
10161 (10-161)	3/8″	1.00″	0.44″	0.12
10162 (10-162)	1/2″	1.16″	0.59″	0.19
10163 (10-163)	5/8″	1.41″	0.69″	0.30
10164 (10-164)	3/4″	1.64″	0.88″	0.53
10165 (10-165)	7/8″	1.75″	1.25″	0.93
