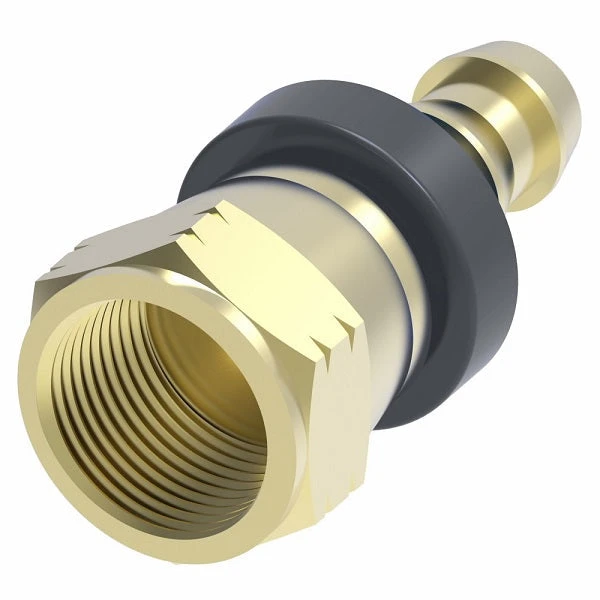

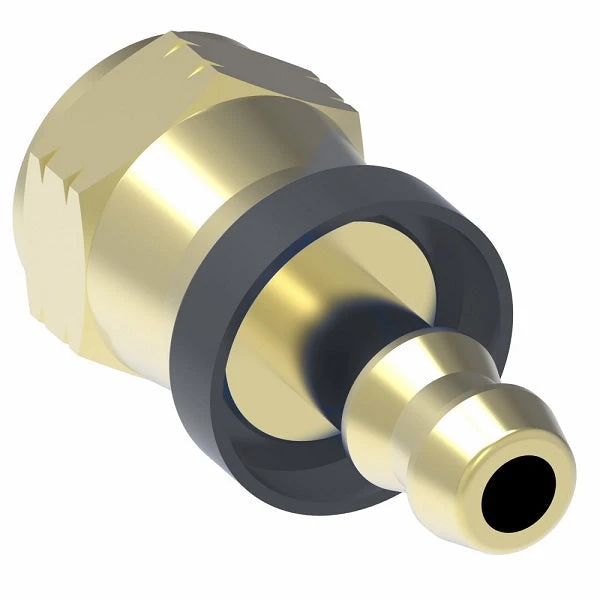

10008B-608 Weatherhead By Danfoss | Female JIC 37° Swivel Field Attachable Push-On Fitting | 100 'B' Series Barb-Tite | -08 Female JIC 37° Swivel X -08 Push-On Hose Barb | Brass

10008B-608 Weatherhead By Danfoss | Female JIC 37° Swivel Field Attachable Push-On Fitting | 100 ‘B’ Series Barb-Tite | -08 Female JIC 37° Swivel X -08 Push-On Hose Barb | Brass

Original price was: $12.00.Current price is: $8.40.

SKU: AG9ZZ 8200203075749 Categories: Fittings & Clamps, Specialty Hose Fittings Tags: Collection-lvl1_All Hose Ends, Collection-lvl2_Ends for Special Hose Types, Created in 2023, Matrixify3rd50kProducts

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Note:
Pressure: Determined by maximum working pressure for hose size. CAUTION: Sealing integrity may be damaged by the use of clamps. Label Set: FS-500
Material:
CA360 Brass
Compatible Hose:
H100, H101, H201, H332, 35FH
Assembly instructions:
To determine the correct length of hose, subtract the cut-off factor for each end Fitting from the overall length of assembly. 1. Lubricate insert. 2. Hold hose at angle as shown and push on and up over first barb. 3. Continue to push straight on until hose is seated under protective plastic cap. (Keep hand back from hose end area so that hose can expand.) Assembly Lubricant: 1 Gallon: 222070-8 1 Pint: 222070
Disassembly instructions:
1. Split hose as shown. Do not cut completely through hose. Sealing edge of barb could be damaged. 2. Bend hose and remove with quick pull.


Brass Part Number	Hose I.D.	Tube Size	Thread Size	A	Hose Cut-off Factor	Hole Diameter	Hex F
10004B-604*	1/4″	1/4″	7/16-20	1.38″	0.74″	0.172″	9/16″
10005B-605*	5/16″	5/16″	1/2-20	1.54″	0.83″	0.234″	11/16″
10006B-606	3/8″	3/8″	9/16-18	1.66″	0.88″	0.297″	11/16″
10008B-608*	1/2″	1/2″	3/4-16	2.06″	1.06″	0.391″	7/8″
