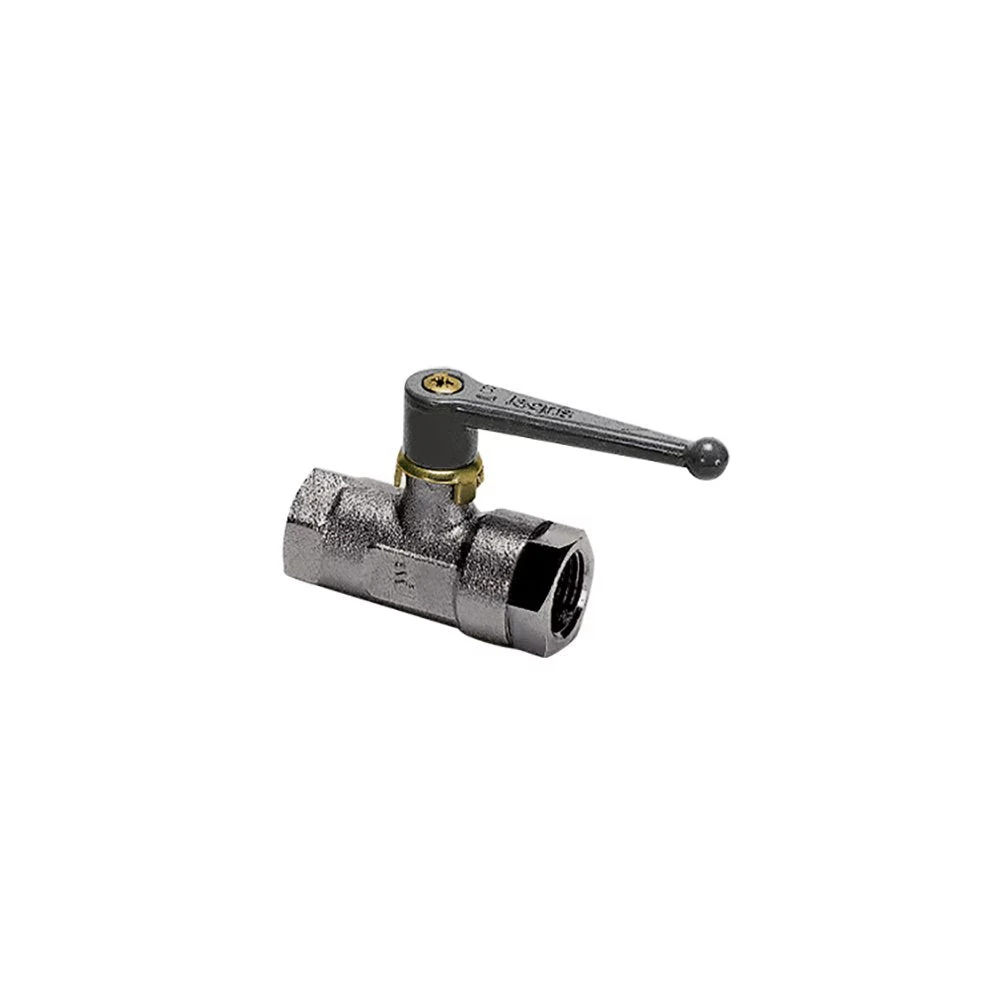

0402 07 10 By Parker | Legris In-Line Ball Valve | 1/8" Female BSPP Thread | 19 Mm Hex | 19 Mm Hex | 51 Mm Valve Length | Straight | Nickel-Plated Brass | Pack Of 10

0402 07 10 By Parker | Legris In-Line Ball Valve | 1/8″ Female BSPP Thread | 19 Mm Hex | 19 Mm Hex | 51 Mm Valve Length | Straight | Nickel-Plated Brass | Pack Of 10

Original price was: $322.52.Current price is: $97.99.

SKU: AG9ZZ 14646640312690 Categories: Adapters & More, Valves Tags: Created in 2024, Matrixify3rd50kProducts

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum up to 40 bar, depending on the model Working Temperature: -20°C to +80°C up to -40°C with no handle operation
Advantages:	Automatic seal wear compensation Vacuum resistance Ease of operation Short, repositionable and exchangeable handles
Regulations:	RoHS PED REACH
Component Materials:	Body: Nickel-plated brass Stem: NBR Stem seal: NBR Seat seal: Graphite-impregnated polyamide Ball: Nickel-Plated Polished Brass Locking Nut: Nickel-plated brass Wear-compensation seal: NBR Lever: Treated Zamak Lever fixing screw: Zinc-Plated Steel


Part Number	Diameter Nominal (DN)	C	E	F	F1	H	H1	L	L1	M	Kg
0402 04 10	4 mm	1/8″	8 mm	–	14 mm	35 mm	29 mm	44 mm	25 mm	48 mm	.094 Kg
0402 07 10	7 mm	1/8″	8 mm	19 mm	19 mm	38 mm	31 mm	51 mm	27 mm	48 mm	.165 Kg
0402 07 13	7 mm	1/4″	12 mm	19 mm	19 mm	38 mm	31 mm	53 mm	28 mm	48 mm	.156 Kg
0402 10 17	10 mm	3/8″	12 mm	24 mm	24 mm	45 mm	43 mm	59 mm	31 mm	69 mm	.244 Kg
0402 13 21	13 mm	1/2″	15 mm	27 mm	27 mm	47 mm	44 mm	67 mm	34 mm	69 mm	.292 Kg
0402 20 27	20 mm	3/4″	16.5 mm	32 mm	38 mm	63 mm	54 mm	80 mm	39 mm	108 mm	.655 Kg
0402 23 34	23 mm	1″	19 mm	41 mm	46 mm	67 mm	57 mm	94 mm	47 mm	108 mm	.1.036 Kg
0402 32 42	32 mm	1-1/4″	21.5 mm	55 mm	60 mm	97 mm	115 mm	112 mm	59 mm	180 mm	2.467 Kg
0402 40 48	40 mm	2″	26 mm	70 mm	70 mm	104 mm	–	122 mm	61 mm	190 mm	2.614 Kg

*Models with EC marking
Maximum working pressure: 40 bar
