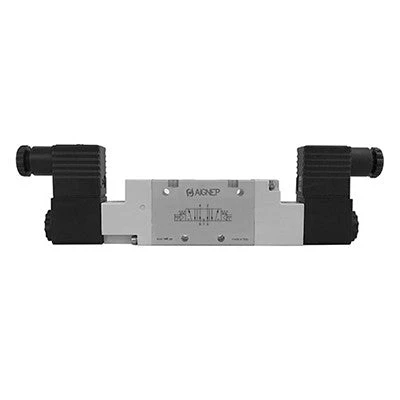

01VS07CC050201 By AIGNEP | 01V Control Valves Series | 5/3 Double Solenoid Pilot/Spring Centered Closed Center G-Thread 1/2″ | 24V DC/3W Coil | Black Con
Original price was: $163.92.$95.99Current price is: $95.99.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
SOLENOID PILOT VALVE
Technical Characteristics:
Operating Rating:
0 Ć· 10 bar
0 Ć· 145 psi
Operating Pressure:
Monostable: 2 Ć· 10 bar / 29 Ć· 145 psi
Bistable: 1 Ć· 10 bar / 14.5 Ć· 145 psi
Temperature:
Min: 14Ā°F (-10Ā°C)
Max: 140Ā°F (60Ā°C)
Component Parts and Materials:
ā¢ Anodised and painted aluminium body (1/8 – 1/4 – 1/2)
ā¢ Anodised aluminium body (3/8)
ā¢ Chemical nickel-plated spool
ā¢ NBR seals
| Part Number (Black Con) | Part Number (LED Con) | Solenoid Voltage | Minimum Power | Ways | Reactuation | Function | Size |
|---|---|---|---|---|---|---|---|
| 01VS07CC020201 | 01VS07CC020202 | 12V DC | 3W | 5/3 | Monostable Spring Return | Center Closed (CC) | G 1/8″ |
| 01VS07CC020102 | 01VS07CC020102 | 24V DC | 3W | 5/3 | Monostable Spring Return | Center Closed (CC) | G 1/8″ |
| 01VS07CC020301 | 01VS07CC020302 | 24V DC | 2W | 5/3 | Monostable Spring Return | Center Closed (CC) | G 1/8″ |
| 01VS07CC020401 | 01VS07CC020402 | 24V AC | 5VA | 5/3 | Monostable Spring Return | Center Closed (CC) | G 1/8″ |
| 01VS07CC020501 | 01VS07CC020502 | 110V AC | 5VA | 5/3 | Monostable Spring Return | Center Closed (CC) | G 1/8″ |
| 01VS07CC020601 | 01VS07CC020602 | 220V AC | 5VA | 5/3 | Monostable Spring Return | Center Closed (CC) | G 1/8″ |
| 01VS07CC030101 | 01VS07CC030102 | 12V DC | 3W | 5/3 | Monostable Spring Return | Center Closed (CC) | G 1/4″ |
| 01VS07CC030201 | 01VS07CC030202 | 24V DC | 3W | 5/3 | Monostable Spring Return | Center Closed (CC) | G 1/4″ |
| 01VS07CC030301 | 01VS07CC030302 | 24V DC | 2W | 5/3 | Monostable Spring Return | Center Closed (CC) | G 1/4″ |
| 01VS07CC030401 | 01VS07CC030402 | 24V AC | 5VA | 5/3 | Monostable Spring Return | Center Closed (CC) | G 1/4″ |
| 01VS07CC020502 | 01VS07CC030501 | 110V AC | 5VA | 5/3 | Monostable Spring Return | Center Closed (CC) | G 1/4″ |
| 01VS07CC030601 | 01VS07CC030602 | 220V AC | 5VA | 5/3 | Monostable Spring Return | Center Closed (CC) | G 1/4″ |
| 01VS07CC050201 | 01VS07CC050102 | 12V DC | 3W | 5/3 | Monostable Spring Return | Center Closed (CC) | G 1/2″ |
| 01VS07CC050301 | 01VS07CC050302 | 24V DC | 3W | 5/3 | Monostable Spring Return | Center Closed (CC) | G 1/2″ |
| 01VS07OC050301 | 01VS07CC050302 | 24V DC | 2W | 5/3 | Monostable Spring Return | Center Closed (CC) | G 1/2″ |
| 01VS07CC050401 | 01VS07CC050402 | 24V AC | 5VA | 5/3 | Monostable Spring Return | Center Closed (CC) | G 1/2″ |
| 01VS07CC050501 | 01VS07CC050502 | 110V AC | 5VA | 5/3 | Monostable Spring Return | Center Closed (CC) | G 1/2″ |
| 01VS07CC050601 | 01VS07CC050602 | 220V AC | 5VA | 5/3 | Monostable Spring Return | Center Closed (CC) | G 1/2″ |
