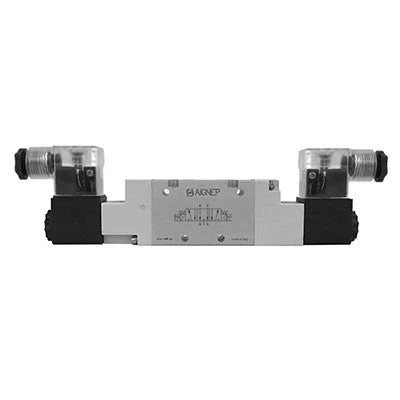

01VS07CC02N0102 By AIGNEP | 01V Control Valves Series | 5/3 Double Solenoid Pilot/Spring Center Closed Center 1/8″ NPTF | 12V DC/3 W Coil | LED Con
Original price was: $89.44.$62.61Current price is: $62.61.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
SOLENOID PILOT VALVE
Technical Characteristics:
Operating Rating:
0 ÷ 10 bar
0 ÷ 145 psi
Operating Pressure:
Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi
Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi
Temperature:
Min: 14°F (-10°C)
Max: 140°F (60°C)
Component Parts and Materials:
• Anodised and painted aluminium body (1/8 – 1/4 – 1/2)
• Anodised aluminium body (3/8)
• Chemical nickel-plated spool
• NBR seals
| Part Number (Black Con) | Part Number (LED Con) | Solenoid Voltage | Minimum Power | Ways | Reactuation | Function | Size |
|---|---|---|---|---|---|---|---|
| 01VS07CC02N0201 | 01VS07CC02N0202 | 12V DC | 3W | 5/3 | Monostable Spring Return | Center Closed (CC) | 1/8″ NPTF |
| 01VS07CC020301 | 01VS07CC02N0102 | 24V DC | 3W | 5/3 | Monostable Spring Return | Center Closed (CC) | 1/8″ NPTF |
| 01VS07CC02N0301 | 01VS07CC02N0302 | 24V DC | 2W | 5/3 | Monostable Spring Return | Center Closed (CC) | 1/8″ NPTF |
| 01VS07CC02N0401 | 01VS07CC02N0402 | 24V AC | 5VA | 5/3 | Monostable Spring Return | Center Closed (CC) | 1/8″ NPTF |
| 01VS07CC02N0501 | 01VS07CC02N0502 | 110V AC | 5VA | 5/3 | Monostable Spring Return | Center Closed (CC) | 1/8″ NPTF |
| 01VS07CC02N0601 | 01VS07CC02N0602 | 220V AC | 5VA | 5/3 | Monostable Spring Return | Center Closed (CC) | 1/8″ NPTF |
| 01VS07CC03N0101 | 01VS07CC03N0102 | 12V DC | 3W | 5/3 | Monostable Spring Return | Center Closed (CC) | 1/4″ NPTF |
| 01VS07CC03N0201 | 01VS07CC03N0202 | 24V DC | 3W | 5/3 | Monostable Spring Return | Center Closed (CC) | 1/4″ NPTF |
| 01VS07CC03N0301 | 01VS07CC03N0302 | 24V DC | 2W | 5/3 | Monostable Spring Return | Center Closed (CC) | 1/4″ NPTF |
| 01VS07CC03N0401 | 01VS07CC03N0402 | 24V AC | 5VA | 5/3 | Monostable Spring Return | Center Closed (CC) | 1/4″ NPTF |
| 01VS07CC03N0501 | 01VS07CC03N0502 | 110V AC | 5VA | 5/3 | Monostable Spring Return | Center Closed (CC) | 1/4″ NPTF |
| 01VS07CC03N0601 | 01VS07CC03N0602 | 220V AC | 5VA | 5/3 | Monostable Spring Return | Center Closed (CC) | 1/4″ NPTF |
| 01VS07CC05N0101 | 01VS07CC05N0102 | 12V DC | 3W | 5/3 | Monostable Spring Return | Center Closed (CC) | 1/2″ NPTF |
| 01VS07CC05N0301 | 01VS07CC05N0302 | 24V DC | 3W | 5/3 | Monostable Spring Return | Center Closed (CC) | 1/2″ NPTF |
| 01VS07OC05N0301 | 01VS07CC05N0302 | 24V DC | 2W | 5/3 | Monostable Spring Return | Center Closed (CC) | 1/2″ NPTF |
| 01VS07CC05N0401 | 01VS07CC05N0402 | 24V AC | 5VA | 5/3 | Monostable Spring Return | Center Closed (CC) | 1/2″ NPTF |
| 01VS07CC05N0501 | 01VS07CC05N0502 | 110V AC | 5VA | 5/3 | Monostable Spring Return | Center Closed (CC) | 1/2″ NPTF |
| 01VS07CC05N0601 | 01VS07CC05N0602 | 220V AC | 5VA | 5/3 | Monostable Spring Return | Center Closed (CC) | 1/2″ NPTF |
