Sale!

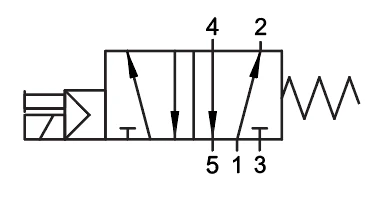

01VS0500030502 By AIGNEP | 01V Control Valves Series | 5/2 Single Solenoid Pilot Valve/Spring Return 1/4″ | 110V AC/5VA Coil | LED Con
Original price was: $63.13.$44.19Current price is: $44.19.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
SOLENOID PILOT VALVE
Technical Characteristics:
Operating Rating:
0 ÷ 10 bar
0 ÷ 145 psi
Operating Pressure:
Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi
Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi
Temperature:
Min: 14°F (-10°C)
Max: 140°F (60°C)
Component Parts and Materials:
• Anodised and painted aluminium body (1/8 – 1/4 – 1/2)
• Anodised aluminium body (3/8)
• Chemical nickel-plated spool
• NBR seals
| Part Number (Black Con) | Part Number (LED Con) | Solenoid Voltage | Minimum Power | Ways | Reactuation | Size |
|---|---|---|---|---|---|---|
| 01VS0500020101 | 01VS0500020102 | 12V DC | 3W | 5/2 | Monostable Spring Return | G 1/8″ |
| 01VS0500020201 | 01VS0500020202 | 24V DC | 3W | 5/2 | Monostable Spring Return | G 1/8″ |
| 01VS0500020301 | 01VS0500020302 | 24V DC | 2W | 5/2 | Monostable Spring Return | G 1/8″ |
| 01VS0500020401 | 01VS0500020402 | 24V AC | 5VA | 5/2 | Monostable Spring Return | G 1/8″ |
| 01VS0500020501 | 01VS0500020502 | 110V AC | 5VA | 5/2 | Monostable Spring Return | G 1/8″ |
| 01VS0500020601 | 01VS0500020602 | 220V AC | 5VA | 5/2 | Monostable Spring Return | G 1/8″ |
| 01VS0500030101 | 01VS0500030102 | 12V DC | 3W | 5/2 | Monostable Spring Return | G 1/4″ |
| 01VS0500030201 | 01VS0500030202 | 24V DC | 3W | 5/2 | Monostable Spring Return | G 1/4″ |
| 01VS0500030301 | 01VS0500030302 | 24V DC | 2W | 5/2 | Monostable Spring Return | G 1/4″ |
| 01VS0500030401 | 01VS0500030402 | 24V AC | 5VA | 5/2 | Monostable Spring Return | G 1/4″ |
| 01VS0500030501 | 01VS0500030502 | 110V AC | 5VA | 5/2 | Monostable Spring Return | G 1/4″ |
| 01VS0500030601 | 01VS0500030602 | 220V AC | 5VA | 5/2 | Monostable Spring Return | G 1/4″ |
| 01VS0500050101 | 01VS0500050102 | 12V DC | 3W | 5/2 | Monostable Spring Return | G 1/2″ |
| 01VS0500050201 | 01VS0500050202 | 24V DC | 3W | 5/2 | Monostable Spring Return | G 1/2″ |
| 01VS0500050301 | 01VS0500050302 | 24V DC | 2W | 5/2 | Monostable Spring Return | G 1/2″ |
| 01VS0500050401 | 01VS0500050402 | 24V AC | 5VA | 5/2 | Monostable Spring Return | G 1/2″ |
| 01VS0500050501 | 01VS0500050502 | 110V AC | 5VA | 5/2 | Monostable Spring Return | G 1/2″ |
| 01VS0500050601 | 01VS0500050602 | 220V AC | 5VA | 5/2 | Monostable Spring Return | G 1/2″ |
