Sale!

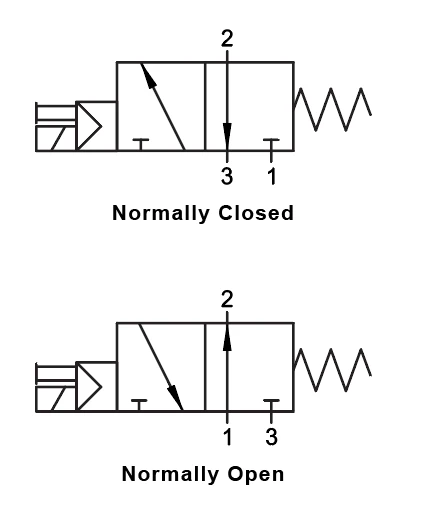

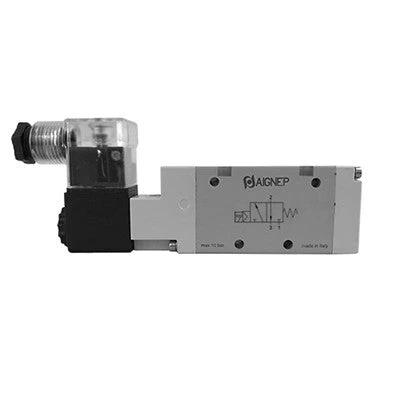

01VS03NO05N0502 By AIGNEP | 01V Control Valves Series | 3/2 Normally Open Single Solenoid Pilot/Spring Return 1/2" NPTF | 110V AC/5VA Coil | LED Con

01VS03NO05N0502 By AIGNEP | 01V Control Valves Series | 3/2 Normally Open Single Solenoid Pilot/Spring Return 1/2" NPTF | 110V AC/5VA Coil | LED Con - Image 2

01VS03NO05N0502 By AIGNEP | 01V Control Valves Series | 3/2 Normally Open Single Solenoid Pilot/Spring Return 1/2″ NPTF | 110V AC/5VA Coil | LED Con

Original price was: $112.05.Current price is: $78.44.

SKU: AG9ZZ 7711670698149 Categories: Adapters & More, Valves Tags: 01V Control Valves Series, 110V AC/5VA coil, 3/2 Normally Open Single Solenoid Pilot/Spring Return 1/2" NPTF, Collection-lvl1_All Hose Accessories, Collection-lvl2_Valves, Collection-lvl3_Needle and Flow Control Valves, LED Con, Matrixify2nd50kProducts

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

SOLENOID PILOT VALVE

Technical Characteristics:

Operating Rating:
0 ÷ 10 bar
0 ÷ 145 psi

Operating Pressure:
Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi
Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi

Temperature:
Min: 14°F (-10°C)
Max: 140°F (60°C)

Component Parts and Materials:
• Anodised and painted aluminium body (1/8 – 1/4 – 1/2)
• Anodised aluminium body (3/8)
• Chemical nickel-plated spool
• NBR seals

Part Number (Black Con)	Part Number (LED Con)	Solenoid Voltage	Minimum Power	Ways	Reactuation	Function	Size
01VS03NO02N0101	01VS03NO02N0102	12V DC	3W	3/2	Monostable Spring Return	Normally Open (NO)	1/8″ NPTF
01VS03NO02N0201	01VS03NO02N0202	24V DC	3W	3/2	Monostable Spring Return	Normally Open (NO)	1/8″ NPTF
01VS03NO02N0301	01VS03NO02N0302	24V DC	2W	3/2	Monostable Spring Return	Normally Open (NO)	1/8″ NPTF
01VS03NO02N0401	01VS03NO02N0402	24V AC	5VA	3/2	Monostable Spring Return	Normally Open (NO)	1/8″ NPTF
01VS03NO02N0501	01VS03NO02N0502	110V AC	5VA	3/2	Monostable Spring Return	Normally Open (NO)	1/8″ NPTF
01VS03NO02N0601	01VS03NO02N0602	220V AC	5VA	3/2	Monostable Spring Return	Normally Open (NO)	1/8″ NPTF
01VS03NO03N0101	01VS03NO03N0102	12V DC	3W	3/2	Monostable Spring Return	Normally Open (NO)	1/4″ NPTF
01VS03NO03N0201	01VS03NO03N0202	24V DC	3W	3/2	Monostable Spring Return	Normally Open (NO)	1/4″ NPTF
01VS03NO03N0301	01VS03NO03N0302	24V DC	2W	3/2	Monostable Spring Return	Normally Open (NO)	1/4″ NPTF
01VS03NO03N0401	01VS03NO03N0402	24V AC	5VA	3/2	Monostable Spring Return	Normally Open (NO)	1/4″ NPTF
01VS03NO03N0501	01VS03NO03N0502	110V AC	5VA	3/2	Monostable Spring Return	Normally Open (NO)	1/4″ NPTF
01VS03NO03N0601	01VS03NO03N0602	220V AC	5VA	3/2	Monostable Spring Return	Normally Open (NO)	1/4″ NPTF
01VS03NO05N0101	01VS03NO05N0102	12V DC	3W	3/2	Monostable Spring Return	Normally Open (NO)	1/2″ NPTF
01VS03NO05N0201	01VS03NO05N0202	24V DC	3W	3/2	Monostable Spring Return	Normally Open (NO)	1/2″ NPTF
01VS03NO05N0301	01VS03NO05N0302	24V DC	2W	3/2	Monostable Spring Return	Normally Open (NO)	1/2″ NPTF
01VS03NO05N0401	01VS03NO05N0402	24V AC	5VA	3/2	Monostable Spring Return	Normally Open (NO)	1/2″ NPTF
01VS03NO05N0501	01VS03NO05N0502	110V AC	5VA	3/2	Monostable Spring Return	Normally Open (NO)	1/2″ NPTF
01VS03NO05N0601	01VS03NO05N0602	220V AC	5VA	3/2	Monostable Spring Return	Normally Open (NO)	1/2″ NPTF
