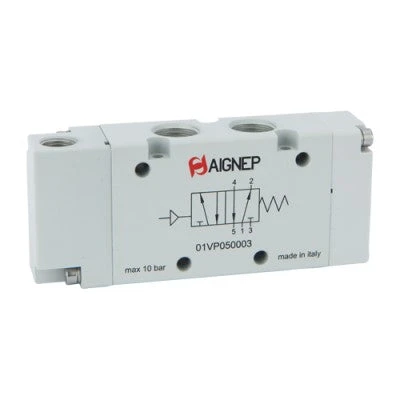

01VP050003 By AIGNEP | 01V Control Valves Series | Pneumatic Valve | 5/2 Single Air Pilot/Spring Return 1/4″ G-Thread Ports

PNEUMATIC VALVE

Technical Characteristics:

Operating Rating:
0 ÷ 10 bar
0 ÷ 145 psi

Pressure Drive:
Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi
Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi

Temperature:
Min: 14°F (-10°C)
Max: 140°F (60°C)

Component Parts and Materials:
• Anodised and painted aluminium body
• Chemical nickel-plated spool
• NBR seals

Part Number	Ways	Reactuation	Function	Size
01VP03NC02	3/2	Single Air Pilot – Spring Return	Normally Closed (NC)	G 1/8
01VP03NC03	3/2	Single Air Pilot – Spring Return	Normally Closed (NC)	G 1/4
01VP03NC05	3/2	Single Air Pilot – Push/Pull	Normally Closed (NC)	G 1/2
01VP03NO02	3/2	Single Air Pilot – Spring Return	Normally Opened (NO)	G 1/8
01VP03NO03	3/2	Single Air Pilot – Spring Return	Normally Opened (NO)	G 1/4
01VP03NO05	3/2	Single Air Pilot – Spring Return	Normally Opened (NO)	G 1/2
01VP130002	3/2	Double Air Pilot	–	G 1/4
01VP130003	3/2	Double Air Pilot	–	G 1/4
01VP130005	3/2	Double Air Pilot	–	G 1/2
01VP050002	5/2	Single Air Pilot – Spring Return	–	G 1/8
01VP050003	5/2	Single Air Pilot – Spring Return	–	G 1/4
01VP050005	5/2	Single Air Pilot – Spring Return	–	G 1/2
