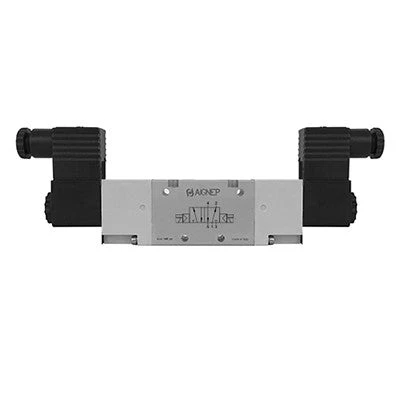

01VA1500020301 By AIGNEP | 01V Control Valves Series | 5/2 Double Solenoid Ext Pilot G-Thread 1/8″ | 24V DC/2 W Coil | Black Con
Original price was: $77.39.$54.17Current price is: $54.17.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
SOLENOID ASSISTED
Technical Characteristics:
Operating Rating:
0 ÷ 10 bar
0 ÷ 145 psi
Operating Pressure:
Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi
Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi
Temperature:
Min: 14°F (-10°C)
Max: 140°F (60°C)
Component Parts and Materials:
• Anodised and painted aluminium body
• Chemical nickel-plated spool
• NBR seals
| Part Number (Black Con) | Part Number (LED Con) | Solenoid Voltage | Minimum Power | Ways | Reactuation | Function | Size |
|---|---|---|---|---|---|---|---|
| 01VA1500020101 | 01VA1500020102 | 12V DC | 3W | 5/2 | Two Stable Positions | No Function (00) | G 1/8″ |
| 01VA1500020201 | 01VA1500020202 | 24V DC | 3W | 5/2 | Two Stable Positions | No Function (00) | G 1/8″ |
| 01VA1500020301 | 01VA1500020302 | 2W | 5/2 | Two Stable Positions | No Function (00) | G 1/8″ | |
| 01VA1500020401 | 01VA1500020402 | 24V AC | 5VA | 5/2 | Two Stable Positions | No Function (00) | G 1/8″ |
| 01VA1500020501 | 01VA1500020502 | 110V AC | 5VA | 5/2 | Two Stable Positions | No Function (00) | G 1/8″ |
| 01VA1500020601 | 01VA1500020602 | 220V AC | 5VA | 5/2 | Two Stable Positions | No Function (00) | G 1/8″ |
| 01VA1500030101 | 01VA1500030102 | 12V DC | 3W | 5/2 | Two Stable Positions | No Function (00) | G 1/4″ |
| 01VA1500030201 | 01VA1500030202 | 24V DC | 3W | 5/2 | Two Stable Positions | No Function (00) | G 1/4″ |
| 01VA1500030301 | 01VA1500030302 | 24V DC | 2W | 5/2 | Two Stable Positions | No Function (00) | G 1/4″ |
| 01VA1500030401 | 01VA1500030402 | 24V AC | 5VA | 5/2 | Two Stable Positions | No Function (00) | G 1/4″ |
| 01VA1500030501 | 01VA1500030502 | 110V AC | 5VA | 5/2 | Two Stable Positions | No Function (00) | G 1/4″ |
| 01VA1500030601 | 01VA1500030602 | 220V AC | 5VA | 5/2 | Two Stable Positions | No Function (00) | G 1/4″ |
