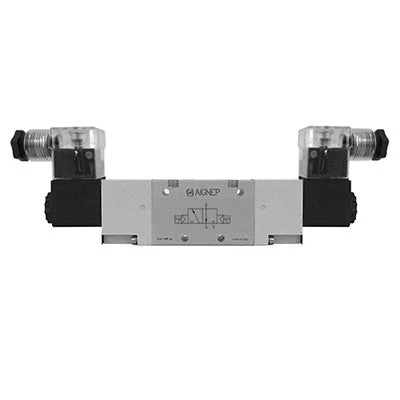

01VA130003N0502 By AIGNEP | 01V Control Valves Series | 3/2 Double Solenoid Ext Pilot 1/4″ NPTF | 110V AC/5VA Coil | LED Con
Original price was: $80.16.$56.11Current price is: $56.11.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
SOLENOID ASSISTED
Technical Characteristics:
Operating Rating:
0 ÷ 10 bar
0 ÷ 145 psi
Operating Pressure:
Monostable: 2 ÷ 10 bar / 29 ÷ 145 psi
Bistable: 1 ÷ 10 bar / 14.5 ÷ 145 psi
Temperature:
Min: 14°F (-10°C)
Max: 140°F (60°C)
Component Parts and Materials:
• Anodised and painted aluminium body
• Chemical nickel-plated spool
• NBR seals
| Part Number (Black Con) | Part Number (LED Con) | Solenoid Voltage | Minimum Power | Ways | Reactuation | Function | Size |
|---|---|---|---|---|---|---|---|
| 01VA130002N0101 | 01VA130002N0102 | 12V DC | 3W | 3/2 | Two Stable Positions | No Function (00) | 1/8″ NPTF |
| 01VA130002N0201 | 01VA130002N0202 | 24V DC | 3W | 3/2 | Two Stable Positions | No Function (00) | 1/8″ NPTF |
| 01VA130002N0301 | 01VA130002N0302 | 24V DC | 2W | 3/2 | Two Stable Positions | No Function (00) | 1/8″ NPTF |
| 01VA130002N0401 | 01VA130002N0402 | 24V AC | 5VA | 3/2 | Two Stable Positions | No Function (00) | 1/8″ NPTF |
| 01VA130002N0501 | 01VA130002N0502 | 110V AC | 5VA | 3/2 | Two Stable Positions | No Function (00) | 1/8″ NPTF |
| 01VA130002N0601 | 01VA130002N0602 | 220V AC | 5VA | 3/2 | Two Stable Positions | No Function (00) | 1/8″ NPTF |
| 01VA130003N0101 | 01VA130003N0102 | 12V DC | 3W | 3/2 | Two Stable Positions | No Function (00) | G 1/4″ |
| 01VA130003N0201 | 01VA130003N0202 | 24V DC | 3W | 3/2 | Two Stable Positions | No Function (00) | G 1/4″ |
| 01VA130003N0301 | 01VA130003N0302 | 24V DC | 2W | 3/2 | Two Stable Positions | No Function (00) | G 1/4″ |
| 01VA130003N0401 | 01VA130003N0402 | 24V AC | 5VA | 3/2 | Two Stable Positions | No Function (00) | G 1/4″ |
| 01VA130003N0501 | 01VA130003N0502 | 110V AC | 5VA | 3/2 | Two Stable Positions | No Function (00) | G 1/4″ |
| 01VA130003N0601 | 01VA130003N0602 | 220V AC | 5VA | 3/2 | Two Stable Positions | No Function (00) | G 1/4″ |
