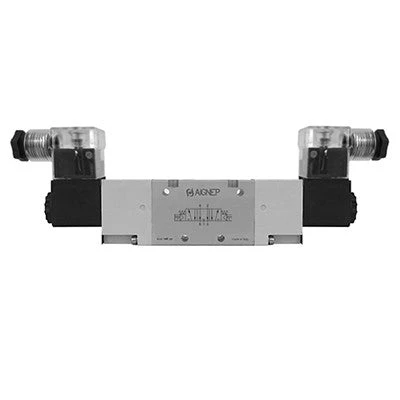

01VA07OC02N0402 By AIGNEP | 01V Control Valves Series | 5/3 Double Solenoid Ext Pilot | Open Center | Spring Centered | 1/8″ NPTF | 24V AC/5VA Coil | LED Con
Original price was: $87.37.$61.16Current price is: $61.16.
- 100% Quality Satisfaction
- Friendly, efficient service, always online.
- 7 days free returns
- Safe Payments, Happy Customers
SOLENOID ASSISTED
Technical Characteristics:
Operating Rating:
0 Ć· 10 bar
0 Ć· 145 psi
Operating Pressure:
Monostable: 2 Ć· 10 bar / 29 Ć· 145 psi
Bistable: 1 Ć· 10 bar / 14.5 Ć· 145 psi
Temperature:
Min: 14Ā°F (-10Ā°C)
Max: 140Ā°F (60Ā°C)
Component Parts and Materials:
ā¢ Anodised and painted aluminium body
ā¢ Chemical nickel-plated spool
ā¢ NBR seals
| Part Number (Black Con) | Part Number (LED Con) | Solenoid Voltage | Minimum Power | Ways | Reactuation | Function | Size |
|---|---|---|---|---|---|---|---|
| 01VA07OC02N0101 | 01VA07OC02N0102 | 12V DC | 3W | 5/3 | Monostable Spring Positions | Opened Center (OC) | 1/8″ NPTF |
| 01VA07OC02N0201 | 01VA07OC02N0202 | 24V DC | 3W | 5/3 | Monostable Spring Positions | Opened Center (OC) | 1/8″ NPTF |
| 01VA07OC02N0301 | 01VA07OC02N0302 | 2W | 5/3 | Monostable Spring Positions | Opened Center (OC) | 1/8″ NPTF | |
| 01VA07OC02N0401 | 01VA07OC02N0402 | 24V AC | 5VA | 5/3 | Monostable Spring Positions | Opened Center (OC) | 1/8″ NPTF |
| 01VA07OC02N0501 | 01VA07OC02N0502 | 110V AC | 5VA | 5/3 | Monostable Spring Positions | Opened Center (OC) | 1/8″ NPTF |
| 01VA07OC02N0601 | 01VA07OC02N0602 | 220V AC | 5VA | 5/3 | Monostable Spring Positions | Opened Center (OC) | 1/8″ NPTF |
| 01VA07OC03N0101 | 01VA07OC03N0102 | 12V DC | 3W | 5/3 | Monostable Spring Positions | Opened Center (OC) | 1/4″ NPTF |
| 01VA07OC03N0201 | 01VA07OC03N0202 | 24V DC | 3W | 5/3 | Monostable Spring Positions | Opened Center (OC) | 1/4″ NPTF |
| 01VA07OC03N0301 | 01VA07OC03N0302 | 24V DC | 2W | 5/3 | Monostable Spring Positions | Opened Center (OC) | 1/4″ NPTF |
| 01VA07OC03N0401 | 01VA07OC03N0402 | 24V AC | 5VA | 5/3 | Monostable Spring Positions | Opened Center (OC) | 1/4″ NPTF |
| 01VA07OC03N0501 | 01VA07OC03N0502 | 110V AC | 5VA | 5/3 | Monostable Spring Positions | Opened Center (OC) | 1/4″ NPTF |
| 01VA07OC03N0601 | 01VA07OC03N0602 | 220V AC | 5VA | 5/3 | Monostable Spring Positions | Opened Center (OC) | 1/4″ NPTF |
