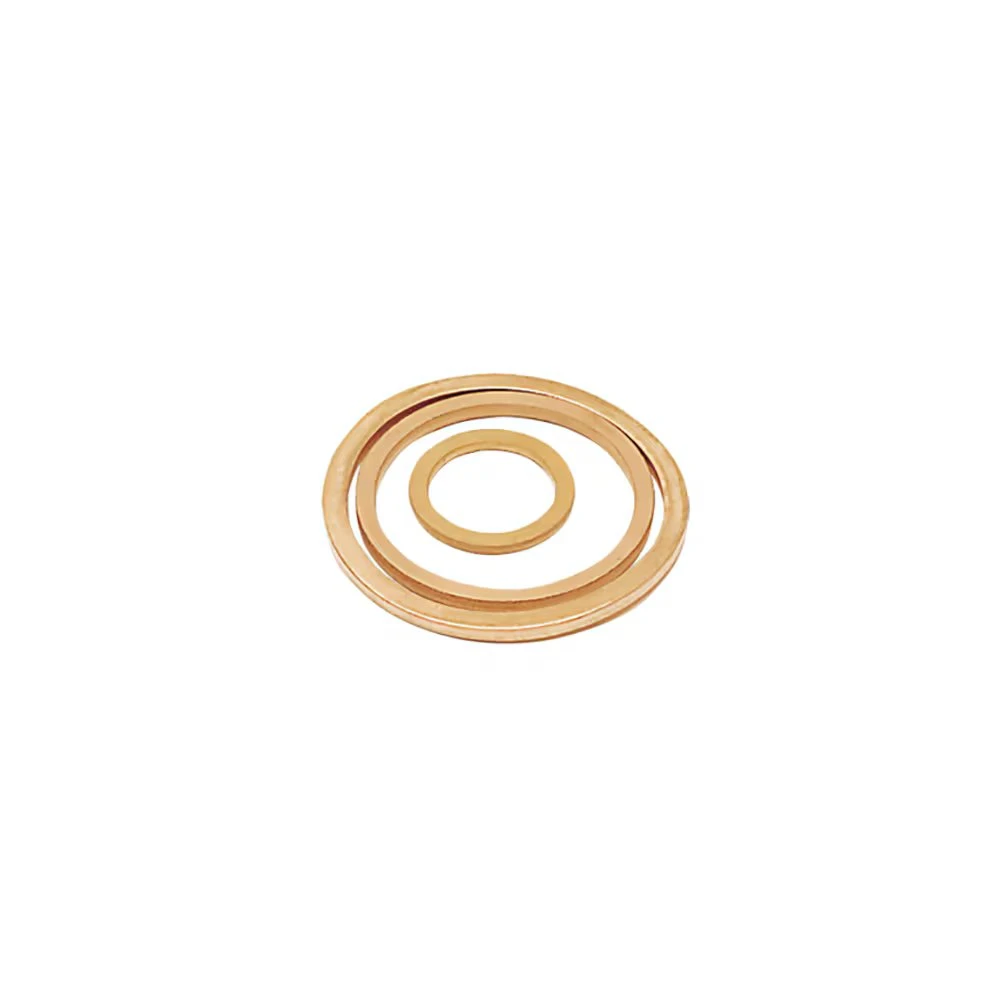

0138 22 00 By Parker | Legris M22 Washer | 27 Mm OD | Copper | Pack Of 50

Original price was: $205.33.Current price is: $97.99.

SKU: AG9ZZ 14646503637362 Categories: Adapters & More, O-Rings, Seals, and Gaskets Tags: Created in 2024, Matrixify3rd50kProducts

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Specification:
Product Features:	All brass construction Nickel plated adapters Robust design Reusable
Markets:	Industrial Construction Heavy duty truck Mobile Factory/process automation
Applications:	Air Lines Water Line Cooling Lines
Temperature Range:	Brass: 1/8″ to 1/2″: 2900 PSI (200 bar) 3/4″ and 1″: 2175 PSI (150 bar) without sealing washer	Nickel-Plated Brass: -76F to +302F (-60°C to +150°C) without sealing washer -4F to +34F (-20°C to +100°C) with sealing washer
Pressure Range:	Brass: 870 PSI (59.9 bar)	Nickel-Plated Brass: +14F to +176F (-10°C to +80°C)


Part Number	BSPP / M5 (C)	G1	G2	K	WT. Oz
0138 06 00	M6	6.3 mm	9 mm	1 mm	.033 Oz
0138 08 00	M8	8.3 mm	11 mm	1 mm	.001 Oz
0138 12 00	M12	12.3 mm	15.5 mm	1.5 mm	.072 Oz
0138 14 00	M14	14.3 mm	18 mm	1.5 mm	.001 Oz
0138 16 00	M16	16.3 mm	20 mm	1.5 mm	.001 Oz
0138 18 00	M18	18.3 mm	22 mm	1.5 mm	.001 Oz
0138 20 00	M20	20.3 mm	24 mm	1.5 mm	.001 Oz
0138 22 00	M22	22.3 mm	27 mm	1.5 mm	.002 Oz
0138 24 00	M24	24.3 mm	29 mm	2 mm	.003 Oz
0138 26 00	M26	26.3 mm	31 mm	2 mm	.003 Oz
0138 30 00	M30	30.3 mm	36 mm	2 mm	.004 Oz
0138 36 00	M36	36.3 mm	42 mm	2 mm	.005 Oz
0138 10 00	G1/8″	10.3 mm	13.5 mm	1 mm	.001 Oz
0138 13 00	G1/4″	13.5 mm	18 mm	1.3 mm	.001 Oz
0138 17 00	G3/8″	17.3 mm	21 mm	1.5 mm	.001 Oz
0138 21 00	G1/2″	21.3 mm	26 mm	1.5 mm	.002 Oz
0138 27 00	G3/4″	27.3 mm	32 mm	2 mm	.003 Oz
0138 33 00	G1″	33.5 mm	39 mm	2 mm	.005 Oz
0138 42 00	G1-1/4″	42.5 mm	49 mm	2 mm	.007 Oz
