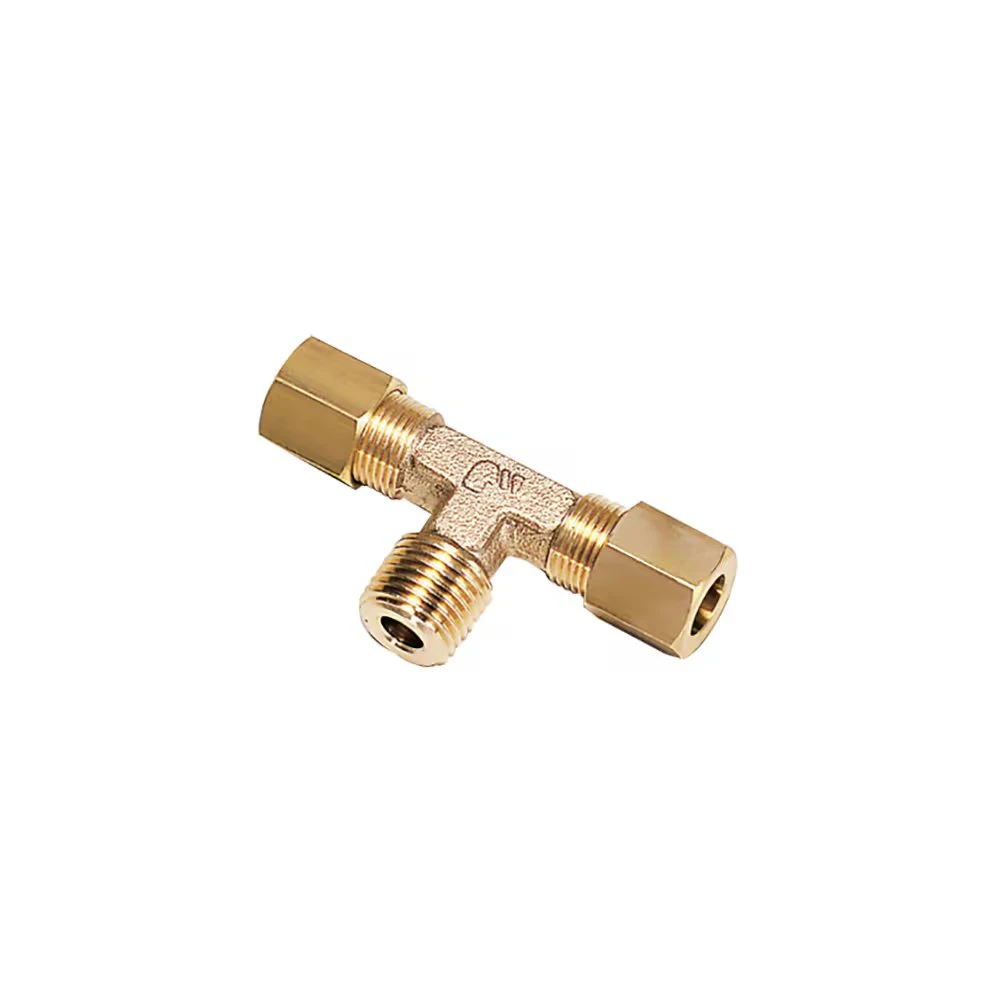

0108 12 13 By Parker | Legris Stud Fitting | 12 Mm Tube Size X 1/4" Male BSPT Thread | 22 Mm Hex | 60 Mm Length | Tee | Brass | Pack Of 10

0108 12 13 By Parker | Legris Stud Fitting | 12 Mm Tube Size X 1/4″ Male BSPT Thread | 22 Mm Hex | 60 Mm Length | Tee | Brass | Pack Of 10

Original price was: $216.63.Current price is: $95.99.

SKU: AG9ZZ 14646598107506 Categories: Fittings & Clamps, Tube Fittings Tags: Created in 2024, Matrixify3rd50kProducts

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Technical Characteristics:	Compatible Fluids: Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants Working Pressure: Vacuum to 550 bar Working Temperature: -60°C to +250°C (without sealing washer, with metal tubing)
Advantages:	22 configurations Excellent sealing due to the tightening of the olive onto the tube Metallic sealing for optimum service life, pressure, and temperature ranges Connection of different types of tubing and hose: metal, polymer, steel, rubber, etc. Multiple tube diameters can be connected using the Legris reducer assembly system
Regulations:	RoHS PED REACH
Component Materials:


Part Number	ØD	C	F	H	J	L/2	L1	Kg
0108 04 10	4 mm	1/8″	10 mm	17 mm	8 mm	19 mm	9.5 mm	.025 Kg
0108 06 10	6 mm	1/8″	13 mm	18 mm	8 mm	22 mm	11 mm	.033 Kg
0108 06 13	6 mm	1/4″	13 mm	21.5 mm	10 mm	27 mm	16 mm	.047 Kg
0108 08 10	8 mm	1/8″	14 mm	18.5 mm	10 mm	28 mm	15 mm	.045 Kg
0108 08 13	8 mm	3/8″	14 mm	24 mm	12 mm	28 mm	15 mm	.062 Kg
0108 08 17	4 mm	1/8″	10 mm	17 mm	8 mm	19 mm	9 mm	.025 Kg
0108 10 13	10 mm	3/8″	19 mm	25 mm	12 mm	30 mm	14.5 mm	.085 Kg
0108 10 17	10 mm	3/8″	19 mm	25.5 mm	12 mm	30 mm	14.5 mm	.092 Kg
0108 12 13	12 mm	1/4″	22 mm	26 mm	15 mm	30 mm	15 mm	.114 Kg
0108 12 17	12 mm	3/8″	22 mm	27 mm	15 mm	30 mm	15 mm	.118 Kg
0108 14 21	14 mm	1/2″	24 mm	32 mm	19 mm	35 mm	18 mm	.169 Kg
0108 16 17	16 mm	3/8″	27 mm	30 mm	19 mm	39 mm	21 mm	.192 Kg
0108 16 21	16 mm	1/2″	27 mm	33.5 mm	19 mm	39 mm	21 mm	.206 Kg
0108 20 27	20 mm	3/4″	32 mm	38 mm	23 mm	42 mm	21.5 mm	.301 Kg

Metric taper threads or Briggs (NPT threads) are available by special order, subject to minimum quantities.
