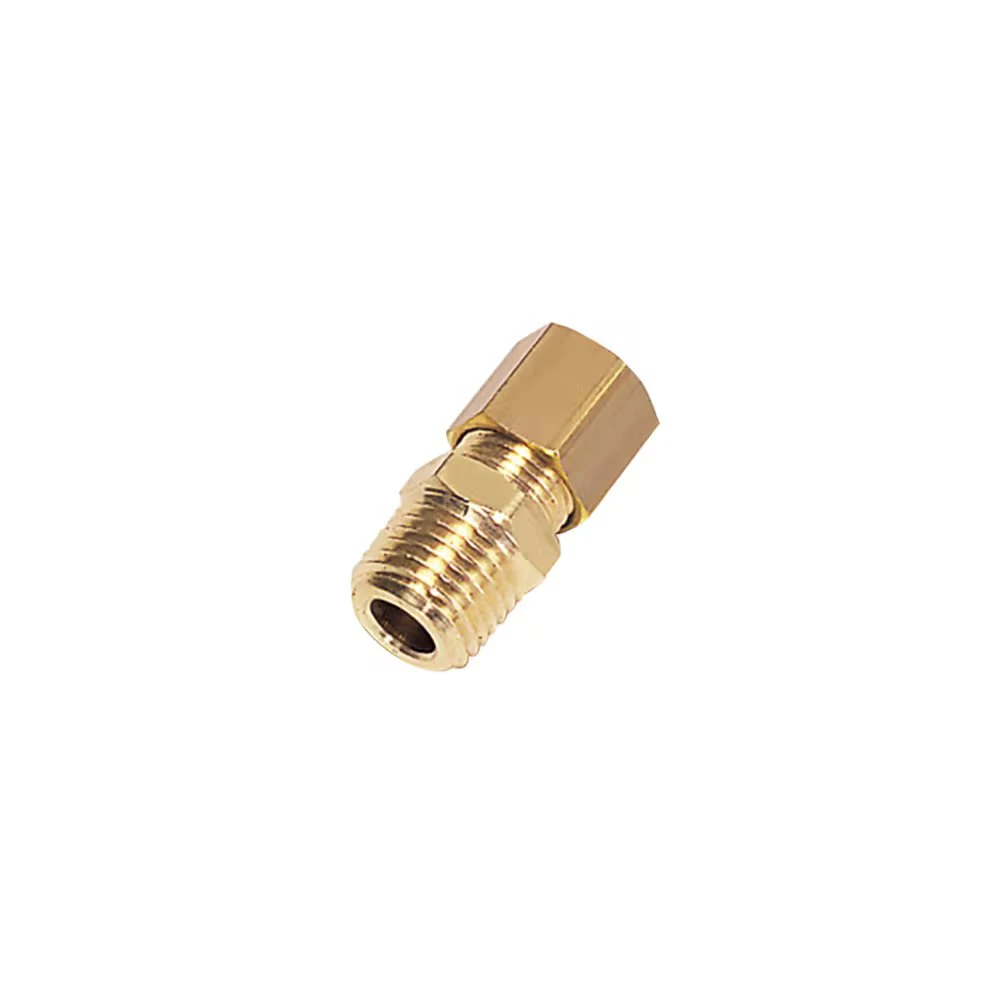

0105 28 27 By Parker | Legris Stud Fitting | 28 Mm Tube Size X 3/4″ Male BSPT Thread | 41 Mm Hex (F) | 42 Mm Hex (F1) | Straight | Brass | Pack Of 5

Original price was: $283.62.Current price is: $98.99.

SKU: AG9ZZ 14646592668018 Categories: Fittings & Clamps, Tube Fittings Tags: Created in 2024, Matrixify3rd50kProducts

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Technical Characteristics:	Compatible Fluids: Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants Working Pressure: Vacuum to 550 bar Working Temperature: -60°C to +250°C (without sealing washer, with metal tubing)
Advantages:	22 configurations Excellent sealing due to the tightening of the olive onto the tube Metallic sealing for optimum service life, pressure, and temperature ranges Connection of different types of tubing and hose: metal, polymer, steel, rubber, etc. Multiple tube diameters can be connected using the Legris reducer assembly system
Regulations:	RoHS PED REACH
Component Materials:


Part Number	ØD	C	F	F1	H (max)	H1	Kg
0105 04 10	4 mm	1/8″	10 mm	10 mm	17 mm	7 mm	.012 Kg
0105 05 10	5 mm	1/8″	11 mm	12 mm	17.5 mm	7.5 mm	.016 Kg
0105 05 13	5 mm	1/4″	14 mm	12 mm	17.5 mm	7.5 mm	.023 Kg
0105 06 10	6 mm	1/8″	11 mm	13 mm	18 mm	7.5 mm	.017 Kg
0105 06 13	6 mm	1/4″	14 mm	13 mm	18 mm	7.5 mm	.024 Kg
0105 06 17	6 mm	3/8″	17 mm	13 mm	18 mm	8.5 mm	.030 Kg
0105 08 10	8 mm	1/8″	13 mm	14 mm	19.5 mm	7 mm	.021 Kg
0105 08 13	8 mm	1/4″	14 mm	14 mm	19.5 mm	7 mm	.026 Kg
0105 08 17	8 mm	3/8″	17 mm	14 mm	20.5 mm	8 mm	.032 Kg
0105 10 10	10 mm	1/8″	17 mm	19 mm	24 mm	9 mm	.043 Kg
0105 10 13	10 mm	1/4″	17 mm	19 mm	24 mm	9 mm	.047 Kg
0105 10 17	10 mm	3/8″	17 mm	19 mm	24 mm	9 mm	.048 Kg
0105 10 21	10 mm	1/2″	22 mm	19 mm	25 mm	10 mm	.066 Kg
0105 12 13	12 mm	1/4″	19 mm	22 mm	24 mm	9 mm	.059 Kg
0105 12 17	12 mm	3/8″	19 mm	22 mm	24 mm	9 mm	.060 Kg
0105 12 21	12 mm	1/2″	22 mm	22 mm	25 mm	10 mm	.076 Kg
0105 14 13	14 mm	1/4″	22 mm	24 mm	25 mm	8 mm	.067 Kg
0105 14 17	14 mm	3/8″	22 mm	24 mm	25 mm	8 mm	.068 Kg
0105 14 21	14 mm	1/2″	22 mm	24 mm	26 mm	9 mm	.079 Kg
0105 14 27	14 mm	3/4″	27 mm	24 mm	27 mm	10 mm	.106 Kg
0105 15 17	15 mm	3/8″	22 mm	24 mm	25 mm	8 mm	.066 Kg
0105 15 21	15 mm	1/2″	22 mm	24 mm	26 mm	9 mm	.076 Kg
0105 16 13	16 mm	1/4″	24 mm	27 mm	27 mm	9.5 mm	.092 Kg
0105 16 17	16 mm	3/8″	24 mm	27 mm	27 mm	9.5 mm	.093 Kg
0105 16 21	16 mm	1/2″	24 mm	27 mm	27 mm	9.5 mm	.101 Kg
0105 16 27	18 mm	1/2″	27 mm	30 mm	30 mm	10.5 mm	.128 Kg
0105 18 21	4 mm	1/8″	10 mm	10 mm	17 mm	7 mm	.012 Kg
0105 18 27	18 mm	3/4″	27 mm	30 mm	30 mm	10.5 mm	.140 Kg
0105 20 27	20 mm	3/4″	30 mm	32 mm	32 mm	11 mm	.160 Kg
0105 22 21	22 mm	1/2″	32 mm	36 mm	33 mm	11 mm	.188 Kg
0105 22 27	22 mm	3/4″	32 mm	36 mm	33 mm	11 mm	.198 Kg
0105 22 34	22 mm	1″	36 mm	36 mm	33 mm	11 mm	.229 Kg
0105 25 27	25 mm	3/4″	36 mm	41 mm	36 mm	11 mm	.265 Kg
0105 25 34	25 mm	1″	36 mm	41 mm	36 mm	11 mm	.281 Kg
0105 28 27	28 mm	3/4″	41 mm	42 mm	36 mm	11 mm	.273 Kg
0105 28 34	28 mm	1″	41 mm	42 mm	36 mm	11 mm	.282 Kg
