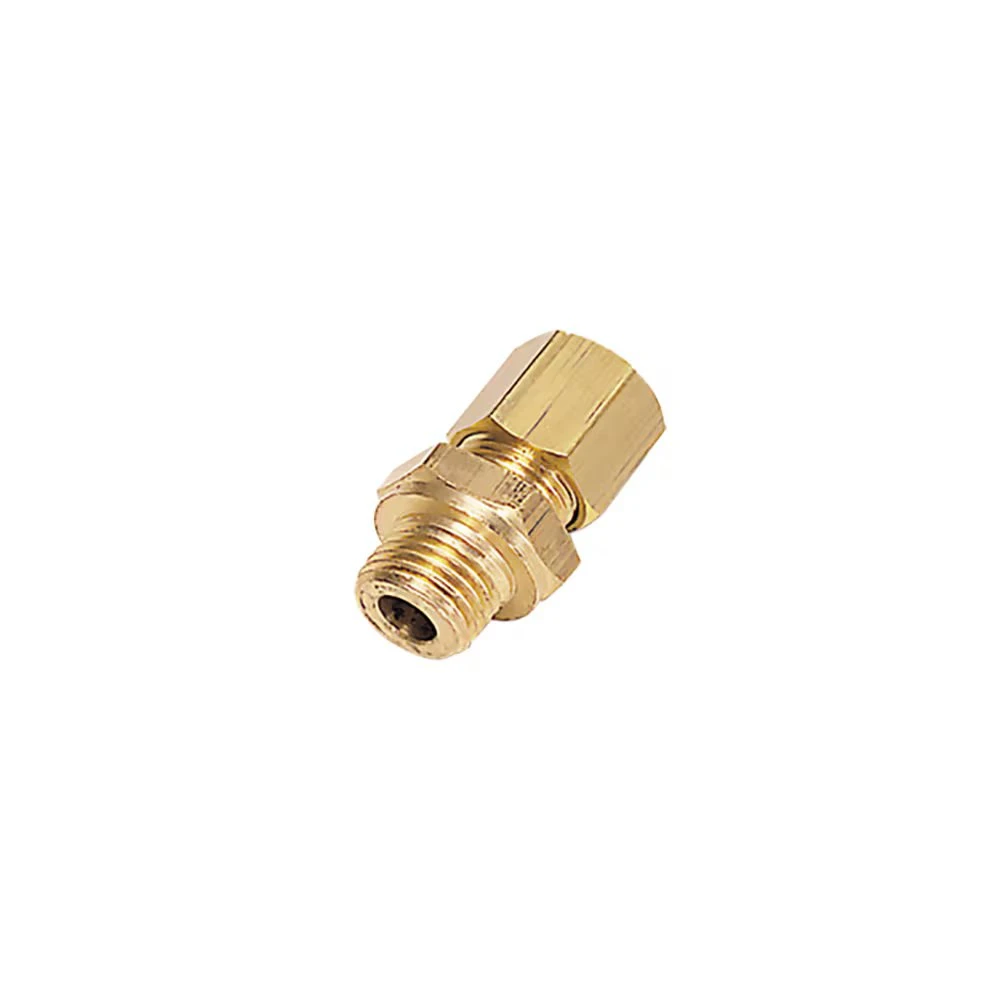

0101 10 78 By Parker | Legris Stud Fitting | 10 Mm Tube Size X M18x1.5 Male M18 Metric Thread | 22 Mm Hex (F) | 19 Mm Hex (F1) | 33 Mm Length | Straight | Brass | Pack Of 10

0101 10 78 By Parker | Legris Stud Fitting | 10 Mm Tube Size X M18x1.5 Male M18 Metric Thread | 22 Mm Hex (F) | 19 Mm Hex (F1) | 33 Mm Length | Straight | Brass | Pack Of 10

Original price was: $132.66.Current price is: $92.86.

SKU: AG9ZZ 14646594830706 Categories: Fittings & Clamps, Tube Fittings Tags: Created in 2024, Matrixify3rd50kProducts

100% Quality Satisfaction
Friendly, efficient service, always online.
7 days free returns
Safe Payments, Happy Customers

Description
Reviews (0)

Technical Characteristics:	Compatible Fluids: Water, machining oil, fuel, hydraulic oil, compressed air, chemical fluids, disinfectants Working Pressure: Vacuum to 550 bar Working Temperature: -60°C to +250°C (without sealing washer, with metal tubing)
Advantages:	22 configurations Excellent sealing due to the tightening of the olive onto the tube Metallic sealing for optimum service life, pressure, and temperature ranges Connection of different types of tubing and hose: metal, polymer, steel, rubber, etc. Multiple tube diameters can be connected using the Legris reducer assembly system
Regulations:	RoHS PED REACH
Component Materials:


Part Number	ØD	C	E	F	F1	H (max)	H1	Kg
0101 04 55	4 mm	M7x1	6.5 mm	10 mm	10 mm	16.5 mm	7.5 mm	.012 Kg
0101 04 56	4 mm	M8x1	6.5 mm	11 mm	10 mm	16.5 mm	7.5 mm	.013 Kg
0101 05 56	4 mm	M8x1	6.5 mm	11 mm	12 mm	17.5 mm	8 mm	.016 Kg
0101 05 60	4 mm	M10x1	6.5 mm	14 mm	12 mm	17.5 mm	8.5 mm	.020 Kg
0101 06 60	6 mm	M10x1	6.5 mm	14 mm	13 mm	18 mm	8.5 mm	.021 Kg
0101 06 62	6 mm	M10x1.5	6.5 mm	14 mm	13 mm	18 mm	8.5 mm	.021 Kg
0101 08 65	8 mm	M12x1	8 mm	17 mm	14 mm	19.5 mm	9 mm	.029 Kg
0101 08 66	8 mm	M12x1.25	8 mm	17 mm	14 mm	19.5 mm	9 mm	.029 Kg
0101 08 68	8 mm	M13x1.25	8 mm	17 mm	14 mm	19.5 mm	9 mm	.030 Kg
0101 10 70	10 mm	M14x1.25	8 mm	17 mm	19 mm	24 mm	11 mm	.047 Kg
0101 10 71	10 mm	M14x1.5	8 mm	17 mm	19 mm	24 mm	11 mm	.047 Kg
0101 10 74	10 mm	M16x1.25	9 mm	19 mm	19 mm	24 mm	11 mm	.052 Kg
0101 10 75	10 mm	M16x1.5	9 mm	19 mm	19 mm	24 mm	11 mm	.051 Kg
0101 10 78	10 mm	M18x1.5	9 mm	22 mm	19 mm	24 mm	11.5 mm	.059 Kg
0101 12 75	12 mm	M16x1.5	9 mm	19 mm	22 mm	24 mm	11 mm	.061 Kg
0101 12 78	12 mm	M18x1.5	9 mm	22 mm	22 mm	24 mm	11.5 mm	.070 Kg
0101 14 78	14 mm	M18x1.5	9 mm	22 mm	24 mm	25 mm	10.5 mm	.073 Kg
0101 14 80	14 mm	M20x1.5	10 mm	24 mm	24 mm	25 mm	11 mm	.084 Kg
0101 16 82	16 mm	M22x1.5	10 mm	27 mm	27 mm	27 mm	12.5 mm	.112 Kg
0101 18 82	18 mm	M22x1.5	10 mm	27 mm	30 mm	29.5 mm	12.5 mm	.131 Kg
